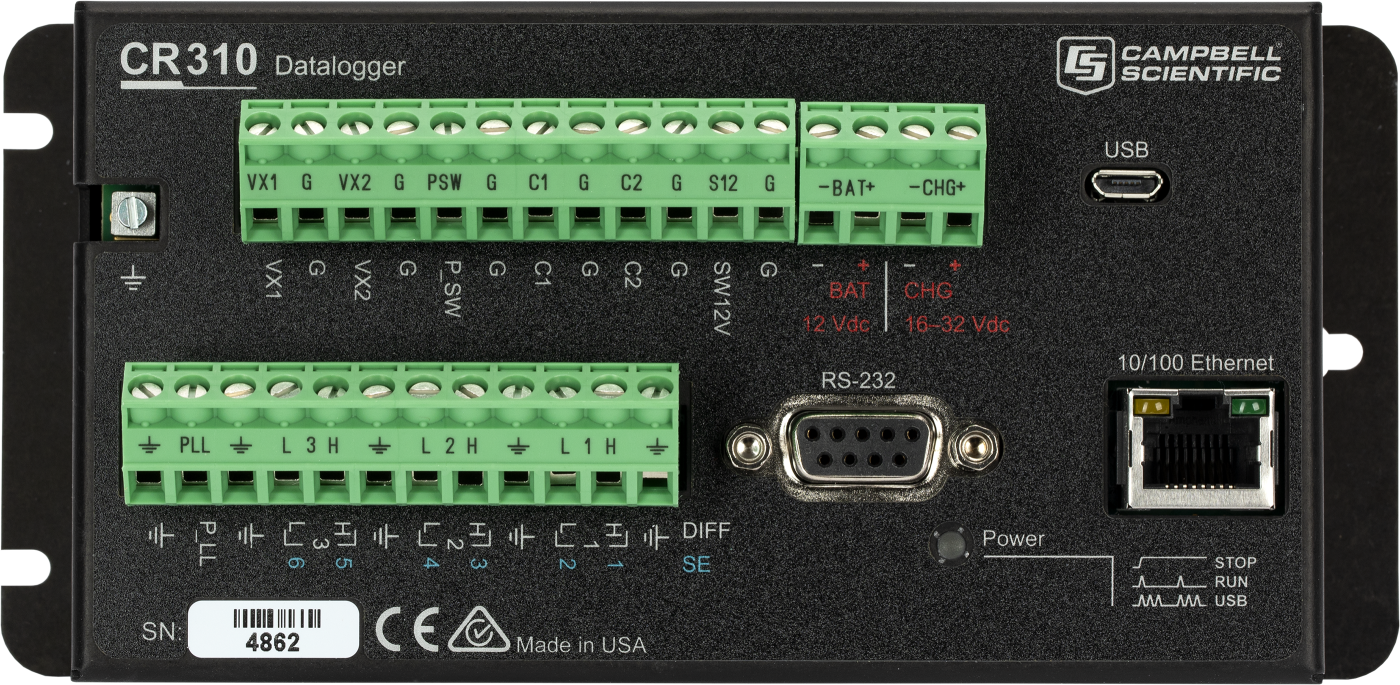

CR310

Measurement and Control Datalogger
CR310

CR310

OrderableConfigurableGSA

Measurement and Control Datalogger

Lowest cost with built-in Ethernet.

Pricing

Sign in for pricing

Configuration

Sign in for option pricing

Select a configuration to add to your quote

Model:
CR310
Item Number:
CR310
Warranty:
3 years
Lead time:
14 days

Overview

Measurement & Control Datalogger (Operating Range -40 to +70C) RoHS

The CR310 is a multi-purpose, compact, low-cost measurement and control data logger that includes an integrated 10/100 Ethernet port and removable terminal connectors. This entry-level data logger, with its rich instruction set, can measure most hydrological, meteorological, environmental, and industrial sensors. It concentrates and makes data available over varied networks, with delivery using your preferred protocol. The CR310 also performs automated on-site or remote decision-making for control and M2M communications. The CR310 is ideal for small applications requiring long-term, remote monitoring and control.

The CR310 has multiple radio options that are suitable for different regions:

  • CR310-RF407: US and Canada
  • CR310-RF412: Australia and New Zealand
  • CR310-RF422: UK and EU
  • CR310-RF427: Brazil

Note: Campbell Scientific does not recommend the CR310 for use as a PakBus router in networks with more than 50 devices. Large arrays or string variables may also reach memory limits. For such applications, a CR1000Xe Measurement and Control Datalogger is recommended.

Key Advantages

Compact Data Logger with Ethernet
Ideal for small applications

Technical Description

Terminal Descriptions

  • One switched 12 V terminal (SW12V) for powering sensors or communications devices, 1100 mA @ 20°C
  • Two sensor excitation or continuous 0.15 to 5 V terminals (VX1, VX2) for sensor excitation or output control
  • Six multipurpose analog input terminals (SE1–SE6)
    • Analog functions (SE1–SE6)
      • Analog inputs: six single-ended or three differential inputs with -100 to +2500 mV and ±34 mV ranges 24 bit ADC
      • 4 to 20 mA or 0 to 20 mA inputs (SE1, SE2 only)
    • Digital I/O functions (SE1–SE4) consist of 3.3 V logic levels for:
      • High frequency counter (35 kHz)
      • Pulse width modulation
      • Interrupts and timer input
      • Period average (200 kHz, amplitude dependent)
  • Two pulse counting terminals (P_SW, P_LL)
    • P_SW
      • Switch closure (150 Hz)
      • High frequency counter (35 kHz)
    • P_LL
      • Low level ac (20 kHz)
      • High frequency counter (20 kHz)
  • Two control terminals (C1, C2): C terminals are software configurable for digital functions.
    • Digital I/O functions consist of 5 V output and 3.3 V input logic levels for:
      • SDI-12
      • High frequency counter (3 kHz)
      • Switch closure (150 Hz)
      • General status/control
      • Voltage source 5 V: 10 mA @ 3.5 V
      • Interrupts
      • Serial asynchronous communications Tx/Rx pair

Benefits

  • Set up easily with PC software and USB connectivity
  • Measure analog and digital sensors with confidence
  • Internet ready (email, FTP, HTTP/web, TCP) with required add-ons
  • Trust in the Campbell Scientific quality, including integral surge and ESD protection
  • Save money and space using the integrated Ethernet port
  • Network wirelessly to another node or Internet gateway with integrated radio option
  • CR310-WIFI ideal for short-range, wireless IP communications
  • Wiring made easy through removable terminal block
  • Communicate from anywhere when using cellular or satellite peripheral
  • Charge batteries using the integrated 12 V battery solar charge regulator
  • Measure smart sensors using RS-232 or SDI-12
  • Connect with PakBus, Modbus, DNP3, GOES, and other standard communications protocols
  • Analyze and control with programmability and multiple general purpose I/O
  • Notify with event-driven communications and physical outputs

Specifications

-NOTE-
Additional specifications are listed in the CR300-Series Specifications Sheet.
Operating Temperature Range
-40° to +70°C

(standard)

Operating Temperature Range
Non-condensing environment
Maximum Scan Rate
10 Hz
Case Material
Powder-coated aluminum
Analog Inputs
6 single-ended or 3 differential

(individually configured)

Pulse Counters
8

(P_SW, P_LL, C1, C2, and SE1–SE4)

Voltage Excitation Terminals
2

(VX1, VX2)

Communications Ports
USB Micro B
Communications Ports
RS-232
Communications Ports
10/100 Ethernet RJ45
Switched 12 Volt
1 terminal
Digital I/O
7 terminals (C1, C2, P_SW, and SE1–SE4) configurable for digital input and output

Includes status high/low, pulse width modulation, external interrupt, and communications functions. Exception: The SE4 terminal doesn't do external interrupt.

Input Limits
-100 to +2500 mV
Analog Voltage Accuracy
Accuracy specifications do not include sensor or measurement noise.
Analog Voltage Accuracy
±(0.04% of measurement + offset) at 0° to 40°C
Analog Voltage Accuracy
±(0.1% of measurement + offset) at -40° to +70°C
ADC
24-bit
Charge Terminal Characteristics (CHG+ and CHG-)
Input from power converter or solar panel
Charge Terminal Characteristics (CHG+ and CHG-)
ES1 PS2 energy sources only

(Energy Source Class 1 [ES1] and Power Source Class 2 [PS2], as defined in Clauses 5 and 7 of IEC/AS/NZS 62368-1:2022)

Charge Terminal Characteristics (CHG+ and CHG-)
16 to 32 Vdc
Charge Terminal Characteristics (CHG+ and CHG-)
Hold current limit 1.6 A @ 20°C
Battery Terminal Characteristics (BAT+ and BAT-)
Input from external battery, 7 Ah lead-acid typical
Battery Terminal Characteristics (BAT+ and BAT-)
Voltage input 12 Vdc only
Battery Terminal Characteristics (BAT+ and BAT-)
Hold current limit 1.6 A @ 20°C
Internal Lithium Battery
3 V coin cell CR2032X for battery-backed clock
Internal Lithium Battery
6-year life with no external power source
Real-Time Clock Accuracy
±1 min. per month
Internet Protocols
Ethernet, PPP, RNDIS, ICMP/Ping, Auto-IP (APIPA), IPv4, IPv6, UDP, TCP, TLS (v1.2), DNS, DHCP, SLAAC, NTP, Telnet, HTTP(S), FTP(S), SMTP/TLS, POP3/TLS
Communications Protocols
PakBus, Modbus, DNP3, SDI-12, TCP, UDP, and others
CPU Drive/Programs
80 MB serial flash
Data Storage
30 MB serial flash
Idle Current Drain, Average
10 mA

(@ 12 Vdc with Ethernet link idle)

Active Current Drain, Average
56 mA

(@ 12 Vdc with Ethernet link active, processor always on)

Dimensions
16.26 x 7.62 x 5.68 cm

(6.4 x 3.0 x 2.2 in.)

Weight
288 to 306 g

(0.64 to 0.68 lb) depending on communications option selected

CR310-RF407 Option

Radio Type
Frequency Hopping Spread Spectrum

(FHSS)

Output Power
5 to 250 mW

(user-selectable)

Frequency
902 to 928 MHz

(US, Canada)

RF Data Rate
200 kbps
Receive Sensitivity
-101 dBm
Antenna Connector
RPSMA (external antenna required; see www.campbellsci.com/order/rf407 for Campbell Scientific antennas)
Idle Current Drain, Average
12 mA (@ 12 Vdc)
Active Current Drain, Average
< 80 mA (@ 12 Vdc)

CR310-RF412 Option

Radio Type
Frequency Hopping Spread Spectrum

(FHSS)

Output Power
5 to 250 mW

(user-selectable)

Frequency
915 to 928 MHz

(Australia, New Zealand)

RF Data Rate
200 kbps
Receive Sensitivity
-101 dBm
Antenna Connector
RPSMA (external antenna required; see www.campbellsci.com/order/rf412 for Campbell Scientific antennas)
Idle Current Drain, Average
12 mA (@ 12 Vdc)
Active Current Drain, Average
< 80 mA (@ 12 Vdc)

CR310-RF422 Option

Radio Type
868 MHz SRD 860 with Listen Before Talk (LBT) and Automatic Frequency Agility (AFA)
Output Power
2 to 25 mW

(user-selectable)

Frequency
863 to 870 MHz

(European Union)

RF Data Rate
10 kbps
Receive Sensitivity
-106 dBm
Antenna Connector
(External antenna required; see www.campbellsci.com/order/rf422 for Campbell Scientific antennas)
Idle Current Drain, Average
9.5 mA
Active Current Drain, Average
20 mA

CR310-RF427 Option

Radio Type
Frequency Hopping Spread Spectrum

(FHSS)

Output Power
5 to 250 mW

(user-selectable)

Frequency
902 to 907.5 MHz
Frequency
915 to 928 MHz

(Brazil)

RF Data Rate
200 kbps
Receive Sensitivity
-101 dBm
Antenna Connector
RPSMA

(External antenna required.)

Idle Current Drain, Average
12 mA (@ 12 Vdc)
Active Current Drain, Average
< 80 mA (@ 12 Vdc)

CR310-WIFI Option

Operational Modes
Client or Access Point
Operating Frequency
2.4 GHz, 20 MHz bandwidth
Antenna Connector
Reverse Polarity SMA

(RPSMA)

Antenna
pn 16005 unity gain (0 dBd), 1/2 wave whip, omnidirectional with articulating knuckle joint for vertical or horizontal orientation
Transmit Power
7 to 18 dBm

(5 to 63 mW)

CR310-CELL205 Option

-NOTE-
The CR310-CELL205 option is not compatible with a Verizon cellular network.
Cell Technologies
3G

(UMTS/HSPA+)

Cell Technologies
4G

(LTE CAT-1)

3G Frequency Bands
850, 1700/2100 (AWS), and 1900
4G Frequency Bands
700, 850, 1700/2100 (AWS-1), and 1900
Antenna Connector
SMA

(External antenna required; see www.campbellsci.com/order/cr310 for Campbell Scientific antennas)

SIM Interface
3FF (6 position/contacts)


Supports SIMs that require 1.8 or 3 V

CR310-CELL210 Option

-NOTE-
The CR310-CELL210 option is only compatible with a Verizon cellular network.
Cell Technologies
4G

(LTE CAT-1)

4G Frequency Bands
700, 850, 1700, 1900, and 2100
Antenna Connector
SMA

(External antenna required; see www.campbellsci.com/order/cr310 for Campbell Scientific antennas)

SIM Interface
3FF (6 position/contacts)


Supports SIMs that require 1.8 or 3 V

CR310-CELL215 Option

-NOTE-
The CR310-CELL215 option is intended for use in EMEA countries.
Cell Technologies
2G

(GSM/GPRS/EDGE)

Cell Technologies
3G

(UMTS/HSPA+)

Cell Technologies
4G

(LTE CAT-1)

2G Frequency Bands
900 and 1800 MHz
3G Frequency Bands
850, 900, and 2100 MHz
4G Frequency Bands
800, 850, 900, 1800, 2100, and 2600 MHz
Antenna Connector
SMA

(External antenna required; see www.campbellsci.com/order/cr310 for Campbell Scientific antennas)

SIM Interface
3FF (6 position/contacts)


Supports SIMs that require 1.8 or 3 V

CR310-CELL220 Option

-NOTE-
The CR310-CELL220 option is intended for use in Australia and New Zealand.
Cell Technologies
3G

(UMTS/HSPA+)

Cell Technologies
4G

(LTE CAT-1)

3G Frequency Bands
850 and 2100 MHz

(EC-21AUT)

3G Frequency Bands
850, 900, 1900, and 2100 MHz

(EC-21AU)

4G Frequency Bands
700, 850, 1800, 2100, and 2600 MHz

(EC-21AUT)

4G Frequency Bands
700, 900, 1700, 1800, 1900, 2100, and 2600 MHz

(EC-21AU)

Antenna Connector
SMA

(External antenna required; see www.campbellsci.com/order/cr310 for Campbell Scientific antennas)

SIM Interface
3FF (6 position/contacts)


Supports SIMs that require 1.8 or 3 V

CR310-CELL225 Option

-NOTE-
The CR310-CELL225 option is intended for use in Japan.
Cell Technologies
4G

(LTE CAT-1)

4G Frequency Bands
800 (lower), 800 (upper), 850+, 900, 1800, and 2100 MHz
Antenna Connector
SMA

(External antenna required; see www.campbellsci.com/order/cr310 for Campbell Scientific antennas)

SIM Interface
3FF (6 position/contacts)


Supports SIMs that require 1.8 or 3 V

Ships With

(7)
  • QuickStart URL Card
  • 505
    OrderableQty 3
  • 6044
    OrderableQty 3
  • 27555
    Orderable
  • 8125
    Orderable
  • 3315
    Orderable
  • 16005

    2.4 GHz 0 dBd Omnidirectional ½ Wave Whip Antenna (-WIFI option only)

    Orderable
