16005

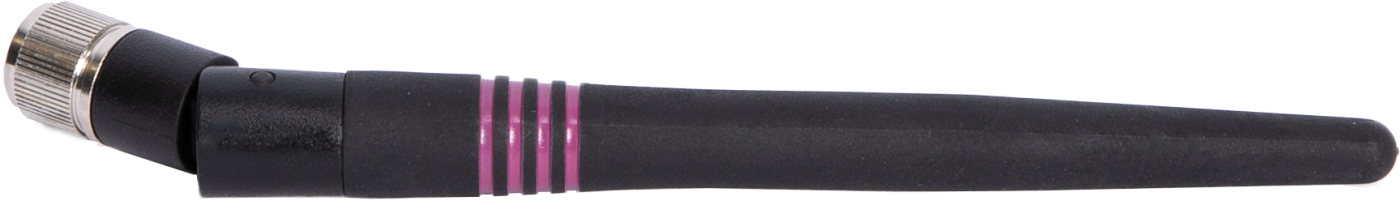

2.4 GHz 0 dBd Omnidirectional 1/2 Wave Whip Antenna
16005
Orderable2.4 GHz 0 dBd Omnidirectional 1/2 Wave Whip Antenna
Overview
ANT 2.4GHz 2.2dB Omni 1/2 Wave Whip Swivel Type RPSMA Male
The 16005 is a unity gain (0 dBd), 1/2 wave whip, omnidirectional antenna that can be used with our 2.4 GHz radio products with RPSMA antenna connectors. It features an articulating knuckle joint for easy orientation, weatherized jacket for outdoor applications, and internal counterpoise for ground plane independence.
Key Advantages
Features an Articulating Knuckle Joint
Technical Description
The 16005 attaches directly to a 2.4 GHz spread spectrum transceiver; an antenna cable is not needed. It has a right-angle knuckle joint that can be oriented vertically or at right angles.
Specifications
- FCC Part 15 Compliant Type
- 1/2 wave, dipole with articulating base
- Connector
- Reverse Polarity SMA (RPSMA) female
- Center Frequency
- 2.4 GHz
- Bandwidth
- 120 MHz
- Wavelength
- 1/2 wave
- VSWR
- < 1.9 typical
(at center frequency)
- Impedance
- 50 ohm
- Diameter
- 1.0 cm
(0.4 in.) at base
- Length
- 11.5 cm
(4.5 in.)
- Weight
- 11.0 g
(0.4 oz)
