14201

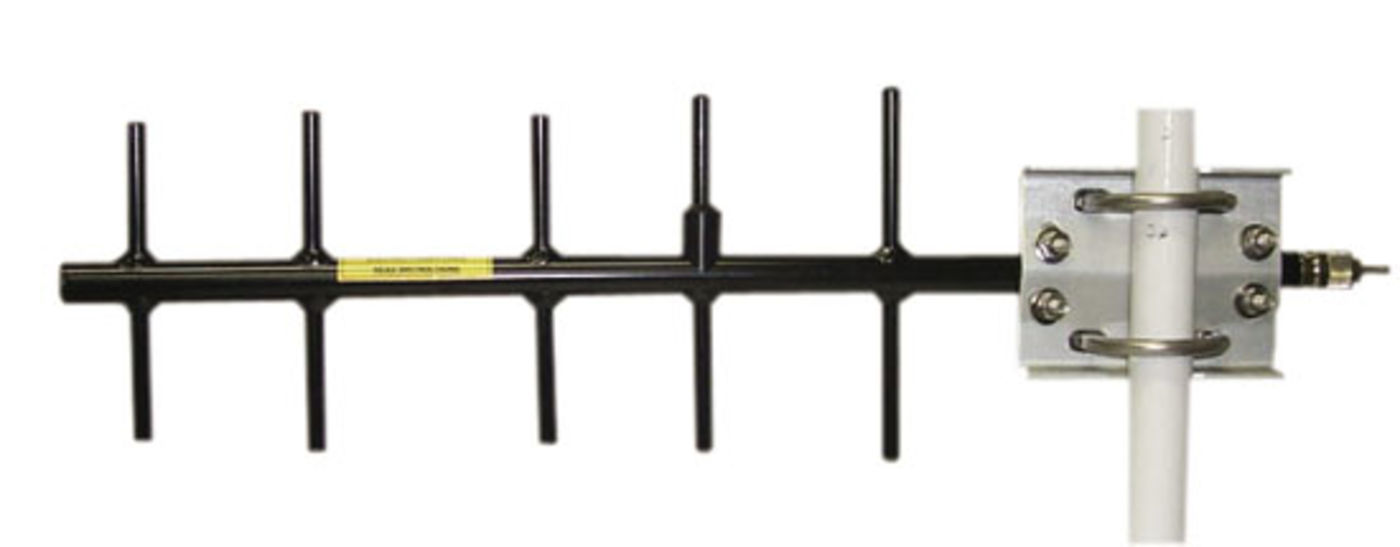

The 14201 is a high-gain (9 dBd), directional (Yagi) antenna. It is useful for making RF links over longer distances in one direction. This antenna is typically used with sub-315 mW radios such as the RF401A. The 14201 requires an antenna cable to connect it to the spread-spectrum transceiver. (See the Compatibility information for cable options.)

The 14201 is a high-gain, Yagi antenna used with our 900 MHz spread spectrum transceivers. This outdoor antenna has a narrow beam width that requires precise aiming. It should be used to communicate with one distant station. The 14201 requires an antenna cable to connect it to the spread spectrum transceiver. (See the Compatibility information for cable options.)

Note: Because the FCC limits the EIRP of 900 MHz spread-spectrum radios to 36 dBm, using this antenna with an RF450- or RF451-based system requires the user to reduce the radio's transmit power to a setting of 5 or less.
