32256

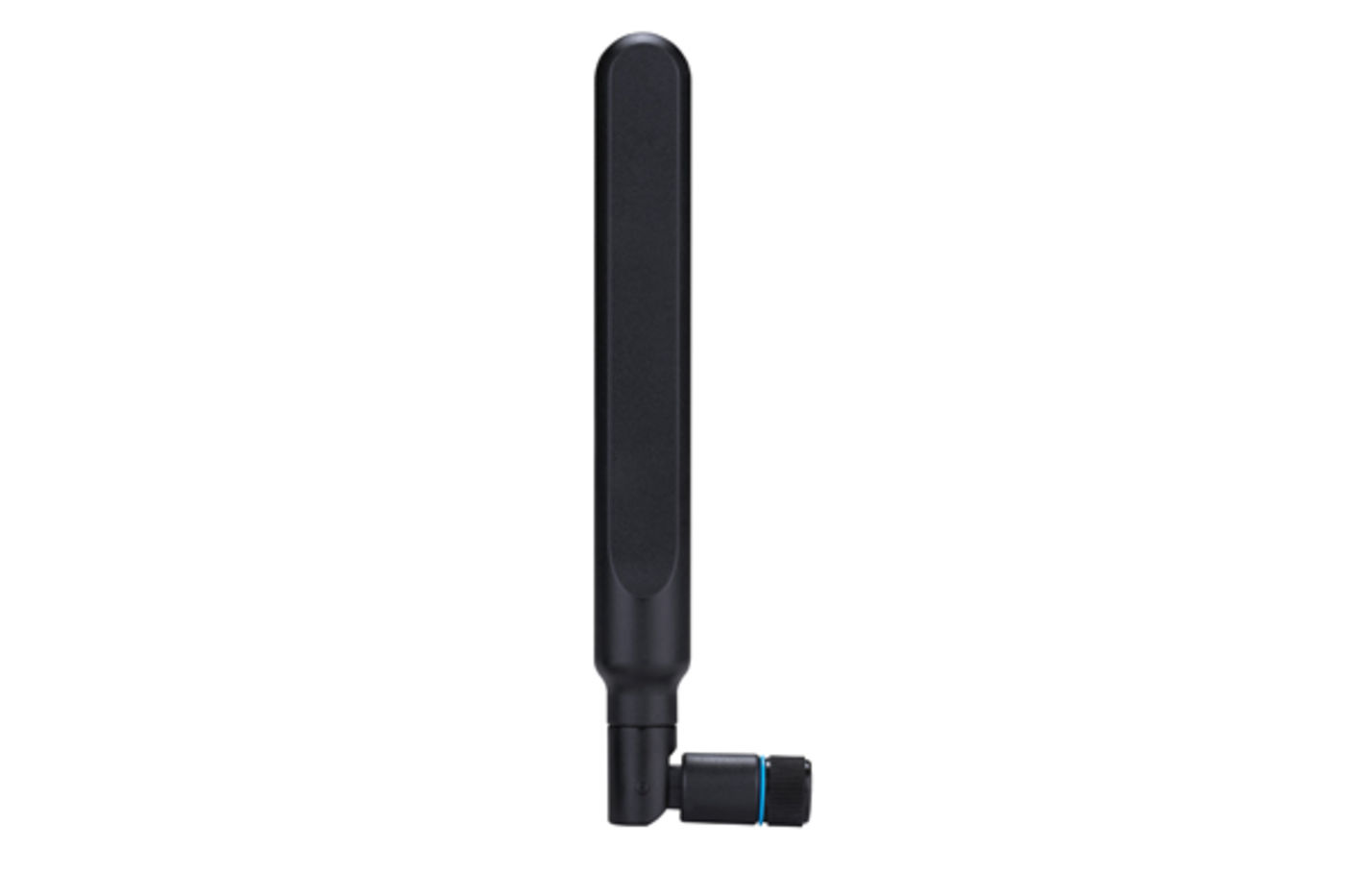

4G/3G Cellular Whip Antenna with SMA Connector
32256
Orderable4G/3G Cellular Whip Antenna with SMA Connector
Overview
ANT Cellular 2G/3G/4G Omni Dipole Whip Swivel Type SMA
The 32256 is a wide-band termination antenna with SMA connector and articulating base. It has a high-efficiency response on nearly all 4G, 3G, and 2G frequency bands and is, therefore, primarily used with cellular gateways and routers, such as the RavenXTV or RV50. This small, low-cost antenna is typically used in applications where antenna gain is not required to maintain a strong cellular link. For a cellular product that offers both primary and diversity antenna connections (such as the RV50), use two of these antennas.
Specifications
- Frequency
- 700 to 800 MHz
- Frequency
- 824 to 960 MHz
- Frequency
- 1574.42 MHz
- Frequency
- 1710 to 1880 MHz
- Frequency
- 1850 to 1990 MHz
- Frequency
- 1710 to 2170 MHz
- Frequency
- 2400 to 2500 MHz
- Radiation Pattern
- Omnidirectional
- Connector
- SMA plug
- Polarization
- Linear
- Impedance
- 50 ohm
- Maximum Input Power
- 5 W
- Temperature Range
- -40° to +85°C
- Humidity
- Non-condensing 65°C 95% RH
- Recommended Torque for Mounting
- 0.9 N*m
- Diameter
- 13 mm
(0.51 in.)
- Dimensions
- 168 x 18 x 13 mm
(6.6 x 0.71 x 0.51 in.)
- Weight
- 24 g
(0.85 oz)
