16755

The 16755 is a high-gain (13 dBd), directional (Yagi) antenna used with our 2.4 GHz radio transceivers. It is intended for longer distances, and for communicating to one other station (due to narrow beam width).

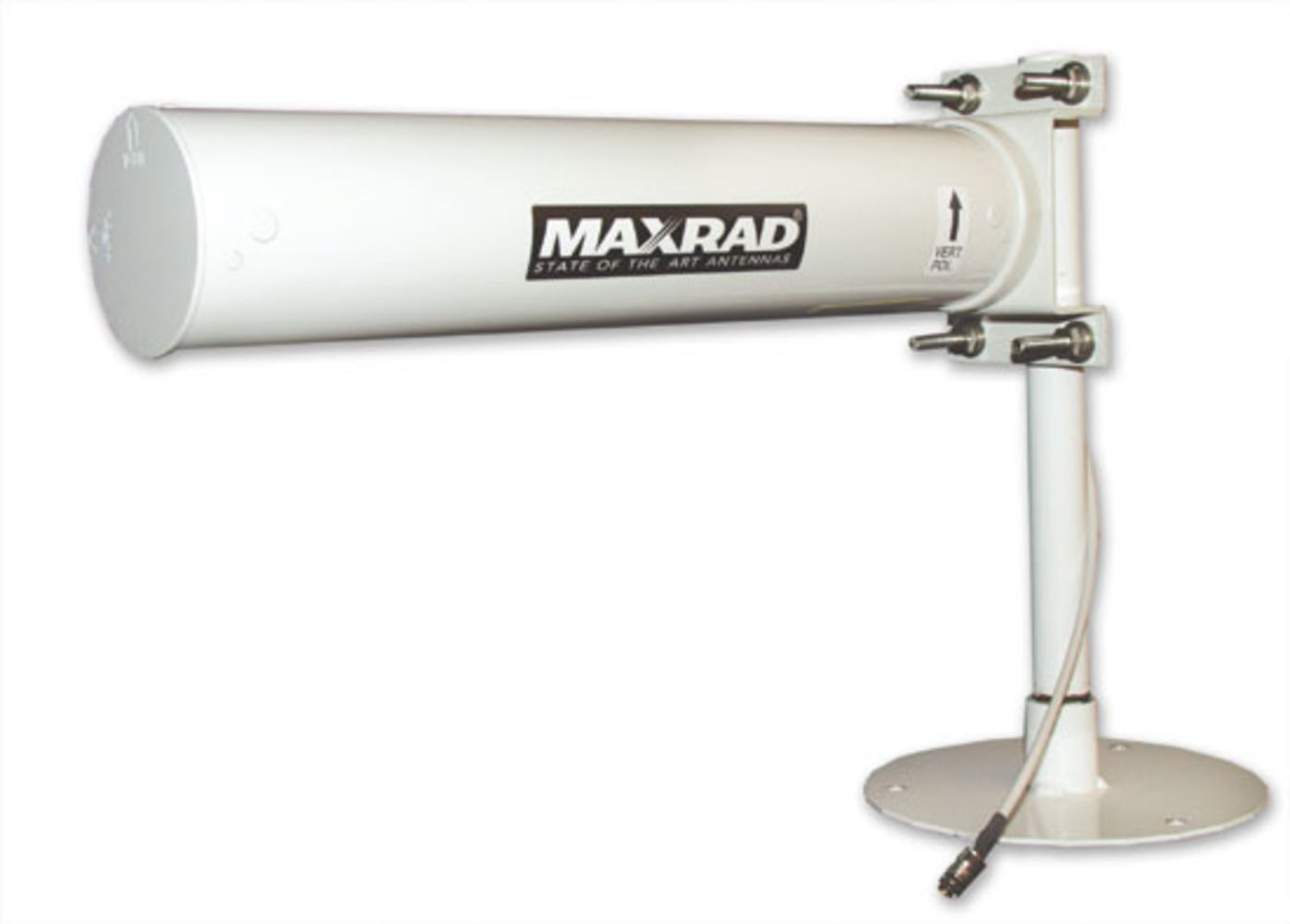

Note: In the image, the antenna is mounted to a stand, which is sold separately.

The 16755 is a high-gain, Yagi antenna used with our 2.4 GHz spread spectrum transceivers. This outdoor antenna has a narrow beam width that requires precise aiming. It should be used to communicate with one distant station.

The 16755 requires an antenna cable to connect it to the transceiver. The COAXRPSMA is recommended for applications where the cable length is less than 10 ft. The COAXNTN cable requires the 31314 surge protection kit to connect it to the transceiver. The COAXNTN/31314 combination is recommended over the COAXRPSMA when the antenna cable will be longer than 10 ft (as measured between the transceiver and the antenna) or when the transceiver will be used in an environment susceptible to lightning or electrostatic buildup.
