Orderable900 MHz 0 dBd 1/2 Wave Omnidirectional Antenna with RPSMA Connector
Overview
The 14204 is a 0 dBd gain 1/2 wave antenna with a pin (male) RPSMA (reverse polarity SMA) connector and articulating base. It is designed for use with radios operating at 900 to 930 MHz. It is typically used with one of our 900 MHz radio products with an RPSMA antenna jack, such as the RF401A. This small, low-cost antenna is typically used in applications where space is constrained and antenna gain is not required to maintain a strong RF link.
Note: The yellow stripes on the antenna indicate that this antenna operates with a center frequency of 916 MHz.
Technical Description

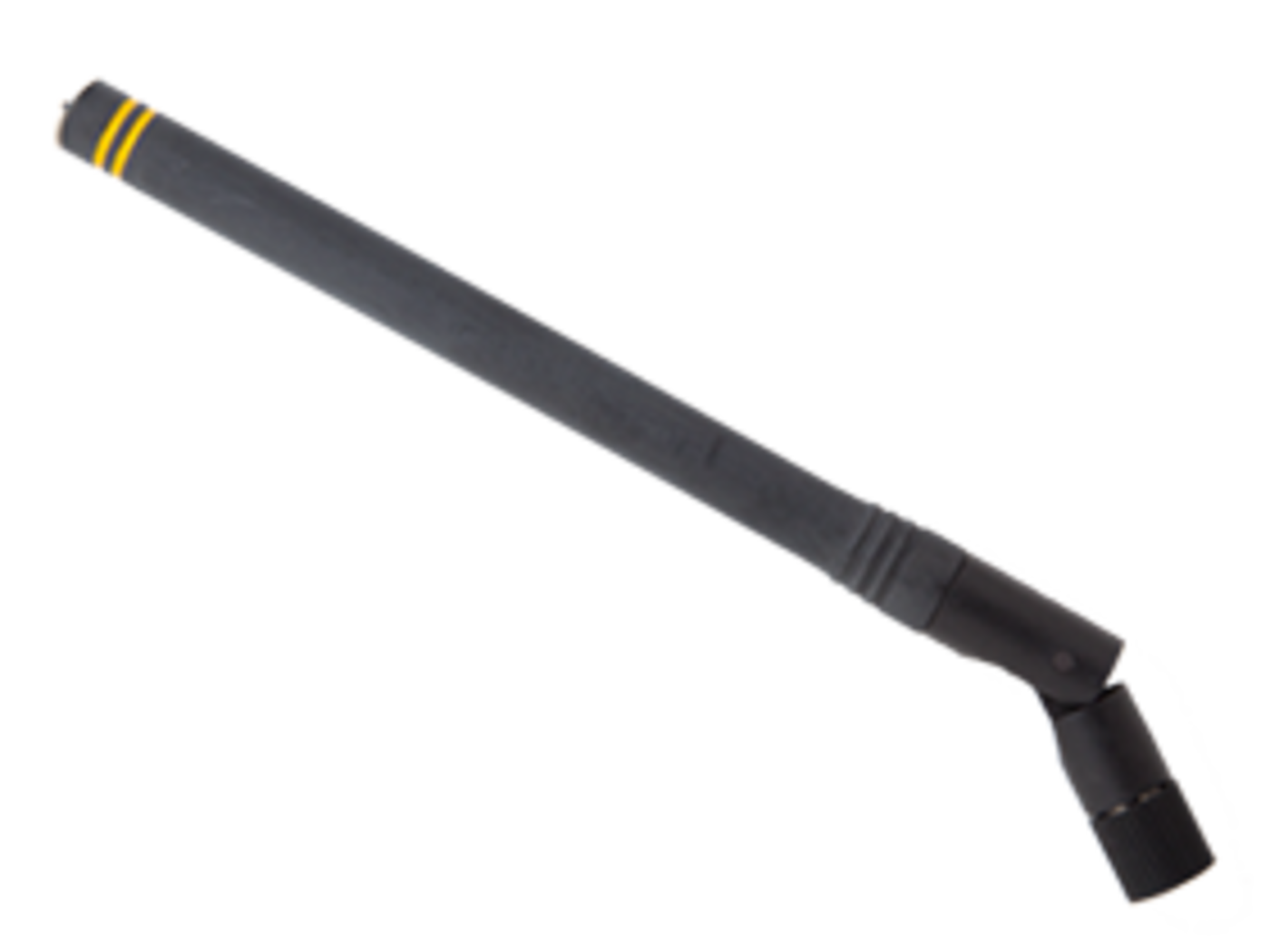

The 14204 is a 0 dBd gain 1/2 wave center-fed dipole antenna with a pin (male) RPSMA (reverse polarity SMA) connector. It has an omnidirectional radiation pattern and a center frequency of 916 MHz. The articulating base allows the antenna to tilt 90 degrees and rotate 360 degrees. The antenna’s internal counterpoise eliminates external ground plane dependence. The internal O-ring seal on the connector improves the antenna's ruggedness when used in harsh conditions.
Note: The yellow stripes on the antenna indicate that this antenna operates with a center frequency of 916 MHz.
Specifications
- -NOTE-
- Electrical specifications measured with 10.16 cm x 10.16 cm (4 in. x 4 in.) reference ground plane.
- Connector
- Pin (male) RPSMA
- Center Frequency
- 916 MHz
- Frequency Range
- 900 to 930 MHz
- Gain
- 0 dBd
- Wavelength
- 1/2 wave dipole
- VSWR
- < 2.0 typical at center
- Impedance
- 50 ohm
- Operating Temperature Range
- -30° to +80°C
- Maximum Diameter
- 10.0 mm
(0.39 in.)
- Length when Straight
- 142 mm
(5.59 in.)
- Length when 90°
- 121 mm
(4.76 in.)
- Weight
- 22.7 g
(0.05 lb)
