Orderable900 MHz 0 dBd 1/4 Wave Omnidirectional Antenna with RPSMA Connector
Overview
The 15730 is a 900 MHz, unity gain (0 dBd), 1/4 wave whip, right-angle antenna. The 15730 is an omnidirectional antenna that attaches directly to the product (no cables). It should be used inside an enclosure or building.

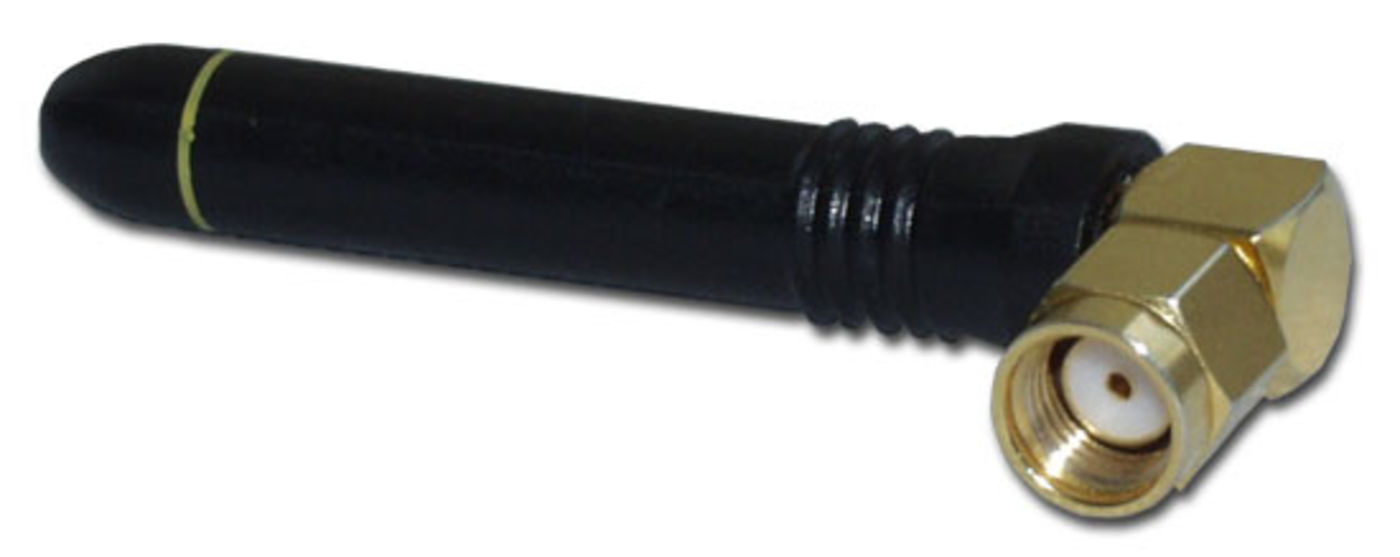

Note: The yellow stripe on the antenna indicates that this antenna operates with a center frequency of 916 MHz.
Technical Description
The 15730 attaches directly to a 900 MHz spread-spectrum transceiver that has an RPSMA connector; an antenna cable is not needed. This unity gain, omnidirectional antenna should be used inside an enclosure or building.
Note: The yellow stripe on the antenna indicates that this antenna operates with a center frequency of 916 MHz.
Specifications
- Antenna Type
- 1/4 wave whip, indoor antenna, right angle
- Frequency Band Supported
- 900 MHz
(886 to 946 MHz)
- Gain
- 1.16 dBd (3.3 dbi) maximum, typically no gain without associated ground plane
- Connector
- Reverse Polarity SMA (RPSMA) socket (female)
- Manufacturer's Model Name
- LINX ANT-916-CW-RCS
- Diameter
- 9.4 mm
(0.37 in.) maximum
- Length
- 53.5 mm
(2.11 in.)
- Weight
- 8.2 g
(0.3 oz)
