1.67 A 24 Vdc Power Supply
39177

39177

OrderableConfigurable

1.67 A 24 Vdc Power Supply

Pricing

Sign in for pricing

Configuration

Sign in for option pricing

Select a configuration to add to your quote

Model:
39177
Item Number:
39177
Lead time:
21 days

Overview

Power Supply 24Vdc 1.67A w/Universal Inputs 100-240Vac, 50-60Hz, 1.5m (5ft) Cable, -40 to 40C

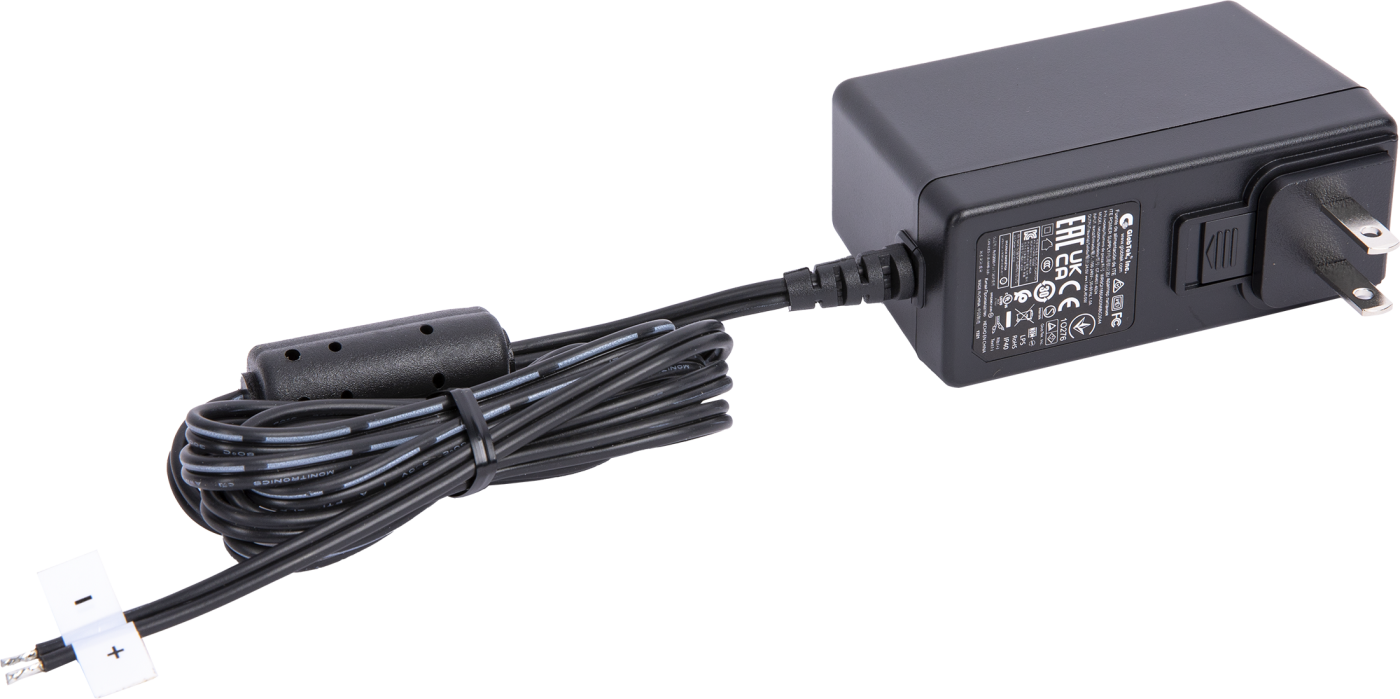

The 39177 converts 100 to 240 Vac to a regulated 24 Vdc. The 39177 comes standard with a USA/Canada plug, with an option to add a kit for international use. On one end, the 39177 has a plug that inserts into a wall socket. There are several cable termination options for the other end of the cable.

Note: When the 39177 is used as a power source for the CH200, PS200, or CH201, the charge controller needs to be configured to match the incoming current so it doesn't trip the over-current protection of the 39177.

Benefits

  • Auto-recovery upon removal of fault
  • Optional prewire connection for quick, secure connection to Campbell Scientific prewired enclosures

Specifications

Temperature Range
-40° to +40°C
Input Voltage
100 to 240 Vac
Input Frequency
47 to 63 Hz
Output Voltage
24 Vdc
Maximum Output Current
1.67 A
Standards
UL60950-1 2nd Edition
Cable Length
1.52 m

(5 ft)

Dimensions
8.89 x 5.72 x 3.81 cm

(3.5 x 2.25 x 1.5 in.)

Weight
272.16 g

(0.6 lb)
