10873

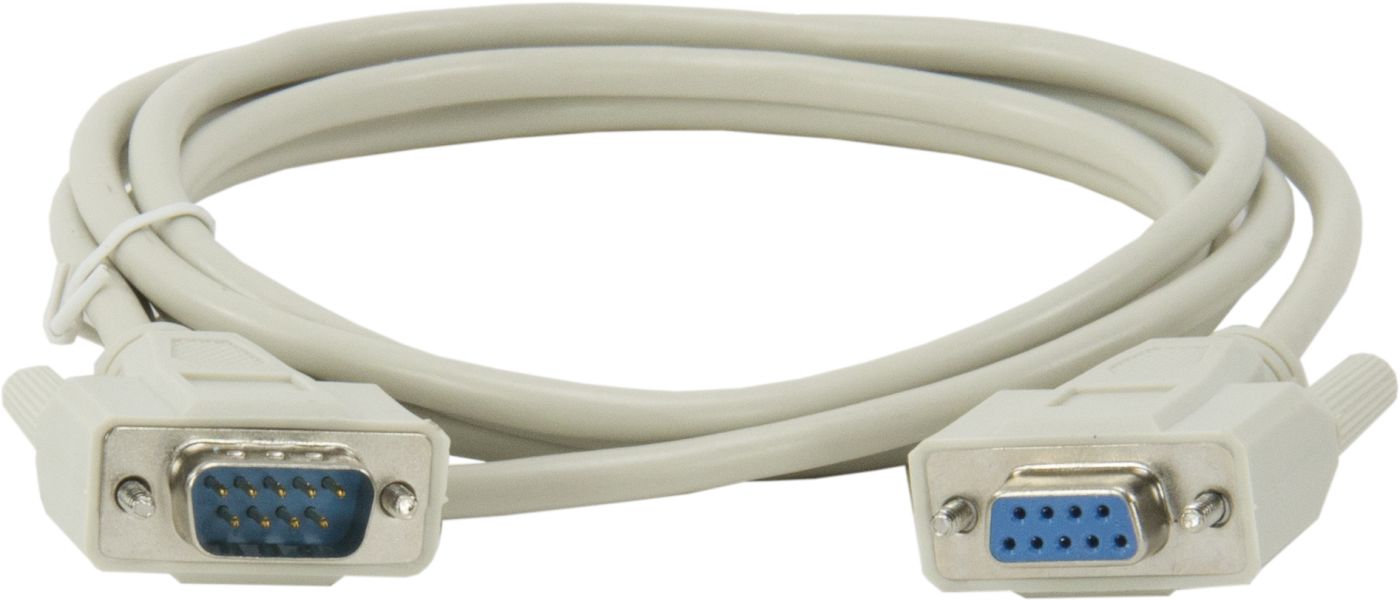

Serial Data Cable, 9-Pin Socket (Female) to 9-Pin Pin (Male)
10873
OrderableSerial Data Cable, 9-Pin Socket (Female) to 9-Pin Pin (Male)
Overview
CABLE DATA RS-232 DB9 Female to Male, 1.8m (6ft)
The 10873 is a serial cable that is useful for connecting the RS-232 port of the data logger to the 9-pin RS-232 port of a computer. The cable is six feet long.
Technical Description
The 10873 can connect the data logger's RS-232 port to a PC's serial port. This cable is compatible with any data logger that has an RS-232 port (most newer data loggers).
Besides connecting to the data logger's RS-232 port, the 10873 can connect other devices to the PC's 9-pin serial port. Examples include our RF400-series radios, TDR100 Reflectometer, DMM600 Duff Moisture Meter, and various interfaces such as our NL201, NL241, NL100, AVW200 series, MD485, SC32B, and SDS511.
Benefits
- Connects a computer's 9-pin serial port to another device with a 9-pin RS-232 serial port
- Commonly used with CR1000, CR3000, CR800, CR850, CR300-series, and CR200-series dataloggers
Specifications
- Connectors
- 9-pin socket (female) and 9-pin pin (male)
- Cable Type
- Serial data cable
- Length
- 182.9 cm
(72.0 in.)
- Weight
- 136 g
(5 oz)
