31128

Name: 31128
Brand: Campbell Scientific
SKU: 31128
Availability: Discontinued

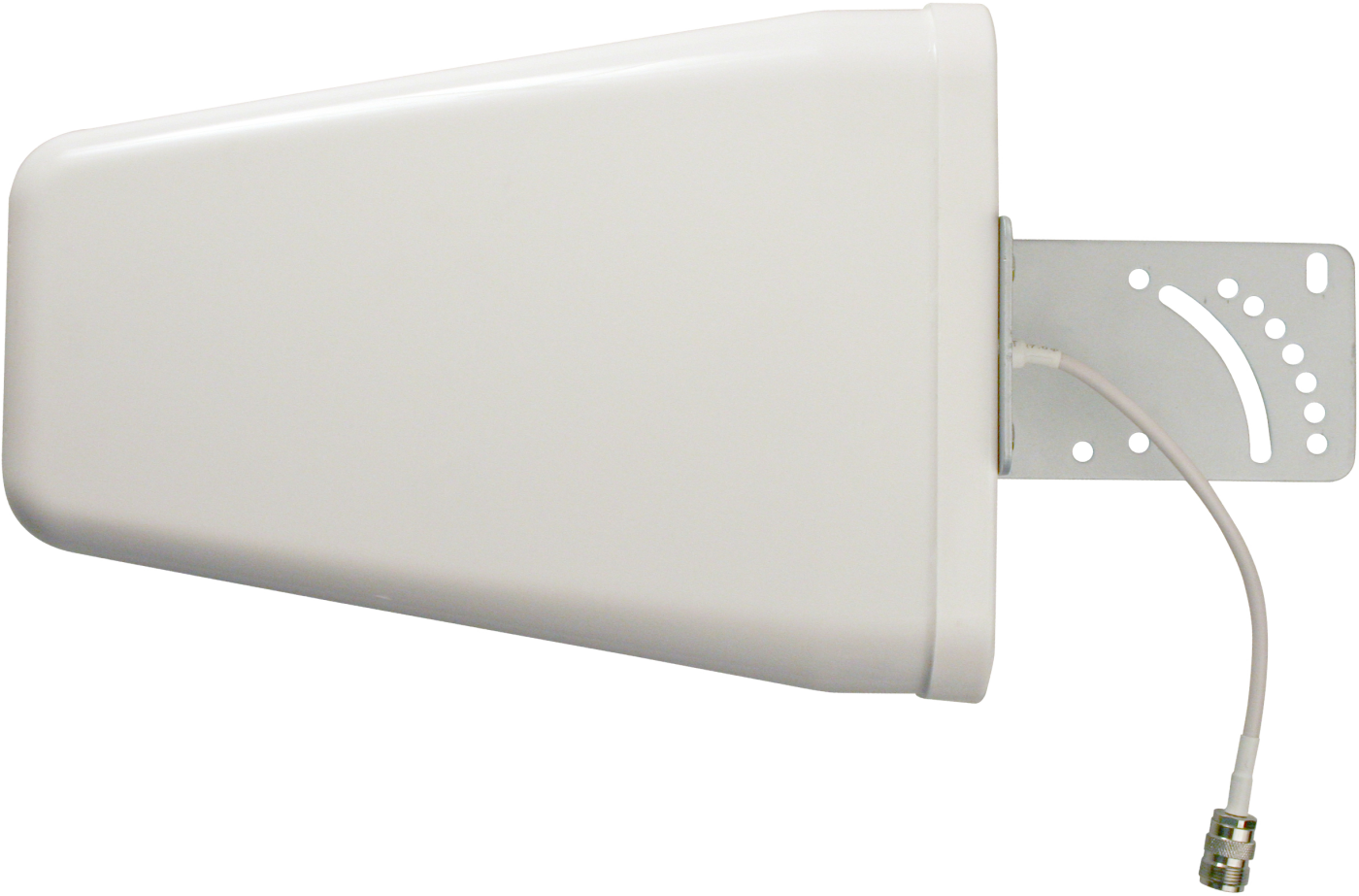

8 dBd Yagi Wideband Antenna with Mounting Hardware

31128

Retired

8 dBd Yagi Wideband Antenna with Mounting Hardware

Pricing

Model:: 31128
Item Number:: 31128
Warranty:: 90 days

Overview

ANT Wideband 8dBd YAGI Antenna w/Type N Female & Mounting Hardware

The 31128 is a wideband Yagi directional antenna. It is uniquely suited for cellular applications because of its ability to provide gain across all of the cellular frequency bands. The antenna has a Type N Female connector and includes the mounting hardware.

Technical Description

The 31128 is a high-gain, directional, Yagi antenna. Its narrow beam width requires precise aiming. This antenna is for fixed installations. It is not intended for mobile applications. For more information, refer to this full-color gain plot.

Specifications

Antenna Type: Yagi, directional, dc grounded
Gain: 5.8 dBd
(700 to 800 MHz)
Gain: 5.8 dBd
(824 to 894 MHz)
Gain: 4.8 dBd
(880 to 960 MHz)
Gain: 6.8 dBd
(1710 to 1880 MHz)
Gain: 8.3 dBd
(1850 to 1990 MHz)
Gain: 7.8 dBd
(1990 to 2700 MHz)
Average SWR: 1.6:1
(700 to 800 MHz)
Average SWR: 1.4:1
(824 to 894 MHz)
Average SWR: 1.3:1
(880 to 960 MHz)
Average SWR: 1.2:1
(1710 to 1880 MHz)
Average SWR: 1.2:1
(1850 to 1990 MHz)
Average SWR: 1.2:1
(1990 to 2700 MHz)
Impedance: 50 ohm
Horizontal Beam Width: 70° to 90°
Vertical Beam Width: 85° to 110°
Front/Back Ratio: > 20 dB
Maximum Power: 100 W
Polarization: Vertical
Connector: Type N female
Temperature: -40° to +158°F
Wind Surface Area: < 465 cm²
(0.5 ft²)
Mounting: 3.18 to 5.08 cm (1.25 to 2 in.) OD pipe
Dimensions: 29.01 x 21.01 x 6.50 cm
(11.42 x 8.27 x 2.56 in.)
Weight: 1.50 kg
(3.31 lb)
