RF427

Name: RF427
Brand: Campbell Scientific
SKU: 32704
Availability: InStock

905 MHz + 920 MHz Spread-Spectrum Radio

RF427

Orderable

905 MHz + 920 MHz Spread-Spectrum Radio

Pricing

Qty

Model:: RF427
Item Number:: 32704
Warranty:: 1 year

Overview

RF427 905MHz + 920MHz Spread Spectrum Radio for use in Brazil (-40 to +70C) (Ships as 32703, 16675 & 17648)

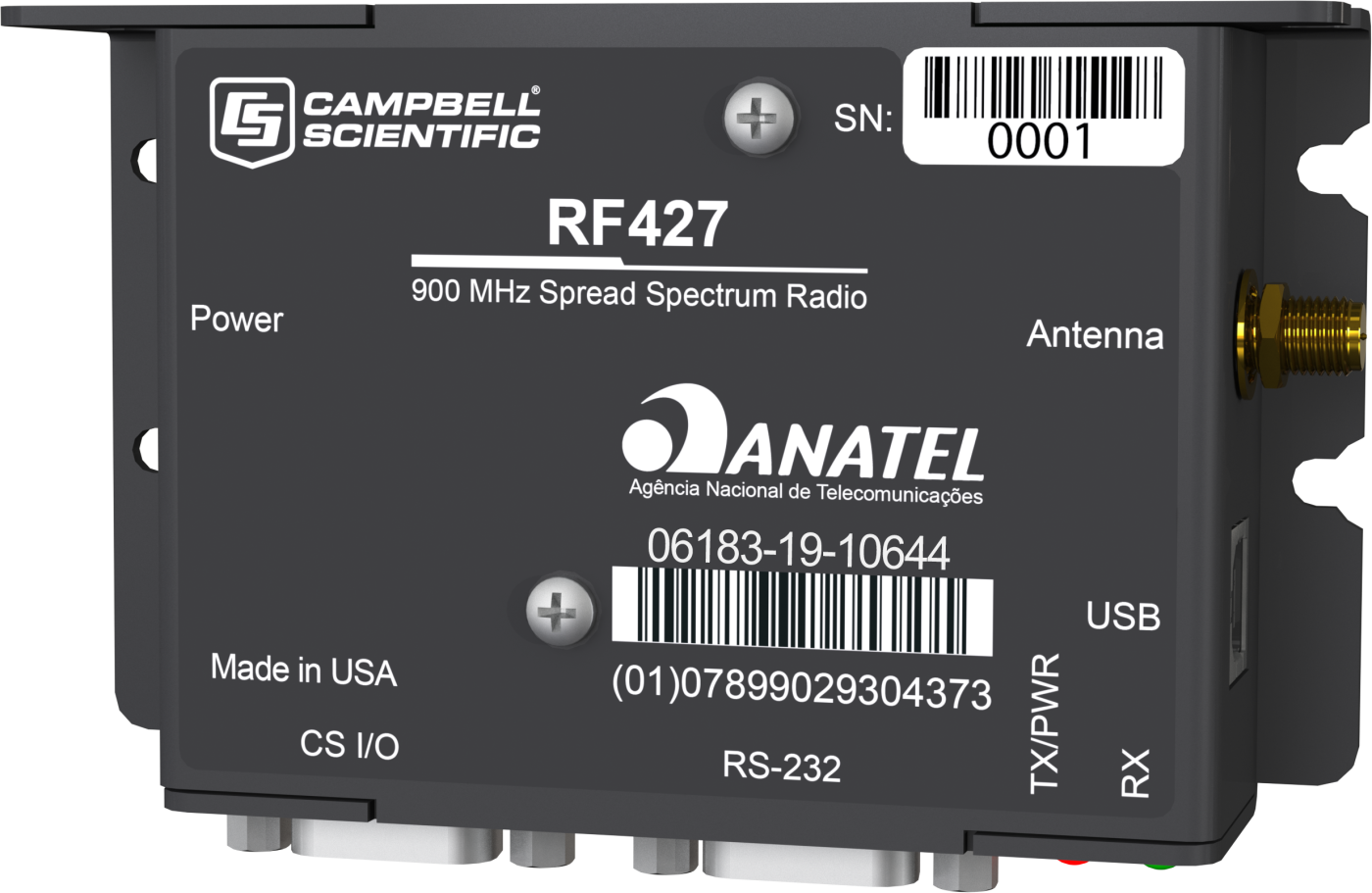

The RF427 is a high-speed 900 MHz serial radio designed for unlicensed operation in Brazil. The RF427 is a frequency-hopping spread-spectrum radio with a configurable transmit-power output of 5 to 250 mW and user-selectable channel masking for improved RF interference immunity. This power-sipping, yet speedy, radio provides a cost-effective way to network data loggers.

The RF427 is part of the RF407 series of radios that includes:

RF407: North America (FCC & IC), 902 to 928 MHz
RF412: Australia (ACMA RCM), 915 to 928 MHz
RF422: Most of Europe and some of Asia (ETSI), 863 to 873 MHz
RF427: Brazil (ANATEL), 905/920 MHz

Benefits

Does not require individual operational license in Brazil
High-speed serial communication, optimized for PakBus networks
Low power (< 2 mA idle) during periods of inactivity
Supports point-to-point with RF retries and point-to-multipoint operations
Remote diagnostics using PakBus node operations

Specifications

Radio Type: Frequency Hopping Spread Spectrum (FHSS)
Frequency: 905/920 MHz
Country Used In: Brazil
Transmission Distance: -Note- Transmission distance assumes line-of-sight and appropriate antenna. Line-of-sight obstructions, RF interference, and antenna type will affect transmission distance.
Transmission Distance: Up to 1.61 km (1 mi) with omnidirectional antenna; up to 16.09 km (10 mi) with higher-gain directional antennas at ideal conditions
Power Output: 5 to 250 mW
(user-selectable)
Receiver Sensitivity: -101 dBm
Channel Capacity: Eight 25-channel hop sequences sharing 43 available channels
Data Rate: 200 kbps
Link Throughput: 105 kbps
(maximum)
Antenna Connector: Reverse Polarity SMA (RPSMA) jack
LEDs: Red TX/PWR and green RX
RS-232 Baud Rate: 1200 to 115200 bps
CS I/O Modes: SDC 7, 8, 10, 11, and ME master
Operating Temperature Range: -40° to +70°C
Power: 9 to 16 Vdc
Power Connector: 2.5 mm DC power jack
Powered Over: CS I/O or barrel plug
Maximum Nodes in Network: 50
Current Required: Average Transmit: < 80 mA
(250 mW TX Power)
Current Required: Receive: 15 mA
Current Required: Sleep: 0.5 mA
(depending on power-saving mode)
Communication Ports: RS-232 9-pin D female
Communication Ports: CS I/O 9-pin D male
Communication Ports: USB Type B jack
Dimensions: 11.1 x 6.9 x 2.7 cm
(4.4 x 2.7 x 1.1 in.)
Dimension are from the tip of the antenna connector to the other side of the case, and from the bottom of the case to the top of the DB9 connector jack screw. The width includes the thickness of the screw heads on the screws that hold the case together.
Weight: 136 g
(4.8 oz) without "Ships With" items
Weight: 283.5 g
(10 oz) with "Ships With" items
