OrderableConfigurableGSARG8 Antenna Cable with 2 Type N Pin (Male) Connectors
Pricing
Configuration
Sign in for option pricing- ConnectorCOAXNTN-3m
- ConnectorCOAXNTN-5m
- ConnectorCOAXNTN-10m
- ConnectorCOAXNTN-15m
Select a configuration to add to your quote
- Model:
- COAXNTN
- Item Number:
- COAXNTN
- Warranty:
- 1 year
- Lead time:
- 14 days
Overview

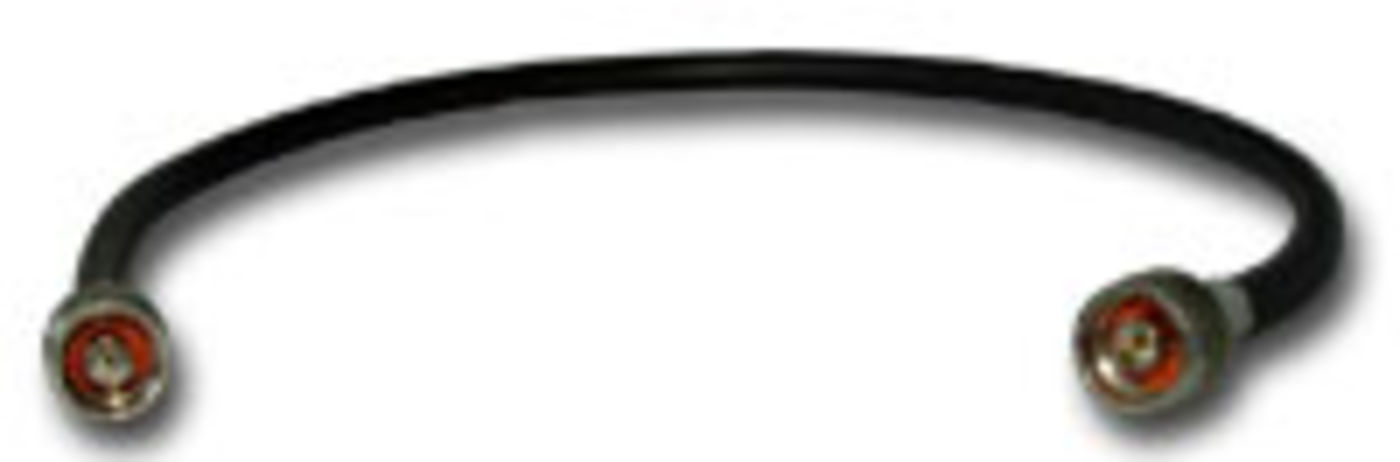

The COAXNTN consists of an RG8/U, low-loss coaxial cable fitted with a Type N pin (male) connector on each end. It can support any 50 ohm transmission line application.
Technical Description
The COAXNTN can support any 50 ohm transmission line application. Within our product line, it is used to connect a TX320, TX312, or OMNISAT-M satellite transmitter with a Yagi antenna. The cable is also used with the surge protector kits for our spread-spectrum radios, UHF/VHF radios, digital cellular modems, and CRVW3. In this situation, one of the COAXNTN's connectors attaches to the surge protector, and the other connector attaches to an outdoor antenna.
Benefits
- Low-loss coaxial antenna cable
- Type N pin (male) connectors on each end that connect to antennas and transmitters that have Type N socket (female) connectors
Specifications
- Type
- RG8/U, low-loss coaxial
- Connectors
- Type N pin (male) on both ends
- Operating Temperature
- -40° to +80°C
- Impedance
- 50 ohm
- Maximum Recommended Pulling Tension
- 247 lb
- Nominal Attenuation (per 30.48 m/100 ft)
- 1.4 dB
(@ 100 MHz)
- Nominal Attenuation (per 30.48 m/100 ft)
- 1.8 dB
(@ 200 MHz)
- Nominal Attenuation (per 30.48 m/100 ft)
- 2.6 dB
(@ 400 MHz)
- Nominal Attenuation (per 30.48 m/100 ft)
- 3.6 dB
(@ 700 MHz)
- Nominal Attenuation (per 30.48 m/100 ft)
- 4.1 dB
(@ 900 MHz)
- Nominal Attenuation (per 30.48 m/100 ft)
- 6.1 dB
(@ 1800 MHz)
- Nominal Attenuation (per 30.48 m/100 ft)
- 7.5 dB
(@ 2500 MHz)
- Bend Radius
- Bend radius should not be smaller than 10.16 cm (4 in.).
- Jacket
- PVC jacket
- Connector Diameter
- 2.1 cm
(0.827 in.)
- Diameter
- 1.024 cm
(0.403 in.)
- Weight
- 47.63 kg per 30.48 m
(105 lb per 1000 ft)
