Orderable900 MHz 1 dBd Omnidirectional Dipole Antenna with Adhesive Mount
Overview

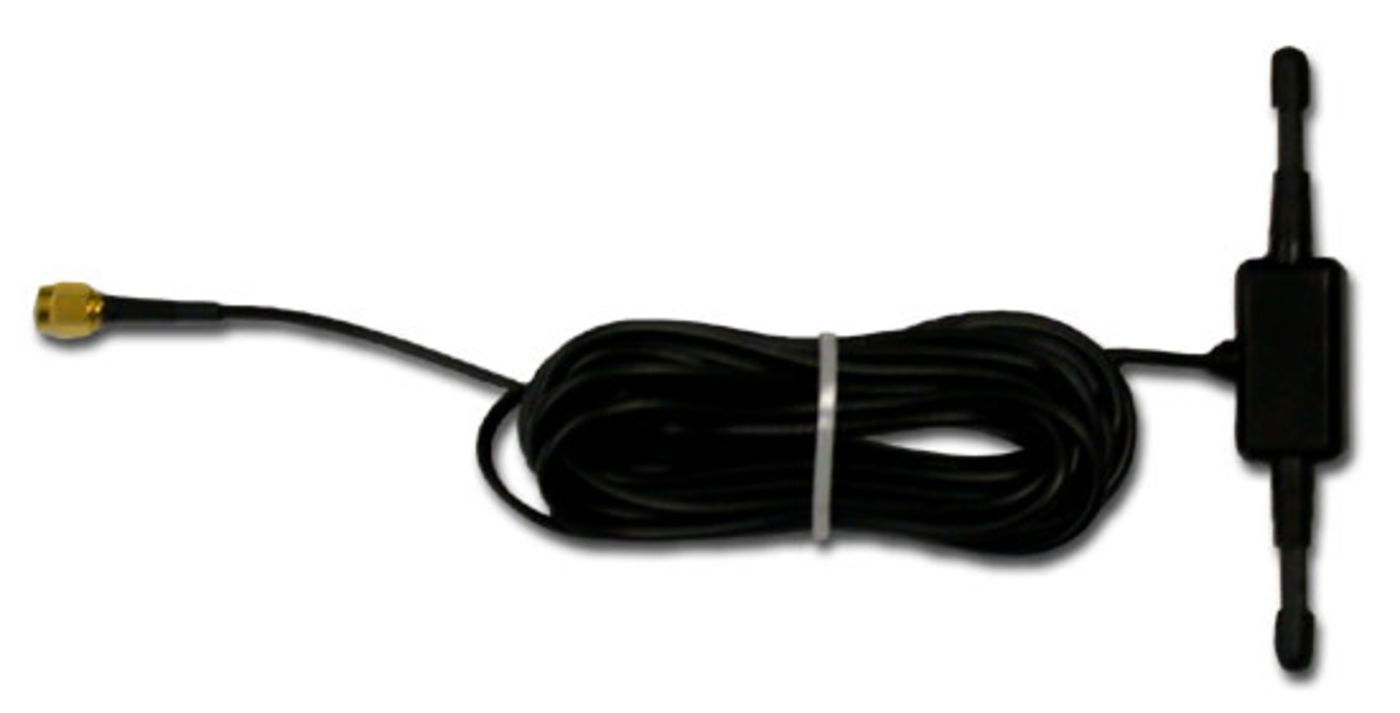

The 15970 is a 1 dBd, omnidirectional antenna. Its adhesive backing adheres to a wall, rear-view mirror, window, or another suitable flat, non-conductive surface. This antenna should reside inside a building or enclosure.
Technical Description
The 15970 is a 900 MHz, dipole, omnidirectional antenna. It has an adhesive backing that adheres to a wall, rear-view mirror, window, or another suitable flat, non-conductive surface. This antenna should reside inside of a building or enclosure.
The 15970 is fitted with a cable that terminates with an RPSMA male connector. The connector attaches directly to an RF401, RF407, RF411, RF412, RF422, RF430, RF431, CR206(X), CR211(X), AVW206, or AVW211. It also attaches to an FGR-115 spread-spectrum radio via the 18686 adapter.
Specifications
- Frequency Band Supported
- 900 MHz
- Gain
- 1 dBd
- Antenna Type
- Dipole, indooor antenna
with adhesive backing and 200.66-cm (79-in.) RG174 cable
- Cable Connector
- Reverse Polarity SMA (RPSMA) male
- Length
- 10 cm
(4 in.) tip-to-tip
- Length
- 2 cm
(0.7 in.) across body
- Length
- 2.01 m
(79 in.) for cable
- Weight
- 78.4 g
(2.8 oz)
