15966

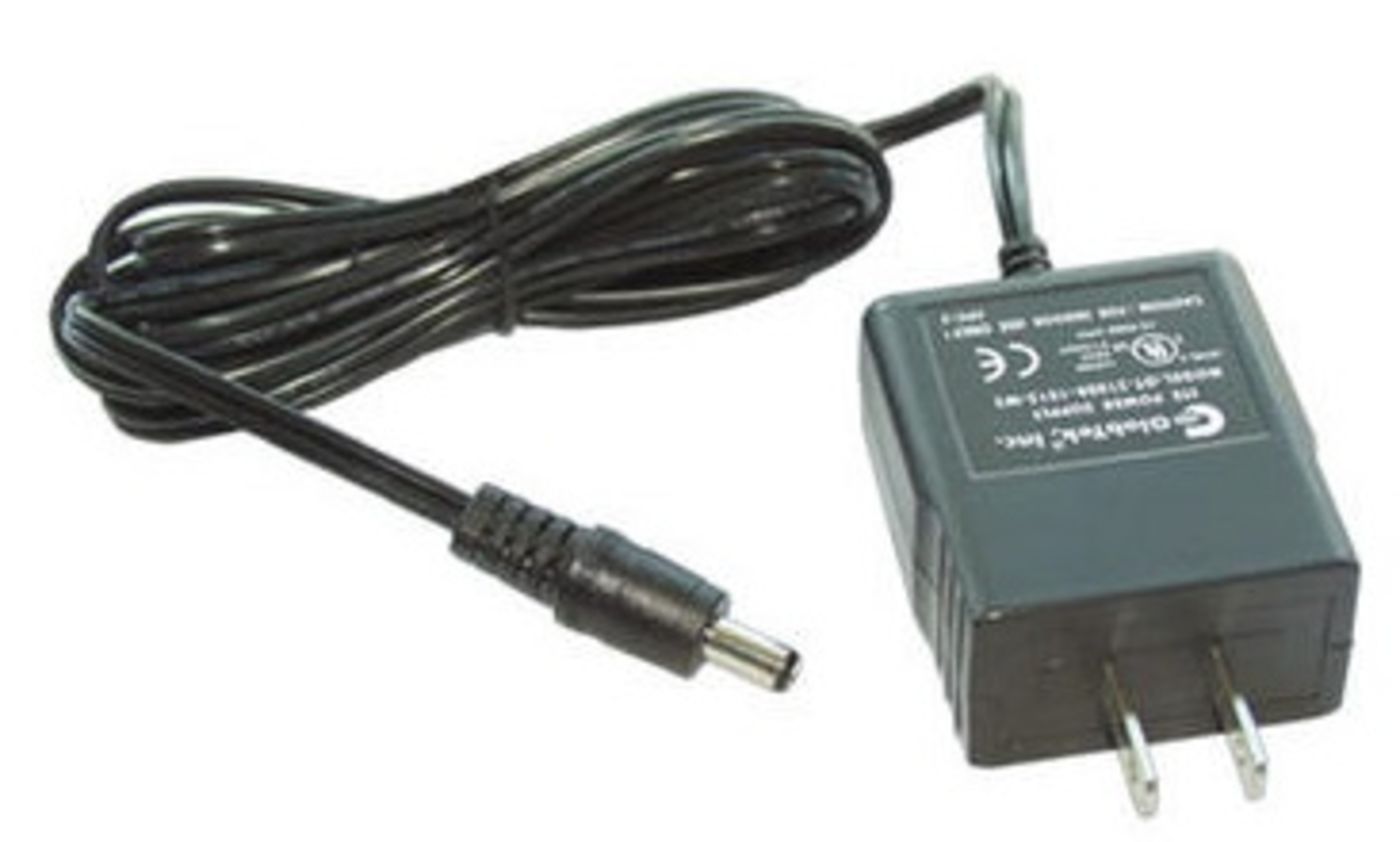

Wall Charger with Barrel Plug
15966
OrderableWall Charger with Barrel Plug
Overview
Power Wall Adapter AC/DC 12Vdc 800mA w/Inputs (100-240Vac, 50-60Hz) w/Barrel Plug (.100 ID), 1.5m (5ft) Cable
The 15966 is a charger commonly used with the following:
- SC532A interface
- RF401-series radios
- RF407 radio
- RF412 radio
- RF422 radio
- RF427 radio
- RF450 radio
- RF451 radio
- RF452 radio
- MD485 interface (typically used at the PC where ac power is available)
Technical Description
The 15966 wall charger can power many devices including our spread spectrum radios, a SC532A interface, and MD485 multidrop modem. This wall charger is typically used at the PC site where ac power is available. Its cable is fitted with a barrel plug that connects to the device.
Specifications
- Input
- 100 to 240 Vac
(@ 50 to 60 Hz)
- Output
- 12 Vdc
(@ 800 mA)
- Barrel Connector Inside Diameter
- 2.5 mm
(0.098 in.)
- Barrel Connector Outside Diameter
- 5.5 mm
(0.217 in.)
- Cable Length
- 1.8 m
(6 ft)
- Weight
- 122.5 g
(0.27 lb)
