OrderableConfigurableGSALMR195 Antenna Cable with Reverse Polarity SMA and Type N Pin (Male) Connector
Pricing
Configuration
Sign in for option pricing- w/3m per SensorCOAXRPSMA-3m
- w/5m per SensorCOAXRPSMA-5m
- w/10m per SensorCOAXRPSMA-10m
Select a configuration to add to your quote
- Model:
- COAXRPSMA
- Item Number:
- 45043
- Warranty:
- 1 year
- Lead time:
- 14 days
Overview

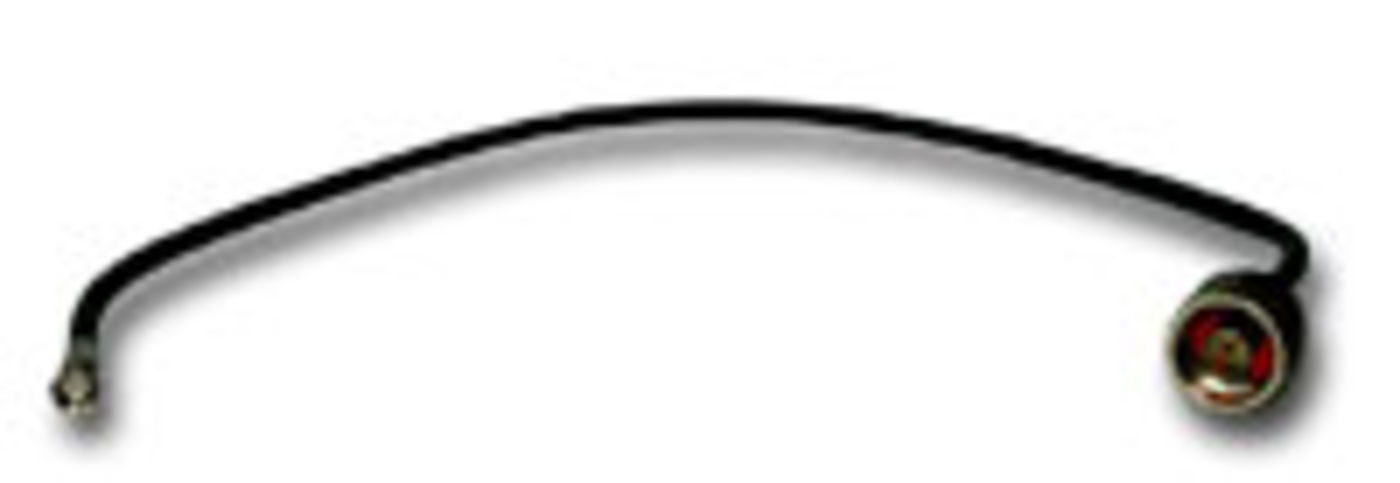

The COAXRPSMA is an LMR195 coaxial cable fitted with a Type N pin (male) connector on one end and a Reverse Polarity SMA (RPSMA) pin (male) connector on the other end. This cable is commonly used to connect an antenna with Type N connector to a spread-spectrum radio with an RPSMA connector.
Technical Description
The COAXRPSMA is an LMR195 coaxial cable fitted with a Type N pin (male) connector on one end and a Reverse Polarity SMA (RPSMA) pin (male) connector on the other end. The cable has a UV-resistant polyethylene jacket, which with proper installation and care, is designed for 20 years of outdoor use.
The COAXRPSMA is recommended for cable lengths less than 10 ft. If the cable needs to be longer, the COAXNTN coaxial cable and a surge suppressor kit are recommended.
Specifications
- Cable Type
- LMR195
- Connector 1
- Type N pin (male)
- Connector 2
- Reverse Polarity SMA (RPSMA) pin (male)
- Bend Radius
- 1.27 cm
(0.5 in.)
- Operating Temperature Range
- -40° to +85°C
- Impedance
- 50 ohm
- Attenuation
- 14.6 db/100 m (4.4 db/100 ft)
@ 150 MHz
- Attenuation
- 25.5 db/100 m (7.8 db/100 ft)
@ 450 MHz
- Attenuation
- 36.5 db/100 m (11.1 db/100 ft)
@ 900 MHz
- Attenuation
- 62.4 db/100 m (19.0 db/100 ft)
@ 2.4 GHz
- Weight
- 0.03 kg/m
(0.021 lb/ft)
