FGR-115RC
FGR-115RC

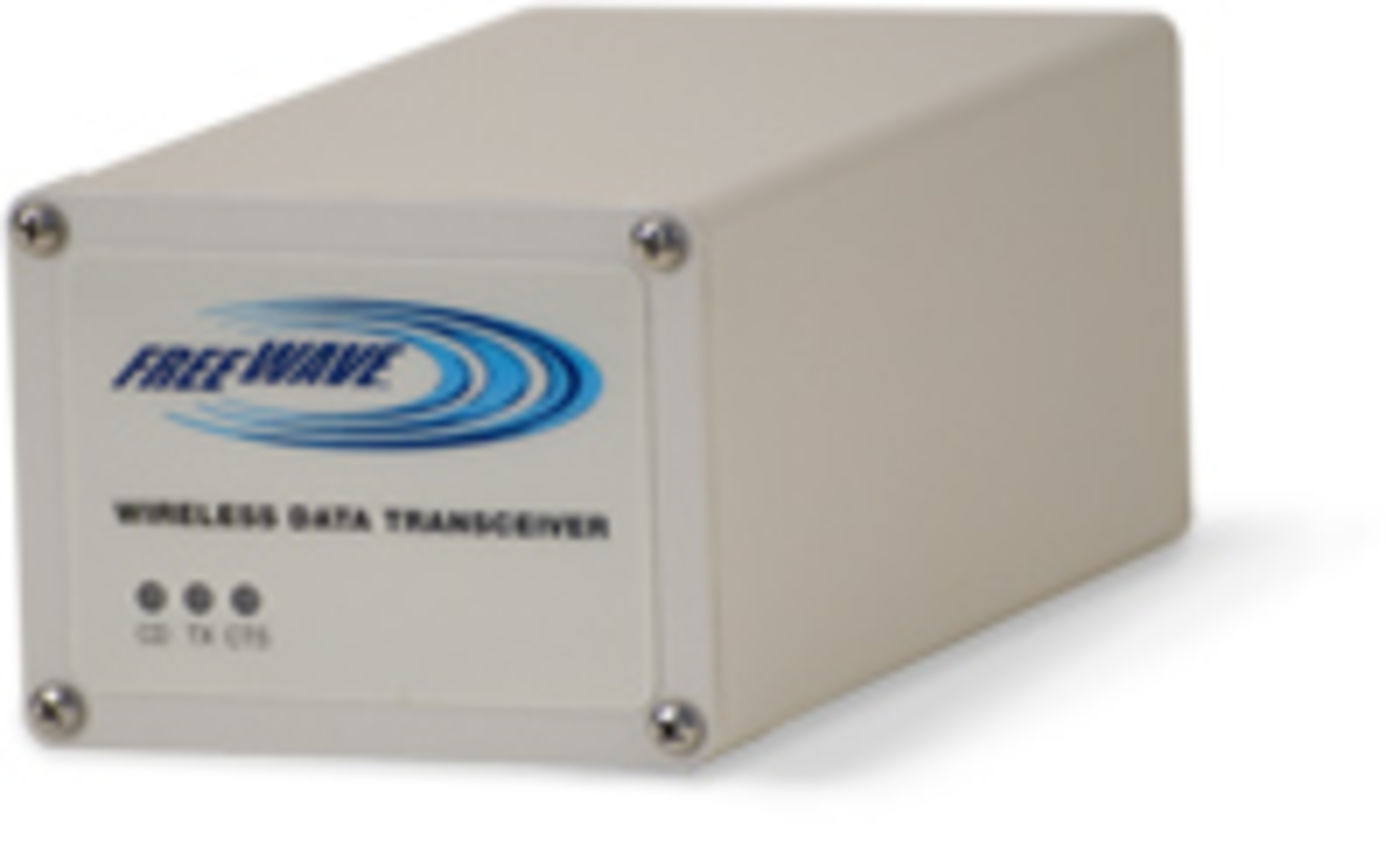

End of lifeFreewave 900 MHz Spread Spectrum Radio
Pricing
- Model:
- FGR-115RC
- Item Number:
- FGR-115RC
- Lead time:
- 21 days
Overview
The FGR-115RC operated in the 902-928 MHz frequency range. Transmission range was up to 60 miles (please note that line-of-sight obstructions, RF interference, and antenna type affected transmission distance).
Technical Description
The FGR-115RC supported point-to-point and point-to-multipoint networks. It could serve as a field radio/modem connected to a data logger, as a stand-alone repeater not connected to a data logger, or as a base station radio/modem connected to a computer.
Freewave's FGR-115RC 1-Watt Spread Spectrum Radio was retired in July 2007.
Specifications
- Operating Frequency
- 902 to 928 MHz
- Type
- Frequency Hopping Spread Spectrum (FHSS) Transceiver
- Modulation
- GFSK, 115.2 kbps or 153.6 kbps
- Hopping Bands
- 7, user selectable
- Hopping Channels
- 50 to 112, user selectable
- Frequency Hopping Patterns
- 15 per band, 105 total, user selectable
- Occupied Bandwidth
- 230 kHz
- Transmitter Power Output
- 100 mW to 1 W
(+30 dBm)
- Antenna Connector
- Type N Female
- Receiver Sensitivity
- -108 dBm
(for 10-6 BER)
- Receiver Sensitivity
- -110 dBm
(for 10-4 BER)
- Operating Temperature Range
- -40° to +75°C
- Power
- 6 to 30 Vdc
- I/O Data Rate
- 38,400 to 115,200 bps
- RS-232 Connector
- 9-pin “D” DCE
- Dimensions
- 16.5 x 7.4 x 5.7 cm
(6.5 x 2.9 x 2.2 in.)
- Weight
- 441 g
(15.5 oz)
Average Current Drain
- Sleep
- 6 mA
- Idle
- 21 mA
- Receiving
- 86 mA
- Transmitting
- 500 mA
