14205

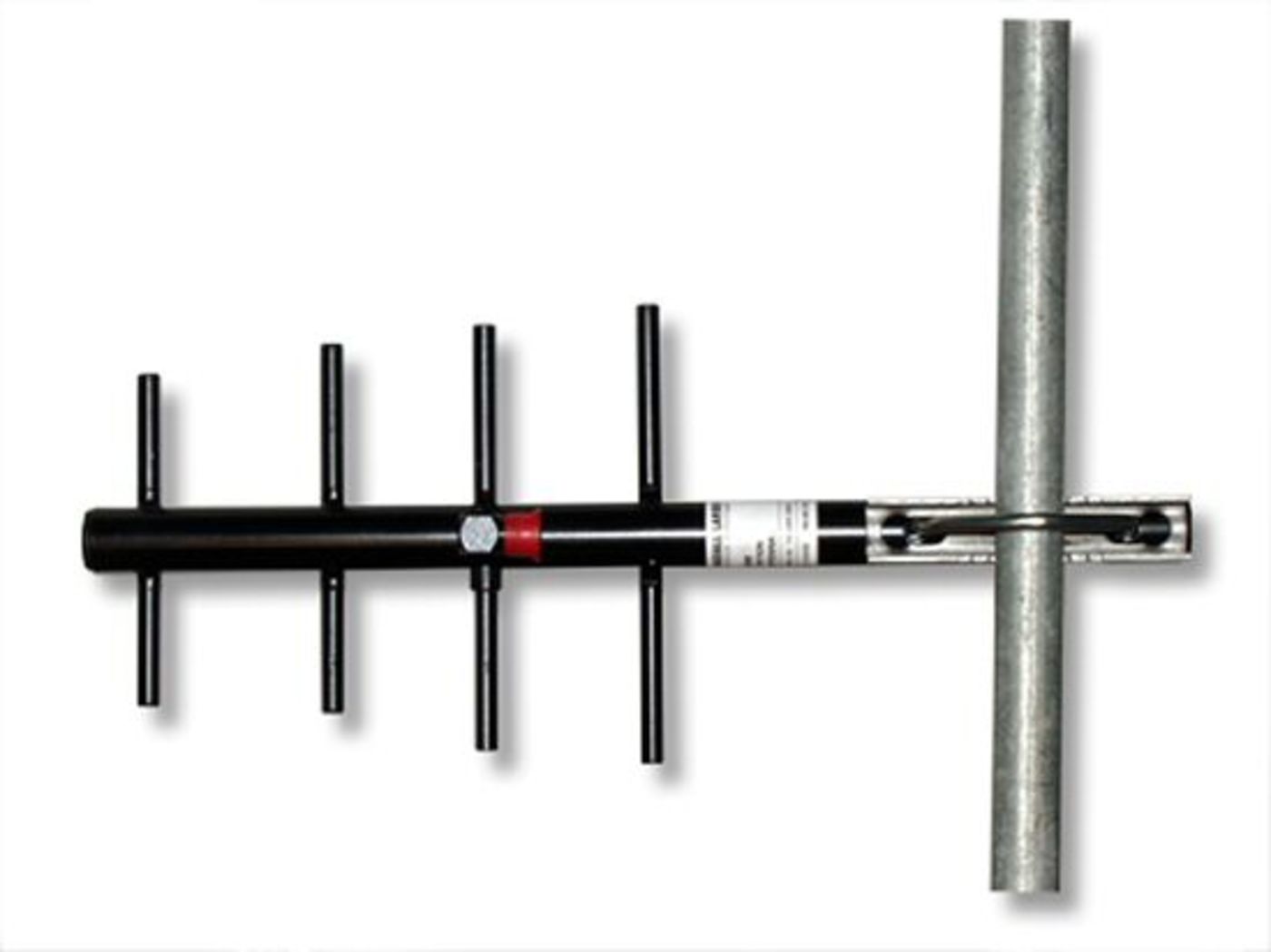

900 MHz 6 dBd Yagi Antenna with Mounting Hardware
14205
Orderable900 MHz 6 dBd Yagi Antenna with Mounting Hardware
Overview
ANT 900MHz 6dB Yagi Type N Female w/Mounting Hardware
The 14205 is a high-gain (6 dBd), directional (Yagi) antenna. It is useful for making RF links over longer distances in one direction. The 14205 requires an antenna cable to connect it to the spread-spectrum transceiver. (See the Compatibility information for cable options.)
Technical Description
Note: Because the FCC limits the EIRP of 900 MHz spread-spectrum radios to 36 dBm, using this antenna with an RF450- or RF451-based system may require the user to reduce the radio's transmit power to a setting of 9 or less.
Specifications
- Antenna
- Larsen YA6900W
- Frequency
- 890 to 960 MHz
- Gain
- 6 dBd
- Antenna Type
- Yagi, 4 element
- Connector
- Type N female
- Horizontal Beam Width
- 86°
(-3 dB)
- Vertical Beam Width
- 58°
(-3 dB)
- Material
- Aluminum, fully welded, powder coated, black
- Mount
- Zinc-plated
- Mounting
- Mounts to a pole with diameter up to 7.6 cm (3 in.).
- Dimensions
- 44.45 x 18.54 x 2.67 cm
(17.5 x 7.3 x 1.05 in.)
