SC105
SC105
OrderableConfigurableCS I/O to 9-Pin RS-232 DCE Synchronous Interface
Pricing
Configuration
Sign in for option pricing- 25 to +50C (Ships as 16962, 16675, 13657, & 10873)SC105-ST
- 55 to +85C (Ships as 33962, 16675, 13657, & 10873)SC105-XT
Select a configuration to add to your quote
- Model:
- SC105
- Item Number:
- SC105
- Warranty:
- 1 year
- Lead time:
- 14 days
Overview

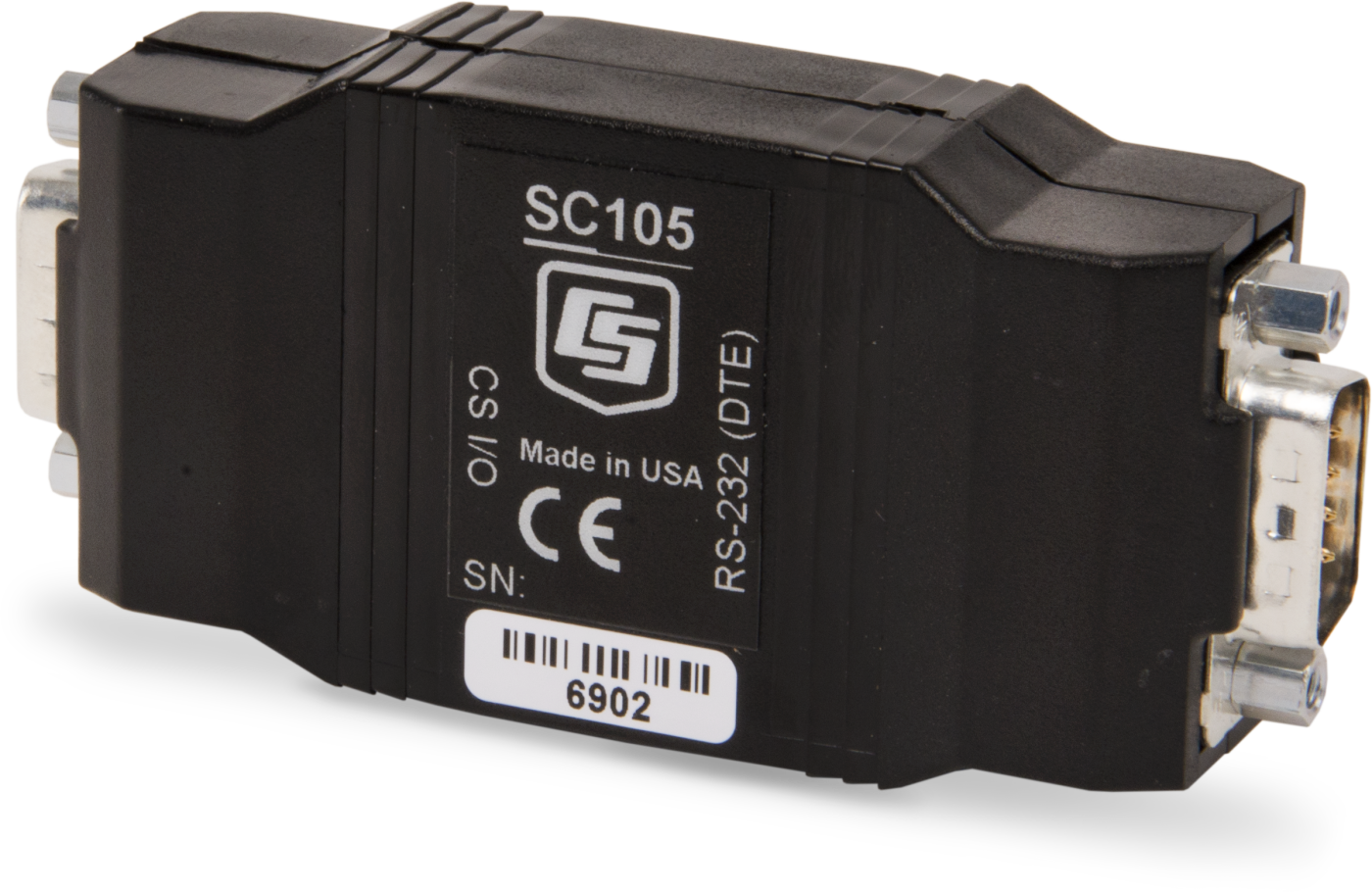

The SC105 is a CS I/O to RS-232 adapter used to connect a Campbell Scientific data logger to an RS-232 DCE device. Common DCE devices used with the SC105 include cellular modems, radios, and smart serial sensors. The SC105 is compatible with any data logger that has a CS I/O port. Multiple SC105 interfaces can be connected to a single data logger CS I/O port.
Key Advantages
Technical Description
The SC105 provides internal buffering that temporarily stores data. This buffering allows the data logger and DCE device to operate at different baud rates by storing the data received from the faster device until the slower device is ready to receive it. Internal buffering also ensures that no data is lost during transmission.
Benefits
- Supports communication between a data logger and an RS-232 DCE device
- Communicates at baud rates up to 115.2 kbps
- Provides internal buffering capability to ensure no data is lost during transmission
- Data logger can operate at a different baud rate than the DCE device
- No power source needed—powered by the datalogger and computer
- Compatible with most Campbell Scientific data loggers
- Helps protect components from electrical damage
- Ships with cables needed for most uses
Specifications
- Baud Rates Supported
- 1200, 9600, 19200, 38400, 57600, 115200 bps
- RS-232 Parity Supported
- Even, odd, none
- RS-232 Data Bits Supported
- 7, 8
- CS I/O Port Modes
- CSDC, SDC, ME, Addressed Print Device for P96 output
- Power Requirements
- Data logger’s 5 V supply
- Current Drain
- Up to 8 mA of additional current may be used by the DCE device connected to the SC105.
- Current Drain
- 0.20 mA
(standby)
- Current Drain
- 1 to 4 mA
(communicating)
- Operating Temperature Range
- -25° to +50ºC
(standard)
- Operating Temperature Range
- -55° to +85°C
(extended)
- Operating Relative Humidity
- up to 95%
(non-condensing)
- Dimensions
- 2.3 x 4.3 x 9.2 cm
(0.9 x 1.7 x 3.6 in.)
- Weight
- 45.4 g
(1.6 oz)
