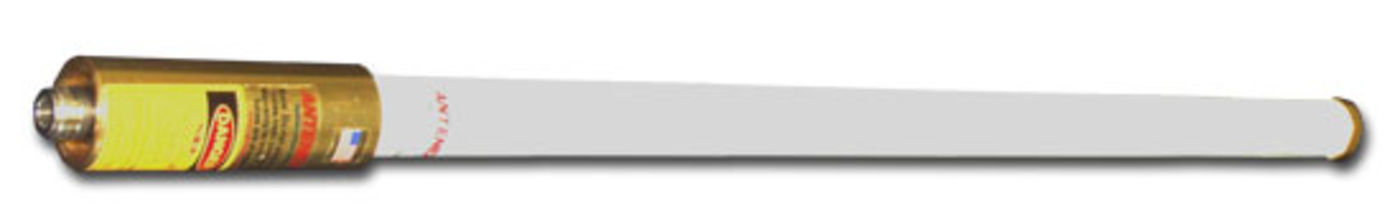

900 MHz 3 dBd Omnidirectional Antenna without Mounting Hardware
14203
Orderable900 MHz 3 dBd Omnidirectional Antenna without Mounting Hardware
Overview
ANT 900MHz 3dB Omni 1/2 Wave Type N Female w/o Mounting Hardware
The 14203 is a high gain (3 dBd) omnidirectional antenna for our 900 MHz spread-spectrum radios and data loggers. It does not include antenna mounting hardware and is intended for customers who want to construct an antenna mounting bracket that fits their specific application. Customers who want antenna mounting hardware should purchase the 14221, which provides a 3 dBd omnidirectional antenna with antenna mounting hardware.
Specifications
- Frequency
- 902 to 928 MHz
- Gain
- 5.25 dBi
- Polarization
- Vertical
- Maximum VSWR
- 1.5:1
- Maximum Power
- 150 W
- Lightning Protection
- dc ground
- Electrical Downtilt
- fixed
- Fixed Electrical Downtilt
- 0°
- RF Connectors
- N female
- Connector Placement
- bottom
- Maximum Rated Wind Velocity
- 160.9 kph
(100 mph)
- Height
- 59.06 cm
(23.25 in.)
- Weight
- 0.57 kg
(1.25 lb)
