CRVW3-NE

Vibrating Wire Node without Enclosure
CRVW3-NE

CRVW3-NE

OrderableConfigurable

Vibrating Wire Node without Enclosure

3-channel vibrating wire data logger.

Pricing

Sign in for pricing

Configuration

Sign in for option pricing

Select a configuration to add to your quote

Model:
CRVW3-NE
Item Number:
CRVW3-NE
Warranty:
1 year
Lead time:
14 days

Overview

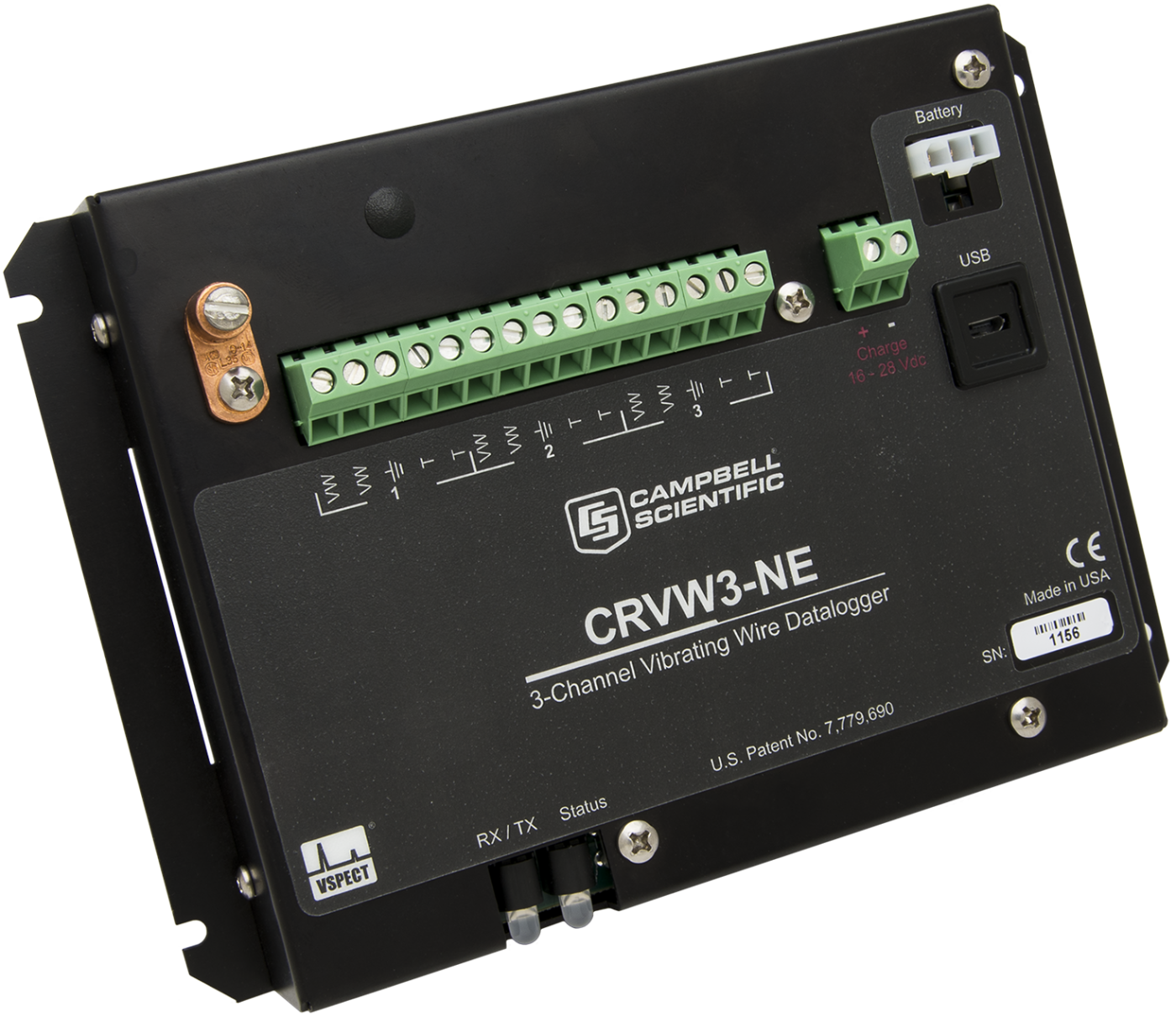

3-Channel Vibrating Wire Datalogger w/o Enclosure

The CRVW3-NE is a low-cost, three-channel vibrating wire node. It is designed to be an independent data-acquisition system, or a component of your larger radio-linked data-acquisition network when it is configured with available wireless communications options.

The CRVW3-NE and the CRVW3 are similar products that share the same electronic components. The main difference between them is that the CRVW3-NE allows you to select the enclosure and battery, whereas the CRVW3 includes an environmental enclosure and battery as a complete system.

Learn about our patented VSPECT™ spectral-analysis technology at our VSPECT Essentials web resource.

The dynamic vibrating wire measurement technique is protected under U.S. Patent No. 8,671,758, and the vibrating wire spectral-analysis technology (VSPECT) is protected under U.S. Patent No. 7,779,690.

Key Advantages

Three-Channel, Wireless Vibrating Wire Node
Capable of measuring up to three vibrating wire sensors using Campbell Scientific’s patented VSPECT™ technology

Technical Description

The CRVW3-NE Vibrating Wire node uses vibrating wire spectral-analysis technology (VSPECT) to provide the best measurement possible for vibrating wire sensors. VSPECT observes the incoming sensor signal, performs a Fourier transform and a spectral analysis (transforming the time series into individual sinusoidal components in the frequency spectrum), and determines the sensor frequency by identifying the strongest signal in the acceptable range while filtering out environmental and electrical noise.

The CRVW3-NE provides the following data: the resonant sensor frequency, thermistor resistance for temperature calculation, and diagnostic values to help determine the validity of the frequency measurement.

Note: The CRVW3-NE requires Device Configuration Utility (DevConfig) v 2.10 or later. When radio options are used, the CRVW3-NE requires LoggerNet v 4.3 or later.

Benefits

  • Reads and stores data from one to three vibrating wire sensors
  • Charge regulator included for solar panel connection
  • Simple programming interface
  • Compatible with many existing Campbell Scientific data-acquisition networks
  • PakBus router/radio capabilities
  • User-selectable battery and enclosure options

Specifications

-NOTE-
All CRVW3-NE dataloggers are tested and guaranteed to meet the following electrical specifications in a -40° to +70°C non-condensing environment.
-NOTE-
The base -NA option and -RF422 option are CE approved, but the -RF451,
-RF452, -RF407, -RF412, and -RF427 options are not CE approved.
Operating Temperature Range
-40° to +70°C
Operating Temperature Range
Non-condensing environment
Processor
ST ARM CORTEX-M4

(32-bit with hardware FPU, running at 144 MHz)

Data Storage
16 MB serial flash, up to 420,000 records (single channel), up to 160,000 records (3 channels)
Real-Time Clock Accuracy
±3 min. per year
Measurement Interval Range
1 s to 1 day
USB Micro B
Direct connect to PC (supplies power for configuration and data collection), 2.0 full speed, 12 Mbps
Configuration
Software configurable, no programming required
Compliance
RoHS
Warranty
One year against defects in materials and workmanship
Static Vibrating Wire Measurements
Supported
Mounting
Mounting holes for easy mounting and installation in a Campbell Scientific enclosure
Dimensions
18.4 x 12.7 x 4.5 cm

(7.25 x 5.0 x 1.75 in.)

Weight
0.36 kg

(0.8 lb)

Power

Charge Terminal
16 to 28 Vdc

(from solar panel or dc power converter). Typical applications use 10 to 20 W panels.

Battery Terminal
Sealed, rechargeable, lead-acid batteries.

Typical applications use 7, 12, and 24 Ah rechargeable batteries.

Current Drain
1 mA

(no radio, basic operation)

Current Drain
~37.5 mA/s

(each time a channel is measured)

Measurements

Channel Count
3 vibrating wire (VW) and 3 thermistor/RTD (temperature) measurements
Measurement Speed
1 s per sensor

(VW and temperature)

Measurements - Vibrating Wire

Measurement Excitation Options
2 V (±1 V), 5 V (±2.5 V),12 V (±6 V)
Measurement (Frequency) Resolution
0.001 Hz RMS

(-40° to +70°C)

Time-series Basic Resolution
24-bit ADC
Measurement Accuracy
±0.005% of reading

(-40° to +70°C)

Measurement Method
VSPECT (Spectral Analysis), U.S. Patent No. 7,779,690, includes diagnostic data

Measurements - Temperature (Resistance)

-NOTE-
Thermistor or RTD resistance can be scaled to Temperature (Deg C) per manufacturer specifications. The resulting temperature can be used as a correction factor for the sensor’s output.
Measurement Method
Half-bridge ratiometric, 24-bit ADC, built-in completion resistor 4.99 kΩ 0.1%
Thermistor Precision
0.020 Ω RMS @ 3000 Ω

(~0.00015 °C RMS for most vibrating wire thermistors)

Accuracy
±0.15% of reading

(-40° to +70°C)

-RF407 Option

Internal Radio Description
5 to 250 mW, user selectable; 902 to 928 MHz license-free band, frequency hopping spread-spectrum radio
Radio Repeater
Devices with the -RF407 option can be set up as a radio repeater.
Where Used
US, Canada
Compliance Information
MCQ-XB900HP

(United States FCC Part 15.247)

Compliance Information
846A-XB900HP

(Industry Canada ([IC])

Compliance Information
RCPDIXB15-0672-A2

(Mexico IF)

-RF412 Option

Internal Radio Description
5 to 250 mW, user selectable; 915 to 928 MHz license-free band, frequency hopping spread-spectrum radio
Radio Repeater
Devices with the -RF412 option can be set up as a radio repeater.
Where Used
Australia
Compliance Information
ACMA RCM
Compliance Information
MCQ-XB900HP

(United States FCC Part 15.247)

Compliance Information
1846A-XB900HP

(Industry Canada [IC])

-RF422 Option

Internal Radio Description
2 to 25 mW, user selectable; 863 to 870 MHz license-free band, frequency hopping spread-spectrum radio
Where Used
Europe and some of Asia

(ETSI)

EU Conformity
View the EU Declaration of Conformity in the Documents section of the web page.

-RF427 Option

Internal Radio Description
5 to 250 mW, user selectable; 905/920 MHz license-free band, frequency hopping spread-spectrum radio
Radio Repeater
Devices with the -RF427 option can be set up as a radio repeater.
Where Used
Brazil
Compliance Information
08335-17-10644

Brazil (ANATEL standards in Resolution No. 506)

-RF452 Option

Internal Radio Description
10 to 1,000 mW, user selectable; 902 to 928 MHz license-free band, frequency hopping spread-spectrum radio
Radio Repeater
Devices with the -RF452 option can be set up as a radio repeater.
Where Used
US, Canada, Australia
Compliance Information
KNYAMM0921TT

(United States FCC ID)

Compliance Information
2329B-AMM0921TT

(Canada [IC])

Ships With

(6)
