BP24
BP24
Orderable24 Ah 12 V Sealed Rechargeable Battery
Minimum recommended size with remote communications.
Overview
The BP24 is a rechargeable 12 Vdc, 24 Ah battery pack that can power a Campbell Scientific system. It is intended for high-current-drain systems, such as satellite transmitters, that require more power.
Technical Description

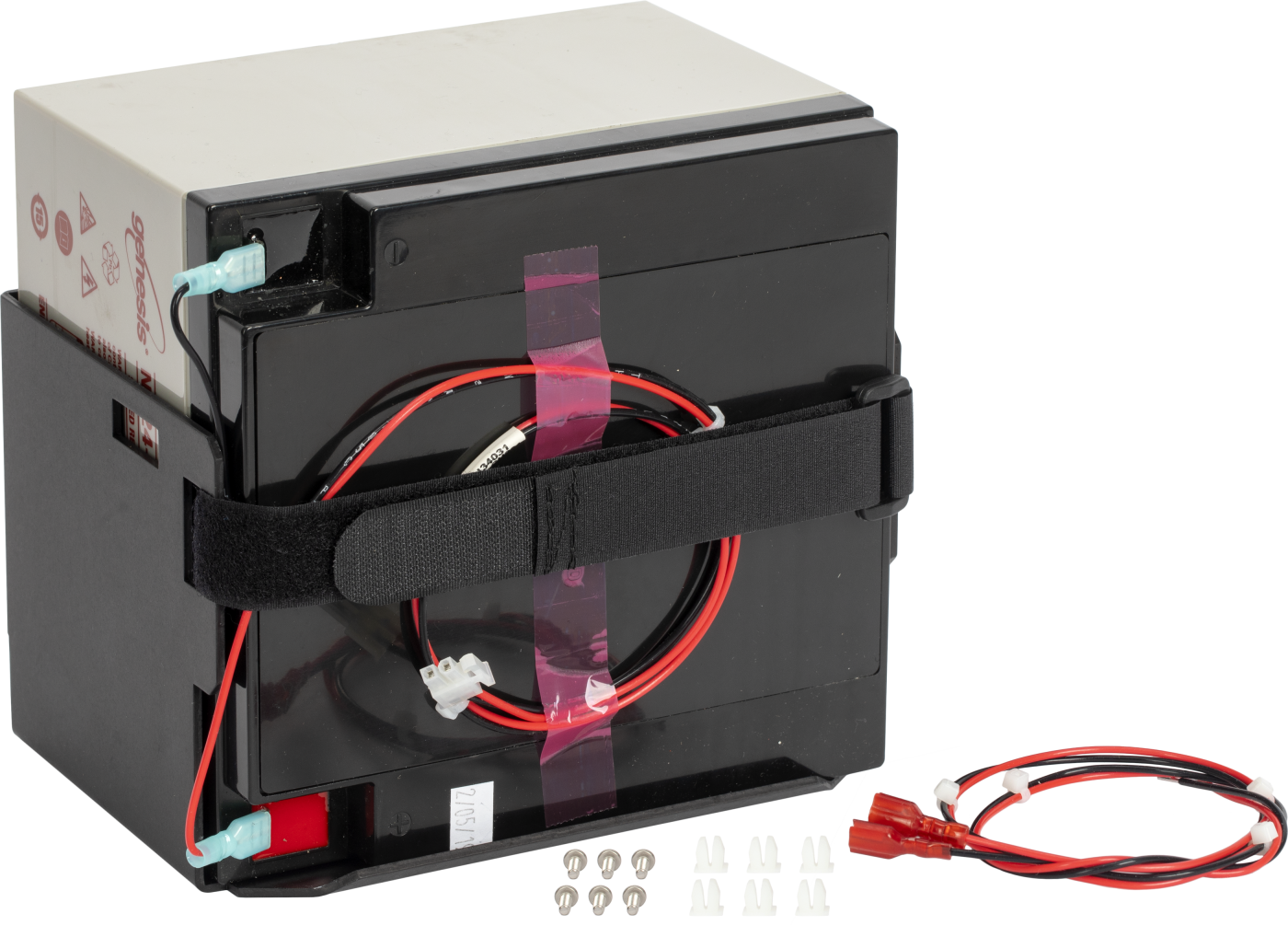

The BP24 requires a regulated charging source (provided by the CH150 or CH200 regulator connected to an unregulated solar panel or a wall charger). The BP24 includes a 24 in. attached cable that terminates in a connector for attaching the battery to a CH150 or CH200 regulator. The BP24 also comes with a 24 in. cable for use with the CR6 datalogger or other products that need a pigtail termination instead of a white connector. (This cable is bagged and taped to the battery.) Switching the standard cable for the pigtail cable is easily accomplished by the user. The BP24 is shipped with a bracket that secures the BP24 to an enclosure backplate. An ENC16/18 enclosure is recommended.
Specifications
- -NOTE-
- Usable length of the red and black power leads extends at least 20 cm (8 in.) past the white cable tie tab.
- Battery Type
- Sealed lead acid (SLA)
- UL Approval File Number
- MH16464
- Output Voltage
- 12 Vdc
- Nominal Rating
- 24 Ah
- Battery Cables Length
- 0.6 m
(2 ft)
- Dimensions
- 16.5 x 17.5 x 12.5 cm
(6.5 x 6.9 x 4.9 in.) for battery only
- Dimensions
- 21.3 x 17.7 x 13.0 cm
(8.4 x 7.0 x 5.1 in.) battery with mounting bracket
- Weight
- 10.2 kg
(22.4 lb)
