SP10
SP10

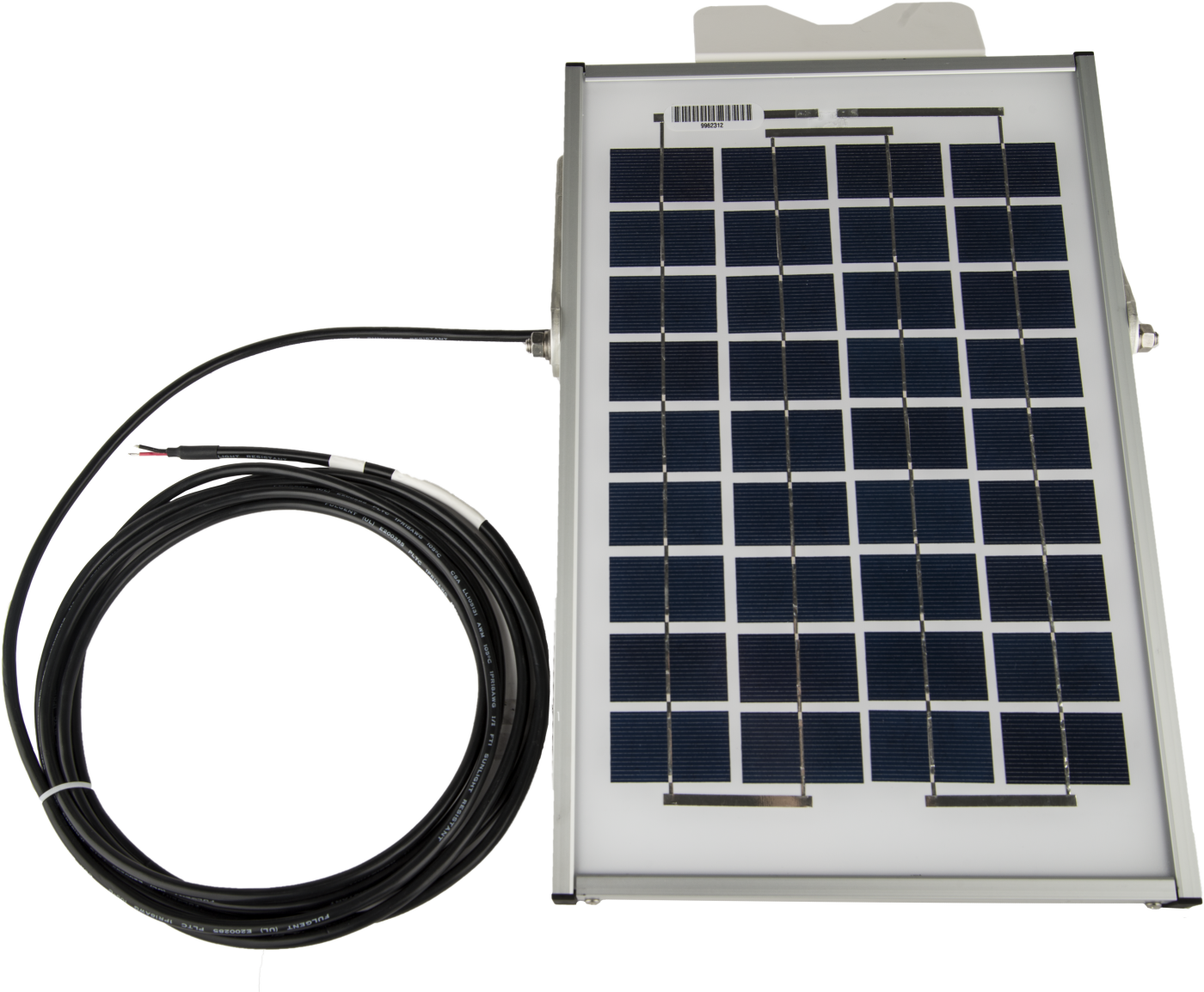

OrderableConfigurable10 W Solar Panel
Ideal for low-power-draw applications.
Pricing
Configuration
Sign in for option pricing- Standard Mounting Kit - w/Ferrules on WiresSP10-SM-PF
- Standard Mounting Kit w/Pre-Wire ConnectorSP10-SM-PW
- Extended Mounting Kit - w/Ferrules on WiresSP10-EM-PF
- Extended Mounting Kit w/Pre-Wire ConnectorSP10-EM-PW
Select a configuration to add to your quote
- Model:
- SP10
- Item Number:
- SP10
- Warranty:
- 1 year
- Lead time:
- 14 days
Overview
The SP10 is a 10-W photovoltaic power sources capable of recharging batteries. Its 6.1 m (20 ft) cable has stripped and tinned leads that connect to the PS150, PS200, CH150, CH200, or battery base of the CRVW3, CR3000, CR5000, CR7, CR9000X, or CR6. The SP10 has a sufficient charging source for many of our system configurations in tropical to temperate latitudes. It allows unattended operation of systems in remote locations, far from AC electrical sources.
Technical Description
The SP10 includes mounting hardware consisting of one pn 17492 U-bolt and matching nuts. The U-bolt has a 5.398 cm (2.125 in.) space between the U-bolt legs. This hardware allows the solar panel to be mounted to a 0.75 in. to 1.5 in. IPS pipe [25.4 to 50.8 cm (1 to 2 in.) OD].
A 788 connector must be soldered onto the solar panel leads to use the SP10 with a 21XL rechargeable base.
Benefits
- Supplies electrical power in locations where ac power is unreliable, expensive, or not available
- Recharges the sealed rechargeable battery of a PS150, PS200, BP12 (requires CH150 or CH200), BP24 (requires CH150 or CH200), CRVW3, CR3000, or CR5000
Specifications
- -NOTE-
- Solar panel characteristics assume 1 kW m-2 illumination and 25°C solar panel temperature.
Individual panels may vary up to 10%. The output panel voltage increases as the panel temperature decreases.
- Maximum Peak Power
- 10 W
- Current at Peak
- 0.59 A
- Maximum Allowable Wind Gust Speed
- Note: The wind ratings are for solar panels with the indicated mounts and do not account for strength of tower or tripod.
- Maximum Allowable Wind Gust Speed
- 31 m s-1
(70 mph) Standard mount
- Maximum Allowable Wind Gust Speed
- 58 m s-1
(130 mph) Extended mount
- Voltage at Peak
- 16.8 V
- Cable Description
- 20 AWG, 1-twisted pair
- On-board Regulator Included
- No
- Cable Diameter
- 6.35 mm
(0.25 in.)
- Dimensions
- 41.9 x 26.9 x 2.3 cm
(16.5 x 10.6 x 0.9 in.)
- Weight
- 2.1 kg
(4.6 lb)
