SP20
SP20

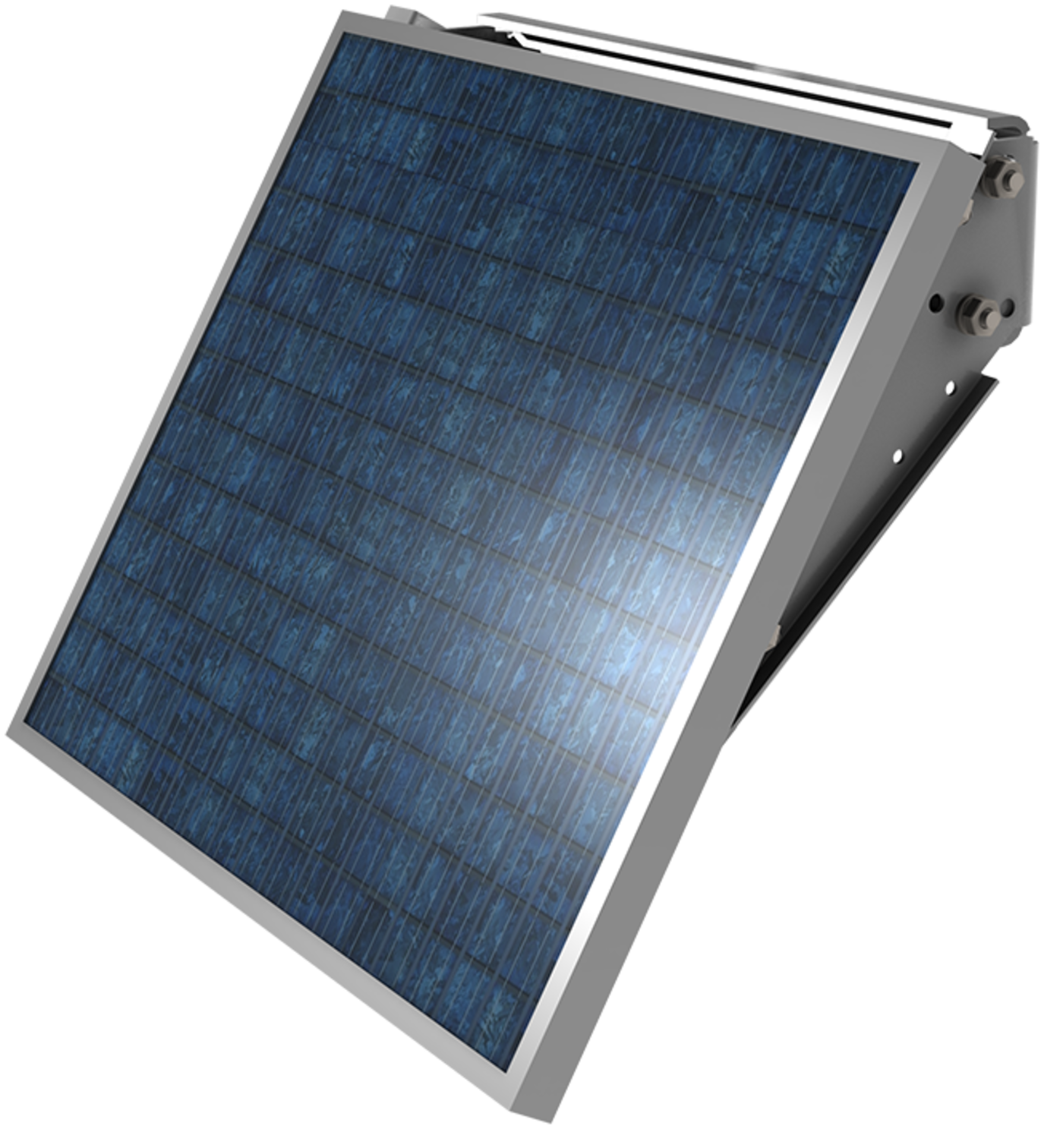

OrderableConfigurable20 W Solar Panel
Minimum recommended size with remote communications.
Pricing
Configuration
Sign in for option pricing- Standard Mounting Kit w/Ferrules on WiresSP20-SM-PF
- Standard Mounting Kit w/Pre-Wire ConnectorSP20-SM-PW
- Extended Mounting Kit w/Ferrules on WiresSP20-EM-PF
- Extended Mounting Kit w/Pre-Wire ConnectorSP20-EM-PW
Select a configuration to add to your quote
- Model:
- SP20
- Item Number:
- SP20
- Warranty:
- 1 year
- Lead time:
- 14 days
Overview
The SP20 is a 20 W solar panel. It is often used for system configurations that have higher-than-average power requirements, or in higher elevation and latitude locations. It connects to Campbell Scientific power supplies and battery bases to recharge the battery, and it allows unattended operation of systems in remote locations that are far from ac electrical sources.
Technical Description
The SP20's 15-ft cable has stripped and tinned leads that connect to the PS150, PS200, CH150, CH200, or battery base of the CR3000, CR5000, CR7, CR9000X, CR6, or CRVW3. A 788 connector must be soldered onto the solar panel leads to use the SP10 with a 21XL rechargeable base.
Included mounting hardware consists of two part no. 17492 U-bolt and matching nuts. The U-bolt has a 5.398 cm (2.125 in.) space between the U-bolt legs. This hardware allows the solar panel to be mounted to a 0.75-1.5 in. IPS pipe [25.4-50.8 cm (1-2 in.) OD].
Benefits
- Supplies electrical power in locations where ac power is unreliable, expensive, or not available
- Recharges the sealed rechargeable battery of a PS150, PS200, BP12 (requires CH150 or CH200), BP24 (requires CH150 or CH200), CR3000, CR5000, CR6, or CRVW3
Specifications
- -NOTE-
- Solar panel characteristics assume 1 kW m-2 illumination and 25°C solar panel temperature.
Individual panels may vary up to 10%. The output panel voltage increases as the panel temperature decreases.
- Cable Description
- 20 AWG, 1-twisted pair
- Maximum Peak Power
- 20 W
- Maximum Allowable Wind Gust Speed
- Note: The wind ratings are for solar panels with the indicated mounts and do not account for strength of tower or tripod.
- Maximum Allowable Wind Gust Speed
- 44 m s-1
(99 mph) Standard mount
- Maximum Allowable Wind Gust Speed
- 58 m s-1
(130 mph) Extended mount
- Guaranteed Minimum Peak Power
- 18 W
- Current at Peak
- 1.19 A
- Voltage at Peak
- 16.8 V
- On-board Regulator Included
- No
- Cable Length
- 4.572 m
(15 ft)
- Dimensions
- 50.0 x 42.2 x 5.1 cm
(19.7 x 16.6 x 2 in.)
- Weight
- 4.4 kg
(9.6 lb)
