RF412

Name: RF412
Brand: Campbell Scientific
SKU: 32157
Availability: InStock

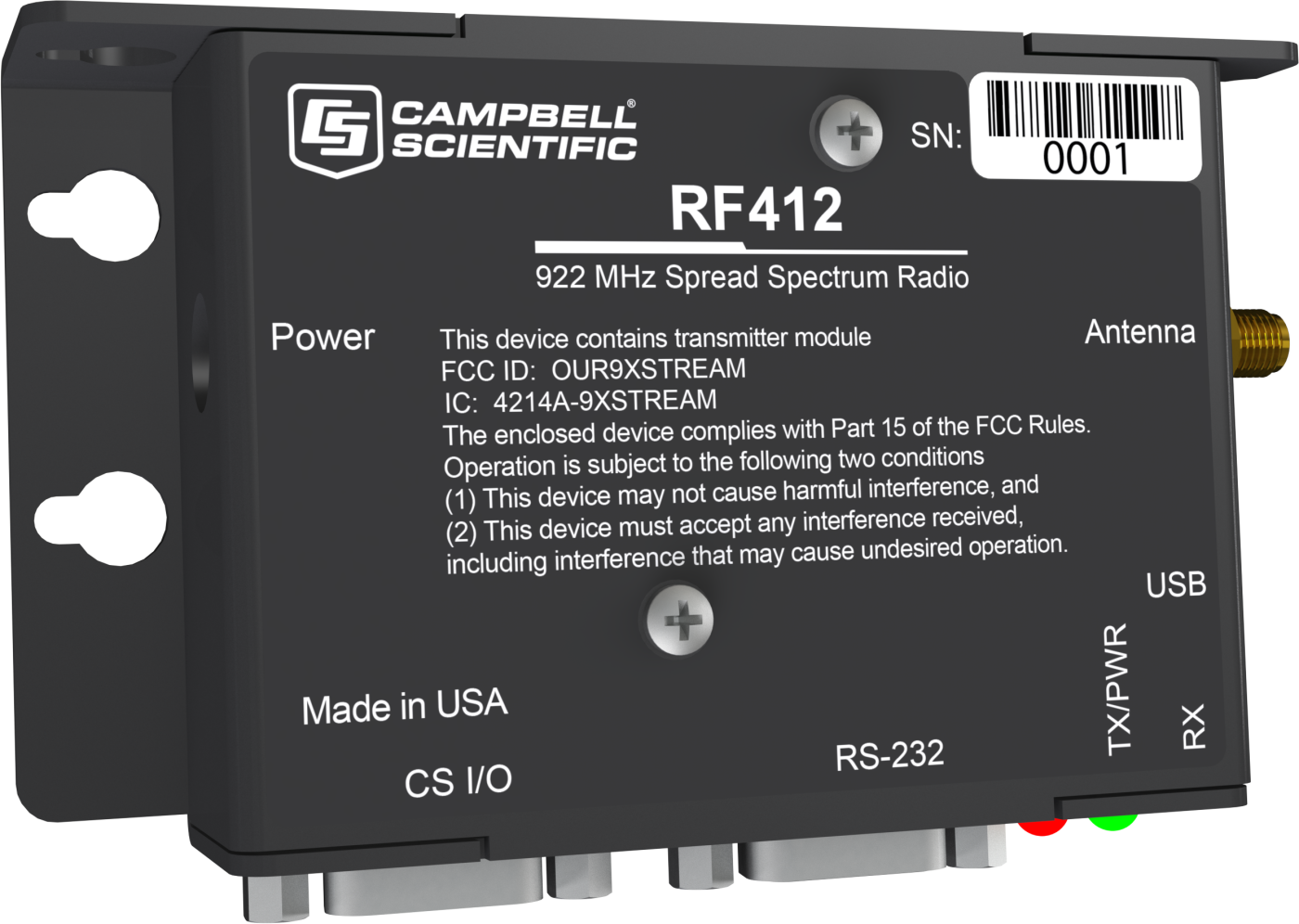

922 MHz Spread-Spectrum Radio

RF412

Orderable

922 MHz Spread-Spectrum Radio

Pricing

Qty

Model:: RF412
Item Number:: 32157
Warranty:: 1 year
Lead time:: 7 days

Overview

RF412 922MHz Spread Spectrum Radio for use in Australia/NZ (-40 to +70C) (Ships as 32156, 16675 & 17648)

The RF412 is a high-speed 900 MHz serial radio designed for unlicensed operation in several countries, including Australia and New Zealand. The RF412 is a 915 to 928 MHz frequency-hopping spread-spectrum radio with a configurable transmit-power output of 5 to 250 mW and software-selectable channel masking for improved RF interference immunity. This power-sipping, yet speedy, radio provides a cost-effective way to network data loggers.

The RF412 is part of the RF407 series of radios that includes:

RF407: North America (FCC & IC), 902 to 928 MHz
RF412: Australia (ACMA RCM), 915 to 928 MHz
RF422: Most of Europe and some of Asia (ETSI), 863 to 870 MHz
RF427: Brazil (ANATEL), 905/920 MHz

Note to RF411A users: The RF411A is factory upgradeable to an RF412. Contact Campbell Scientific for a Returned Material Authorization (RMA).

Benefits

Does not require individual operational license in Australia or New Zealand
High-speed serial communication, optimized for PakBus networks
Low power (< 2 mA idle) during periods of inactivity
Supports point-to-point with RF retries and point-to-multipoint operations
Remote diagnostics using PakBus node operations

Specifications

Radio Type: Frequency Hopping Spread Spectrum (FHSS)
Frequency: 915 to 928 MHz
Country Used In: Australia, New Zealand
Transmission Distance: -Note- Transmission distance assumes line-of-sight and appropriate antenna. Line-of-sight obstructions, RF interference, and antenna type will affect transmission distance.
Transmission Distance: Up to 1.61 km (1 mi) with omnidirectional antenna; up to 16.09 km (10 mi) with higher-gain directional antennas at ideal conditions
Power Output: 5 to 250 mW
(software-selectable)
Receiver Sensitivity: -101 dBm
Channel Capacity: Eight 25-channel hop sequences sharing 31 available channels
Data Rate: 200 kbps
Link Throughput: 105 kbps
(maximum)

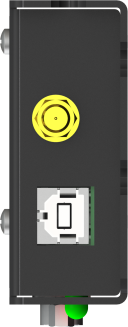

Antenna Connector: Reverse Polarity SMA (RPSMA) jack
LEDs: Red TX/PWR and green RX
RS-232 Baud Rate: 1200 to 115200 bps
CS I/O Modes: SDC 7, 8, 10, 11, and ME master
Operating Temperature Range: -40° to +70°C
Power: 9 to 16 Vdc

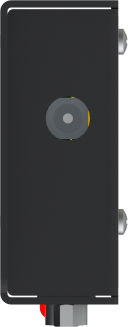

Power Connector: 2.5 mm DC power jack
Average Current Drain: Transmit: < 80 mA
(250 mW TX Power)
Average Current Drain: Receive: 15 mA
Average Current Drain: Stand-by: < 0.5 mA
(depending on power saving mode)
Communication Ports: RS-232 9-pin D socket (female)
Communication Ports: CS I/O 9-pin D pin (male)
Communication Ports: USB Type B jack
Service Requirements: Shares frequency with other devices.
Must not cause harmful interference to licensed radios. Requires line-of-sight.
Dimensions: 11.1 x 6.9 x 2.7 cm
(4.4 x 2.7 x 1.1 in.)
Dimension are from the tip of the antenna connector to the other side of the case, and from the bottom of the case to the top of the DB9 connector jack screw. The width includes the thickness of the screw heads on the screws that hold the case together.
Weight: 136 g
(4.8 oz) without "Ships With" items
Weight: 283.5 g
(10 oz) with "Ships With" items
