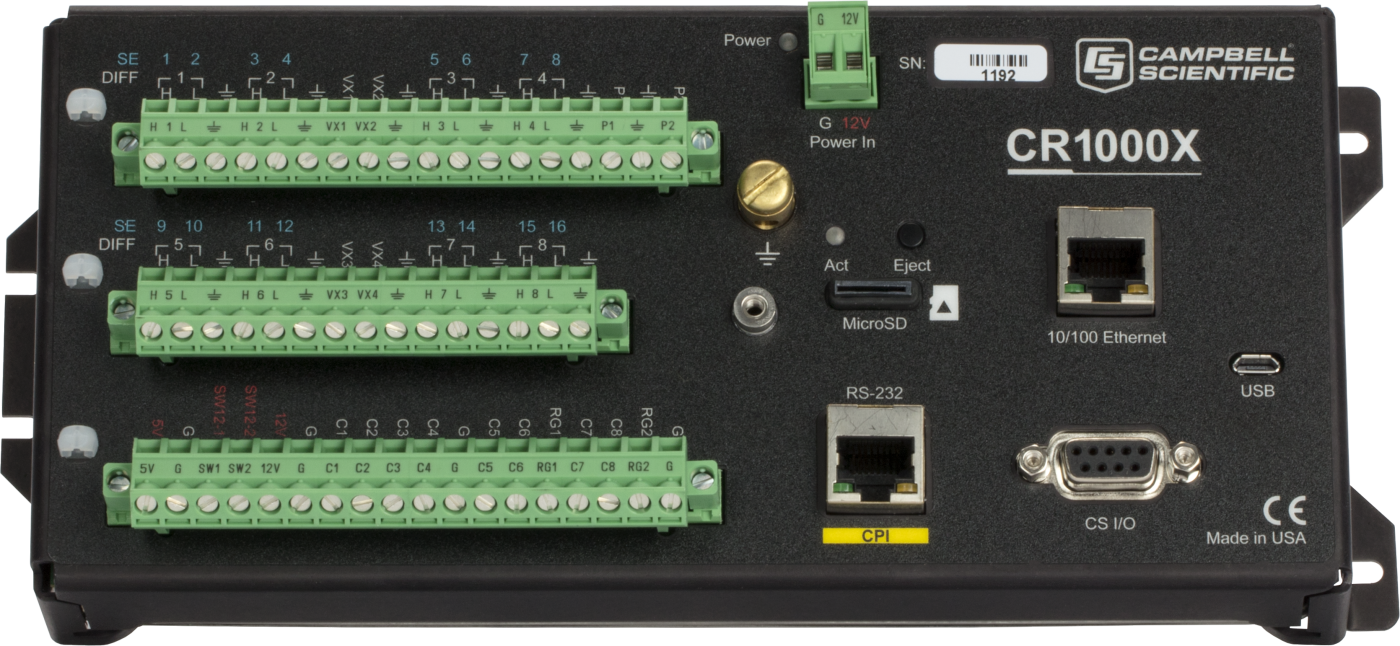

CR1000X

Name: CR1000X
Brand: Campbell Scientific
SKU: CR1000X
Availability: Discontinued

Measurement and Control Datalogger

CR1000X

RetiredConfigurableGSA

Measurement and Control Datalogger

Best for general applications. Most rugged. Most accurate.

Pricing

Configuration

40 to +70C Campbell CalibrationCR1000X-ST-CC
40 to +70C ISO 17025 CalibrationCR1000X-ST-IC
55 to +85C Campbell CalibrationCR1000X-XT-CC
55 to +85C ISO 17025 CalibrationCR1000X-XT-IC

Qty

Select a configuration to add to your quote

Model:: CR1000X
Item Number:: CR1000X
Warranty:: 3 years
Lead time:: 14 days

Overview

Measurement & Control Module (Operating Range -40 to +70C)

The CR1000X is our flagship data logger that provides measurement and control for a wide variety of applications. Its reliability and ruggedness make it an excellent choice for remote environmental applications, including weather stations, mesonet systems, wind profiling, air quality monitoring, hydrological systems, water quality monitoring, and hydrometeorological stations.

The CR1000X is a low-powered device that measures sensors, drives direct communication and telecommunications, analyzes data, controls external devices, and stores data and programs in onboard, nonvolatile storage. The electronics are RF-shielded by a unique sealed, stainless-steel canister. A battery-backed clock assures accurate timekeeping. The onboard, BASIC-like programming language, common to all contemporary Campbell Scientific data loggers, supports data processing and analysis routines.

Key Advantages

Flagship Data Logger
Accurate, rugged, reliable

Technical Description

The CR1000X is a low-powered device designed to measure sensors, drive direct communication and telecommunications, analyze data, control external devices, and store data and programs in on-board, non-volatile storage. The electronics are RF-shielded and glitch-protected by a unique sealed, stainless-steel canister. A battery-backed clock assures accurate timekeeping. The on-board, BASIC-like programming language—common to all Campbell Scientific data loggers—supports data processing and analysis routines.

The CR1000X wiring panel includes two switchable 12 V terminals, analog grounds dispersed among 16 analog terminals, and unpluggable terminal blocks for quick deployment.

Benefits

Operational in extreme environments with a standard operating range of -40° to +70°C and an extended operating range of -55° to +85°C
Connects directly to a computer's USB port
Captures quickly changing data values with fast analog measurement capabilities (300+ Hz)
Differentiates even slight changes in data values with higher-resolution measurements (24 bit Adc)
Includes two non-isolated current input channels for directly connecting sensors with 0-to-20 mA or 4-to-20 mA current outputs
Contains an onboard CPI port for hosting Campbell high-speed sensors and distributed modules (CDM)
Directly connects to Ethernet
Includes microSD card drive for extended memory requirements
Provides simple serial sensor integration and measurement with SDI-12, RS-232, and/or RS-485
Supports full PakBus networking
Includes embedded web page for direct connection via web browser

Specifications

-NOTE-: Additional specifications are listed in the CR1000X Specifications Sheet.
Operating Temperature Range: -40° to +70°C
(standard)
Operating Temperature Range: -55° to +85°C
(extended)
Operating Temperature Range: Non-condensing environment
Maximum Scan Rate: 1000 Hz
Case Material: Anodized aluminum
Analog Inputs: 16 single-ended or 8 differential
(individually configured). Two analog inputs can measure 4 to 20 mA or 0 to 20 mA natively. Four analog inputs can provide pulse/digital I/O functions.
Pulse Counters: 10
(P1 to P2 and C1 to C8)
Voltage Excitation Terminals: 4
(VX1 to VX4)
Maximum Source/Sink Current: ±40 mA
(voltage excitation)
Maximum Source/Sink Current: 50 mA
(switched regulated)
Communications Ports: Ethernet
Communications Ports: USB Micro B
Communications Ports: CS I/O
Communications Ports: RS-232
Communications Ports: RS-422
Communications Ports: CPI
Communications Ports: RS-485
Data Storage Ports: microSD
Switched 12 Volt: 2 terminals
Digital I/O: 8 terminals (C1 to C8) configurable for digital input and output.
Includes status high/low, pulse width modulation, external interrupt, edge timing, switch closure pulse counting, high-frequency pulse counting, UART, RS-232, RS-485, SDM, SDI-12, I2C, and SPI function. Terminals are configurable in pairs for 5 V or 3.3 V logic for some functions.
Input Limits: ±5 V
Analog Voltage Accuracy: Accuracy specifications do not include sensor or measurement noise.
Analog Voltage Accuracy: ±(0.04% of measurement + offset)
at 0° to 40°C
Analog Voltage Accuracy: ±(0.06% of measurement + offset)
at -40° to +70°C
Analog Voltage Accuracy: ±(0.08% of measurement + offset)
at -55° to +85°C (extended temperature range)
ADC: 24-bit
Power Requirements: 10 to 18 Vdc input
(See manual for further details.)
Real-Time Clock Accuracy: ±3 min. per year
(Optional GPS correction to ±10 µs)
Internet Protocols: Ethernet, PPP, RNDIS, ICMP/Ping, Auto-IP (APIPA), IPv4, IPv6, UDP, TCP, TLS (v1.2), DNS, DHCP, SLAAC, Telnet, HTTP(S), SFTP, FTP(S), POP3/TLS, NTP, SMTP/TLS, SNMPv3, CS I/O IP, MQTT
Communications Protocols: CPI, PakBus, SDM, SDI-12, Modbus, TCP, DNP3, UDP, NTCIP, NMEA 0183, I2C, SPI, and others
Battery-backed SRAM for CPU Usage & Final Storage: 4 MB
Data Storage: 4 MB SRAM + 72 MB flash
(Storage expansion of up to 16 GB with removable microSD flash memory card.)
Idle Current Drain, Typical: < 1 mA
(@ 12 Vdc)
Active Current Drain, Typical: 1 mA
(1 Hz scan @ 12 Vdc)
Active Current Drain, Average: 55 mA
(20 Hz scan @ 12 Vdc)
Dimensions: 23.8 x 10.1 x 6.2 cm
(9.4 x 4.0 x 2.4 in.)
Additional clearance required for cables and leads.
Weight: 0.86 kg
(1.9 lb)
