RJ45 Pin (Male) to Terminal Dongle Data Cable
31897
OrderableRJ45 Pin (Male) to Terminal Dongle Data Cable
Overview

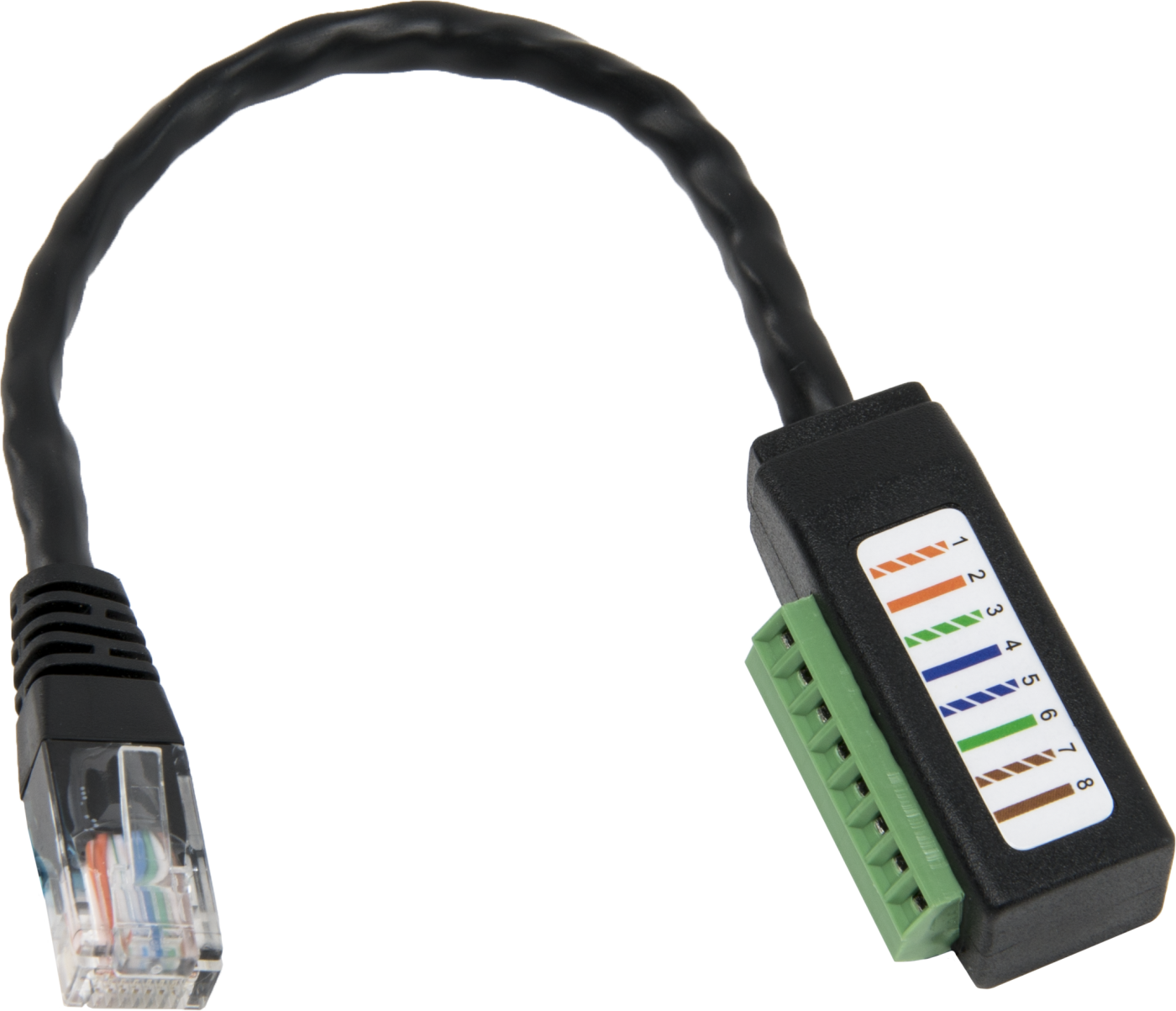

CABLE DATA RJ45 to 8-Pin Terminal Adapter, 15cm (6 Inch)
The 31897 can be plugged into the RJ45 RS-232 port on a CR6 or CR1000X/Xe datalogger to connect the data logger to an RS-232 sensor.
Technical Description
Pinout Description
| PN 31897 | |
|
Pin # |
Description |
|
1 (Orange/White) |
Transmit (Tx) |
|
2 (Orange) |
Receive (Rx) |
|
3 (Green/White) |
100 Ω Res Ground |
|
4 (Purple) |
Data A (CPI) |
|
5 (Purple/White) |
Data B (CPI) |
|
6 (Green) |
100 Ω Res Ground |
|
7 (Brown/White) |
Sync B |
|
8 (Brown) |
Sync A |
Specifications
- Cable Length
- 15.24 cm
(6.0 in.)
- Total Length
- 21.84 cm
(8.6 in.)
- Weight
- 27.22 g
(0.06 lb)
