SC110
SC110
OrderableTwo Cables, RS-232 to Data Logger Control Port
Overview

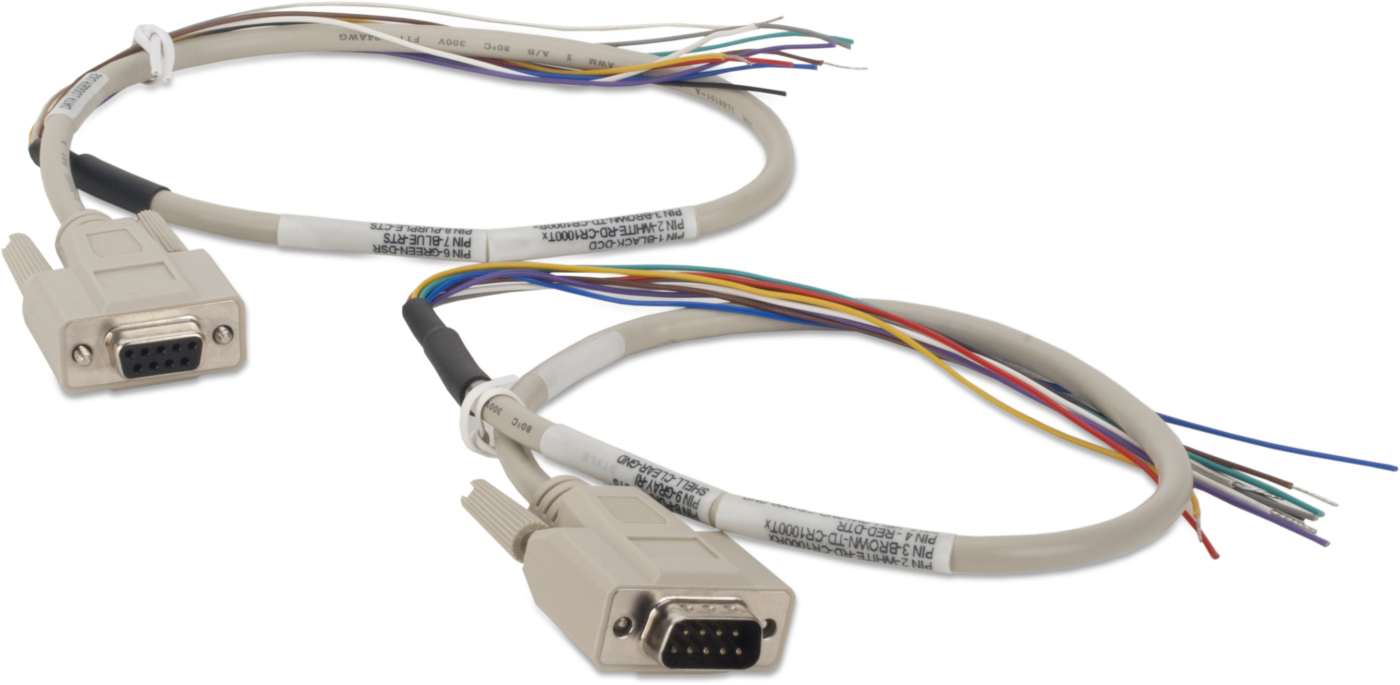

The SC110 consists of two cables to connect a data logger with RS-232 DCE and DTE devices. One end of each cable provides stripped, tinned leads for attachment to the control ports on a CR800, CR850, CR1000, CR3000, CR6, or CR1000X/Xe datalogger. On the other end, one of the cables is fitted with a 9-pin pin (male) connector, and the other cable is fitted with a 9-pin socket (female) connector.
Technical Description
The SC110 provides (1) 17855 DTE Cable and (1) 17856 DCE Cable. On one end, both cables have stripped and tinned leads that connect to the COM ports of a CR800, CR850, CR1000, CR3000, CR6, or CR1000X. On the other end, the 17855 DTE cable has a 9-pin pin (male) connector, and the 17856 DCE cable has a 9-pin socket (female) connector. By having two cables, connection to either an RS-232 DCE or DTE device is supported—depending on the cable used.
Stripped-Tinned Leads:
| Lead Color | Desc. | 17855 Connection |
17856 Connection |
| White | pin 2 | Rx on logger | Tx on logger |
| Brown | pin 3 | Tx on logger | Rx on logger |
| Yellow | pin 5 | Gnd on logger | Gnd on logger |
| Clear | shield | Gnd on logger | Gnd on logger |
Benefits
- Connects RS-232 ports on devices to stripped wire ends that can connect to data loggers
Specifications
- Length
- 0.6 m
(2 ft) for each cable
- Weight
- 0.1 kg
(0.3 lb)
