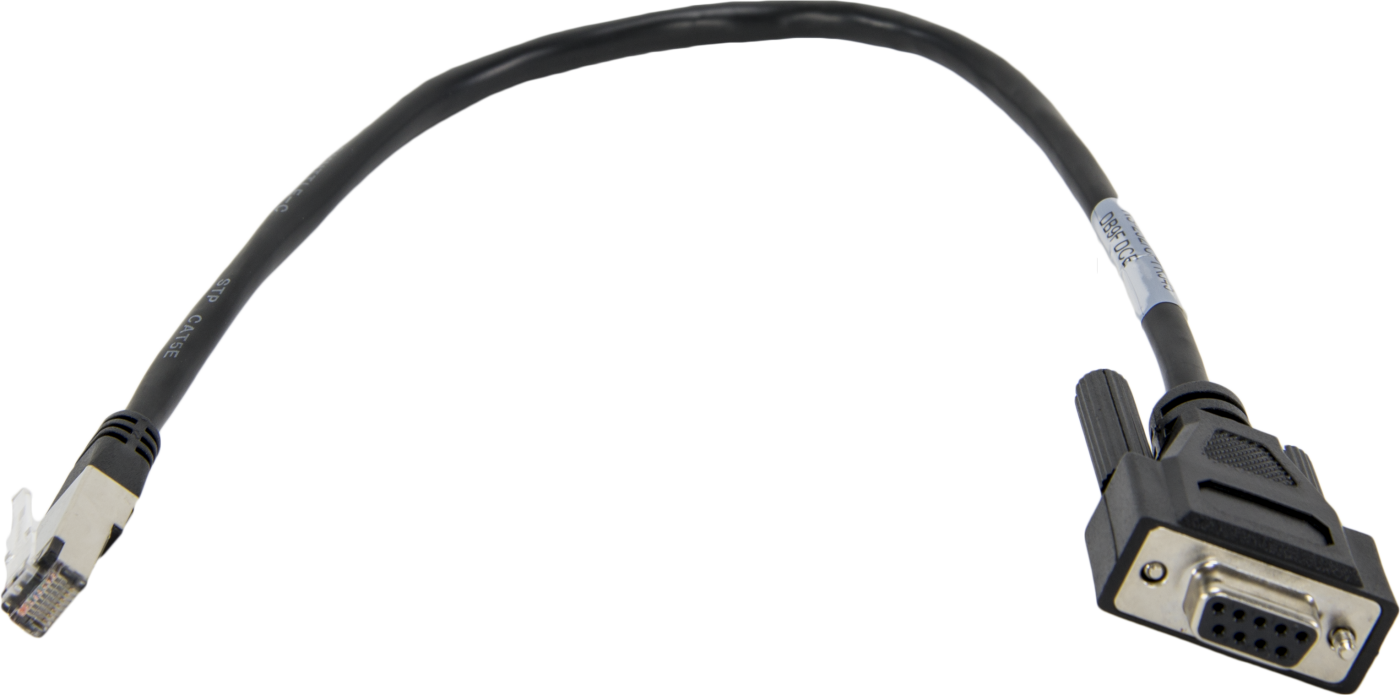

CPI/RS-232 Data Cable, RJ45 to DB9 Socket (Female)
31056
OrderableCPI/RS-232 Data Cable, RJ45 to DB9 Socket (Female)
Overview
CABLE CPI/RS-232 RJ45 to DB9 Female Cable, 0.3m (1ft)
The 31056 adapts an RS-232/CPI RJ45 port to a DB9 socket (female) connector. This cable is offered to make it easier to connect a DTE serial device, such as a computer or terminal server, to the RS-232/CPI port.
Note: The RS-232/CPI port does not follow the popular EIA/TIA-561 or Cisco console port standard pin assignments. Use pn 31055 or 31056 when using the RS-232 functionality of an RS-232/CPI port.
Technical Description
Pinout Description
| RJ45 CPI Bus | PN 31056 RJ45 to RS-232 9-pin Socket (Female) |
||
|
Pin # |
Description |
Pin # |
Description |
|
1 |
Transmit (Tx) |
2 |
Receive (Rx) |
|
2 |
Receive (Rx) |
3 |
Transmit (Tx) |
|
3 |
Ground |
5 |
Ground |
|
4 |
Not Used |
N/C |
No Connection (N/C) |
|
5 |
Not Used |
N/C |
No Connection (N/C) |
|
6 |
Ground |
5 |
Ground |
|
7 |
Sync B |
6 |
Data Set Ready (DSR) |
|
8 |
Sync A |
7 |
Request to Send (RTS) |
|
Shell |
Ground |
Shell |
Ground |
Specifications
- Connector 1
- RJ45 (8P8C) plug
- Connector 1
- Molded boot
- Connector 2
- DB9 socket (female)
- Connector 2
- DTE interface
- Connector 2
- TD/RD/DCD/DSR/RTS/GND
- Connector 2
- Molded hood with thumb screws
- Color
- Black
- Compliance
- RoHS Compliant
- Cable Length
- 30.48 cm
(12 in.)
- Weight
- 45.36 g
(0.1 lb)
