CD100
CD100
OrderableGSAMountable Display with Keypad
Overview

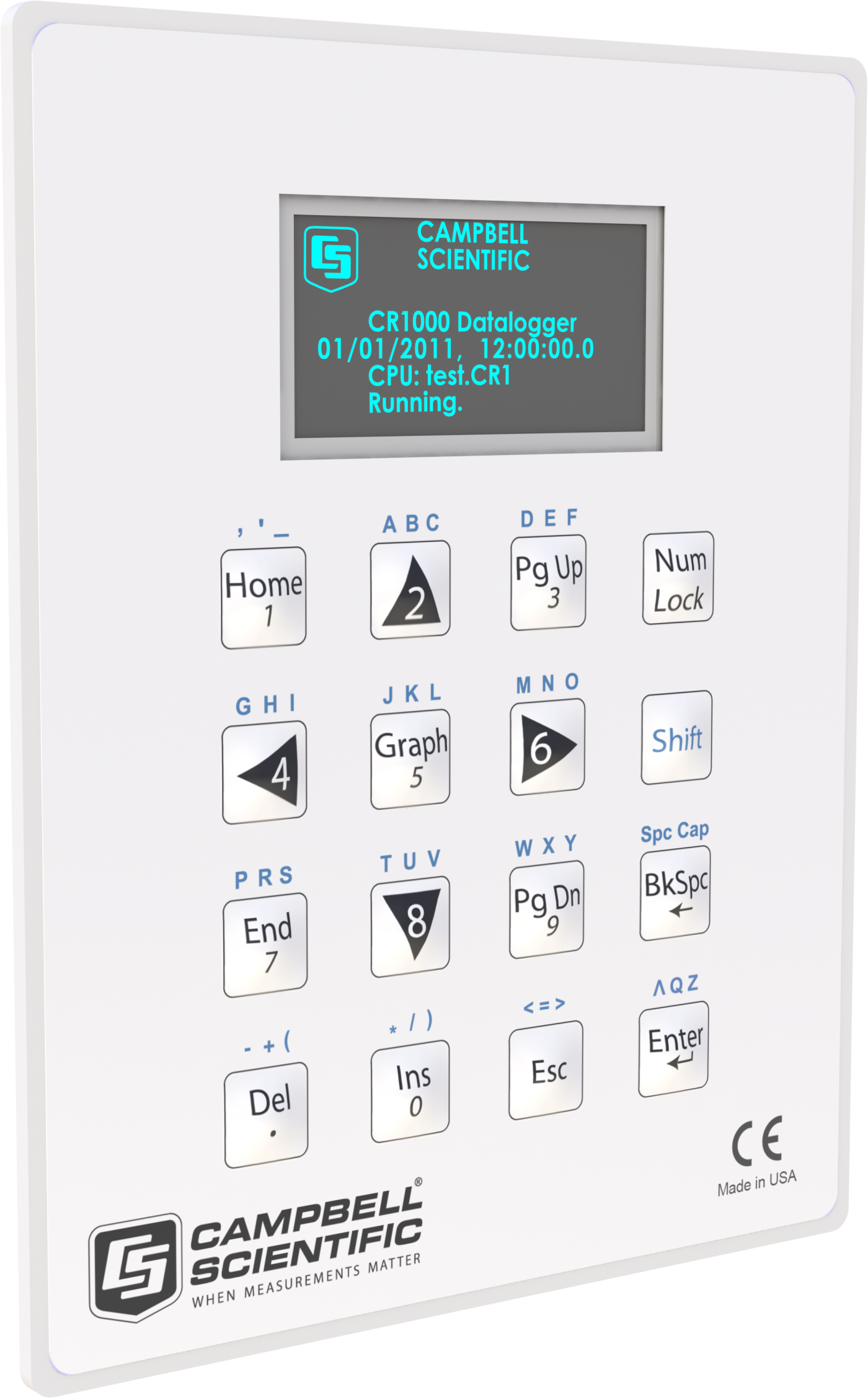

The CD100 is a mountable display with a keypad for data logger data entry and display. It has a vacuum fluorescent display for responsive use through a wide operating temperature range. You can operate it the same as the CR1000KD.
Key Advantages
Read data and enter instructions without opening enclosure
Technical Description
The CD100 has a 16-character keypad and a display that can show 8 lines by 21 characters (64 by 128 pixels). The keypad's design permits operation with a gloved hand. Security can be set in the data logger to prevent unauthorized personnel from accessing the data.
The CD100 is both water and dust protected, providing an IP66 rating when installed in the enclosure lid.
Custom Menus and Displays
Menus for the CD100 can be customized to simplify routine operations. Viewing data, toggling control functions, or entering notes are common applications. Individual menu screens support up to eight lines of text with up to seven variables.
Benefits
- Without opening the enclosure, check the data logger's status, display or plot sensor readings, and stored values, as well as enter numeric data
- Supports custom menus and displays to simplify routine operations
- Provides water and dust ingress protection rating IP66 when installed in enclosure lid
Specifications
- Display/Keyboard Description
- Vacuum fluorescent
- Display/Keyboard Description
- 8 lines x 21 characters
(64 x 128 pixels) display and 16-character keyboard
- Keypad
- 16 key, alphanumeric
- Interface
- CS I/O, SDC address 2
- Power Requirements
- Powered from the data logger's CS I/O port.
- Water & Dust Ingress Protection Rating
- IP66
(when installed in enclosure lid)
- Temperature Range
- -45° to +85°C
(operating)
- Temperature Range
- -50° to +85°C
(storage)
- Temperature Range
- -60° to +85°C
(1 h) transit
- Dimensions
- 17.5 x 13.7 x 3.6 cm
(6.9 x 5.4 x 1.4 in.)
- Weight
- < 0.5 kg
(< 1 lb)
Current Drain
- Quiescent
- Negligible
(0.02 mA)
- Active
- 140 mA
