RF407

Name: RF407
Brand: Campbell Scientific
SKU: 30578
Availability: InStock

900 MHz Spread-Spectrum Radio

RF407

OrderableGSA

900 MHz Spread-Spectrum Radio

Up to 3-to-4-mile range in ideal conditions.

Pricing

Qty

Model:: RF407
Item Number:: 30578
Warranty:: 1 year
Lead time:: 7 days

Overview

RF407 900MHz Spread Spectrum Radio (-40 to +70C) (Ships as 30583, 16675, & 17648)**

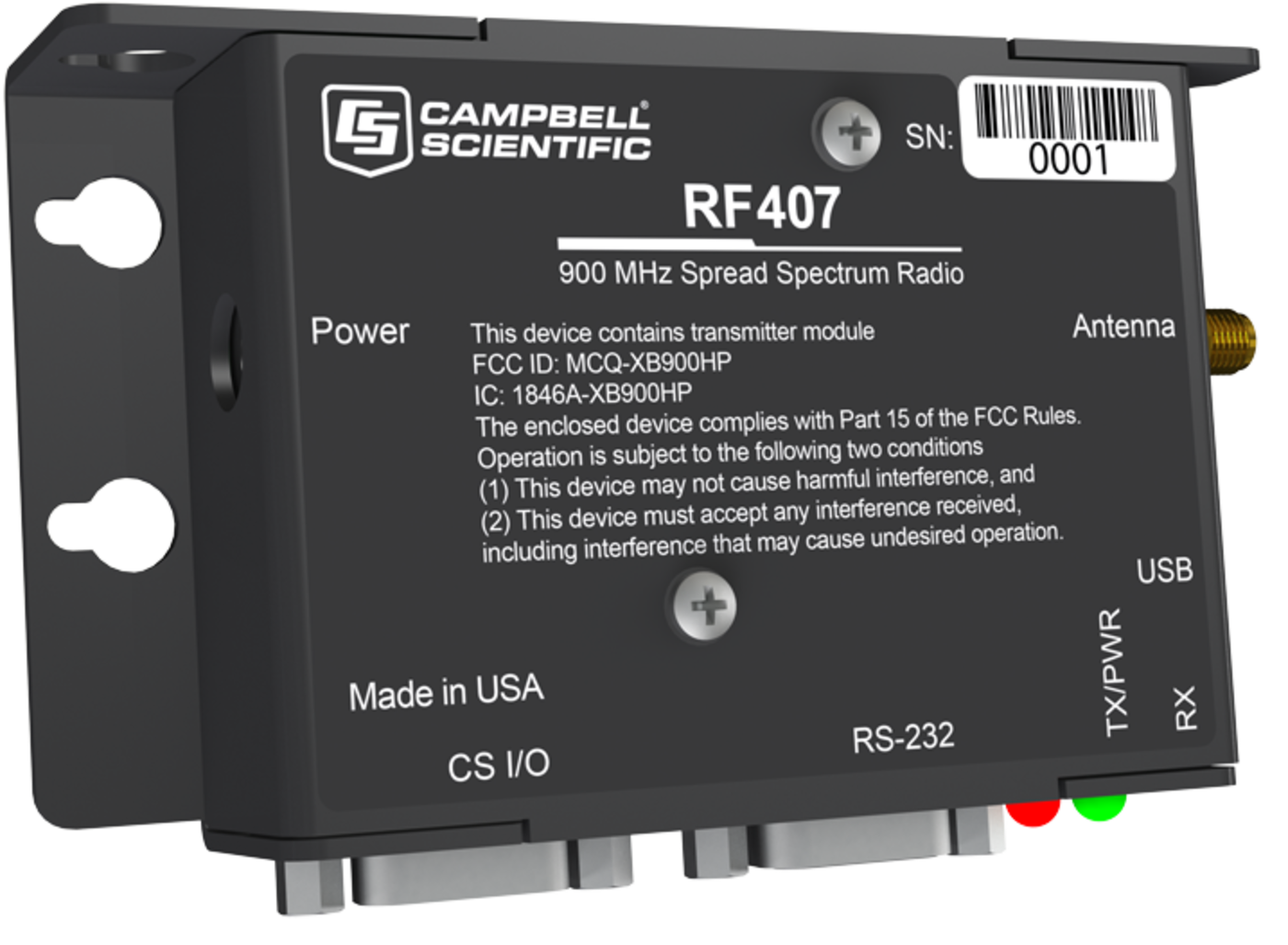

The RF407 is a high-speed 900 MHz serial radio designed for unlicensed operation in several countries, including the United States and Canada. The RF407 is a 902 to 928 MHz frequency-hopping spread-spectrum radio with a configurable transmit-power output of 5 to 250 mW and software-selectable channel masking for improved RF interference immunity. This power-sipping, yet speedy, radio provides a cost-effective way to network data loggers.

The RF407 is part of the RF407 series of radios that includes:

RF407: North America (FCC & IC), 902 to 928 MHz
RF412: Australia (ACMA RCM), 915 to 928 MHz
RF422: Most of Europe and some of Asia (ETSI), 863 to 870 MHz
RF427: Brazil (ANATEL), 905/920 MHz

Note to RF401A users: The RF401A is factory upgradeable to an RF407. Contact Campbell Scientific for a Return Material Authorization (RMA).

Benefits

Does not require individual operational license in the United States or Canada
High-speed serial communication, optimized for PakBus networks
Low power (< 2 mA idle) during periods of inactivity
Supports point-to-point with RF retries and point-to-multipoint operations
Remote diagnostics using PakBus node operations

Specifications

Radio Type: Frequency Hopping Spread Spectrum (FHSS)
Frequency: 902 to 928 MHz
Country Used In: US, Canada
Transmission Distance: -Note- Transmission distance assumes line-of-sight and appropriate antenna. Line-of-sight obstructions, RF interference, and antenna type will affect transmission distance.
Transmission Distance: Up to 1.61 km (1 mi) with omnidirectional antenna; up to 16.09 km (10) mi with higher-gain directional antennas at ideal conditions
Power Output: 5 to 250 mW
(software-selectable)
Receiver Sensitivity: -101 dBm
Channel Capacity: Eight 25-channel hop sequences sharing 64 available channels
Data Rate: 200 kbps
Link Throughput: 105 kbps
(maximum)

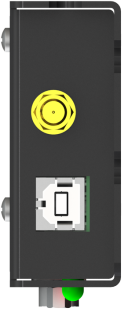

Antenna Connector: Reverse Polarity SMA (RPSMA) jack
LEDs: Red TX/PWR and green RX
RS-232 Baud Rate: 1200 to 115200 bps
CS I/O Modes: SDC 7, 8, 10, 11, and ME master
Operating Temperature Range: -40° to +70°C
Power: 9 to 16 Vdc
Power Connector: 2.5 mm DC power jack
Powered Over: CS I/O or barrel plug
Average Current Drain: Transmit: < 80 mA
(250 mW TX Power)
Average Current Drain: Receive: 15 mA
Average Current Drain: Stand-by: < 0.5 mA
(depending on power-saving mode)
Communication Ports: RS-232 9-pin D female
Communication Ports: CS I/O 9-pin D male
Communication Ports: USB Type B jack
Maximum Nodes in Network: 50
Service Requirements: Shares frequency with other devices.
Must not cause harmful interference to licensed radios. Requires line-of-sight.
Dimensions: 11.1 x 6.9 x 2.7 cm
(4.4 x 2.7 x 1.1 in.)

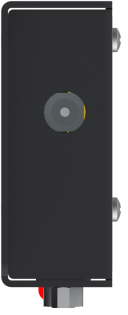

Dimension are from the tip of the antenna connector to the other side of the case, and from the bottom of the case to the top of the DB9 connector jack screw. The width includes the thickness of the screw heads on the screws that hold the case together.
Weight: 136 g
(4.8 oz) without "Ships With" items
Weight: 283.5 g
(10 oz) with "Ships With" items
