DCP200
DCP200
End of lifeConfigurableGOES Data Collection Platform
Pricing
- Model:
- DCP200
- Item Number:
- 18664
- Warranty:
- 1 year
- Lead time:
- 21 days
- Compliance:
- includes CR295X, TX320, enclosure, and power
Overview
The DCP200 is a Data Collection Platform (DCP) designed specifically for stream stage, water quality, and rainfall applications. This system measures the sensors, processes the measurements, then transmits the data to a receiving station via the GOES system.
Key Advantages
Allows communication from extremely remote locations
Technical Description

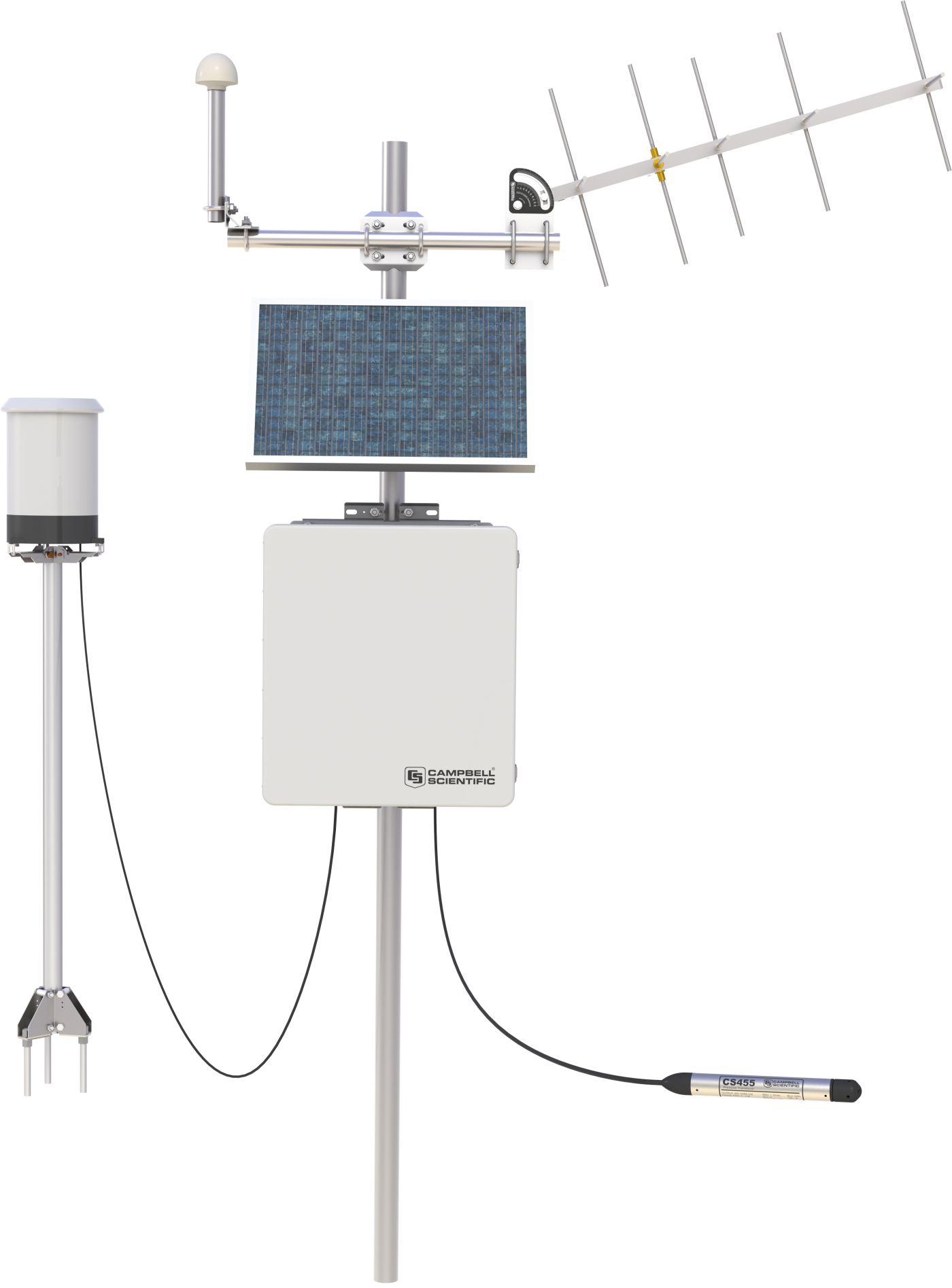

The DCP200 consists of our CR295X datalogger, TX320 HDR GOES satellite transmitter, Yagi antenna, GPS antenna, ENC16/18 enclosure, antenna cables, power supply, and software. The TX320 transmitter supports data transmission rates of 300 and 1200 bps. Because clock accuracy is critically important for GOES satellite telemetry, the TX320 includes a robust, TCXO-based real-time clock and a GPS receiver.
Retrieving Data from the Ground Receiving Station
Choose one of the following methods:
- Internet (see NESDIS for requirements)
- Domsat
- LRGS
- DRGS (Direct Readout Ground Station)
Benefits
- Transmission rates of 300 and 1200 bps
- Transmitter certified as High Data Rate version 2 compliant
- Up to 28 days of operation between GPS fixes
- Makes SDI-12, single-ended analog, pulse, switch closure, and bridge measurements
- Automatic GPS correction of clock and oscillator
- Diagnostics and status information that can be sampled by the data logger and transmitted as part of the data stream
- Independent self-timed and random data buffers
Specifications
- -NOTE-
- The DCP200 has components that have their own specifications.
To review these specifications, refer to the appropriate products below:TX320 satellite transmitterCR295X datalogger25316 Yagi antenna17992 GPS antennaBP24 battery packSP20 solar panelCH100 regulatorENC16/18 enclosure
