CH100
CH100
End of lifeConfigurable12 V Charging Regulator
Pricing
- Model:
- CH100
- Item Number:
- CH100
- Warranty:
- 1 year
- Lead time:
- 21 days
- Compliance:
- requires charging source and battery
Overview

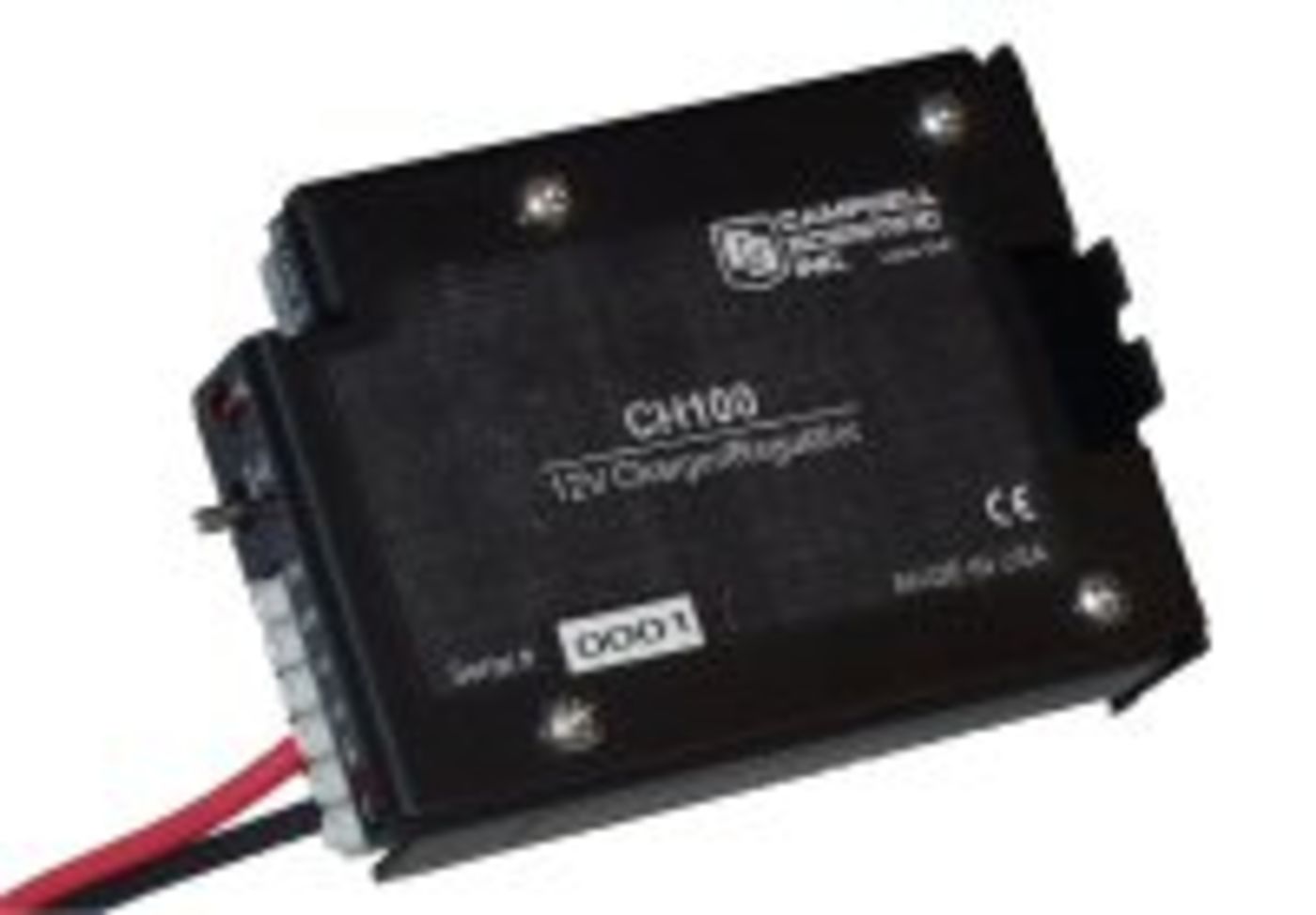

The CH100 is a charging regulator for 12-V rechargeable batteries. This regulator provides built-in temperature compensation to optimize battery performance. It is commonly used when a rechargeable battery is required for the application and the PS150 or PS12LA power supply (7 Ahr) does not contain enough reserve amp-hours for the power supply budget.
Key Advantages
Technical Description
The CH100 regulator connects the BP12, BP24, or other sealed rechargeable battery to an external charging source (e.g., solar panel, wall charger). The circuitry of the CH100 is similar to the PS100, but the CH100 does not include a rechargeable battery. The rechargeable battery must be capable of accepting recharge from a trickle-charge source.
The CH100 controls the current flowing to the battery and prevents the battery current from flowing to the charging source.
Specifications
- input Voltage (CHG Terminals)
- 15 to 28 Vdc or 18 Vac RMS
- Charging Output Voltage
- Temperature-compensated float charge
(for 12 Vdc battery)
- Charging Current Limit
- 1.2 A
(typical)
- Power Out (+12 Terminals) Voltage
- Unregulated 12 Vdc from battery
- Length of Red and Black Wires
- ~30 cm
(12 in.)
- Dimensions
- 10.2 x 7.0 x 3.9 cm
(4.0 x 2.8 x 1.5 in.)
- Weight
- 158 g
(5.5 oz)
Quiescent Current
- Charge Source Present
- 3 to 5 mA
- No Charge Source Present
- 0 mA
Accessories
(16)BP12
12 Ah 12 V Sealed Rechargeable Battery with Mounts
OrderableA100
Null Modem Adapter for Rechargeable Power Supplies
OrderableBP24
24 Ah 12 V Sealed Rechargeable Battery
OrderableA105
12 V Terminal Expansion Adapter for PS1X0/200 or CH1X0/200
Orderable15988
Wall Charger
Orderable29796
1.67 A 24 V Power Supply
Retired22110
1.67 A 24 V Power Supply with Connector for PWENC Enclosures
Retired17200
Battery Power Cable for PS100 or PS150
Retired6186
External Battery Cable for CH150, CH200, PS150, or PS200
RetiredBP7
7 Ah 12 V Sealed Rechargeable Battery
OrderableSP10
10 W Solar Panel
OrderableSP20
20 W Solar Panel
OrderableSP10-PW
10 W Solar Panel for PWENC
End of lifeSP20-PW
20 W Solar Panel for PWENC
End of life22111
Wall Charger for PWENC, Universal Input
End of life39177
1.67 A 24 Vdc Power Supply
Orderable
