CR295X

Datalogger for GOES Satellite Communication

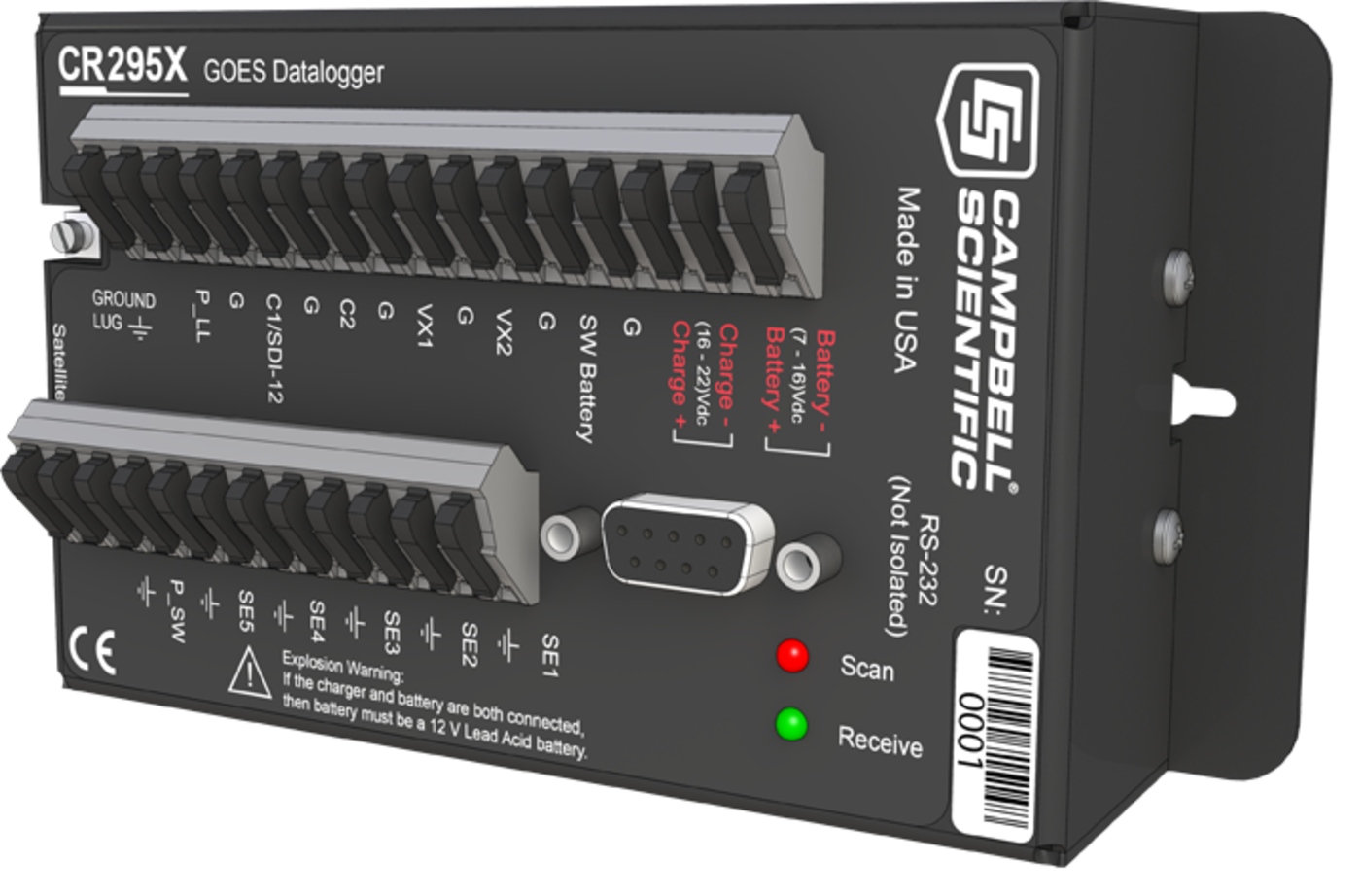

multi image upload

CR295X

Retired

Datalogger for GOES Satellite Communication

Pricing

Sign in for pricing
Model:
CR295X
Item Number:
21946
Warranty:
3 years

Overview

CR295X GOES Datalogger (-40 to +50C)

The CR295X is a small, low-cost data logger that reads input from one or two sensors, then transmits the data using the GOES satellite transmitter. Multiple CR295Xs can be configured as a network, or units can be deployed individually. CRBasic, its full programming language, supports simple or complex programming and many onboard data reduction processes. It supports stand-alone operation in harsh, remote environments.

Key Advantages

Lowest-Cost Data Logger for Use With Satellite
Good for SDI-12 measurements

Technical Description

The CR295X includes an additional RS-232 serial port that allows communications with the TX320, TX312, or SAT HDR GOES satellite transmitter. It has several input channels for measuring a variety of sensors. Gas discharge tubes provide rugged electrostatic discharge protection for the inputs.

The CR295X does not make differential measurements and is not compatible with SDM devices, multiplexers, or thermocouples. (Refer to the Compatibility information on the web page for compatible sensors, peripherals, and software.) Recalibration services are not offered for the CR295X dataloggers.

Benefits

  • Small, low-cost data logger designed for use with GOES satellite transmitters
  • When combined with the TX320 GOES satellite transmitter, the CR295X can be used in extremely remote locations.
  • Ideal applications include wind energy, rural water, water level/flow, aquaculture, water quality
  • Gas Discharge Tube (GDT) protected inputs
  • Optimal for measuring one or two simple sensors
  • Makes SDI-12, single-ended analog, pulse, switch closure, and bridge measurements
  • Battery-backed clock that ensures accurate time is maintained while data logger is disconnected from battery power
  • Program with LoggerNet, PC400, or Short Cut to fit your setup
  • PakBus, Modbus, and SDI-12 protocols supported

Specifications

-NOTE-
Note: Additional specifications are listed in the CR200X-Series Specifications Sheet.
Maximum Scan Rate
1 Hz
Analog Channels
The single-ended analog inputs can also be used as control ports.
Analog Channels
5 single-ended (no differential)

individually configured

Pulse Count Channels
2
Switched Excitation Channels
2 voltage
Digital Ports
Certain digital ports can be used to count switch closures.
Digital Ports
2 I/O
Communication Ports
2 RS-232
Switched Battery Port
1
Input Voltage Range
0 to 2500 mV
Analog Voltage Accuracy
±(0.25% of reading + (1.2 mV)x(offset))

at -40° to +50°C

Analog Voltage Resolution
0.6 mV
A/D Bits
12
Operating Temperature
-40° to +50°C
Power Requirements
7 to 16 Vdc
Typical Current Drain
~0.2 mA

(quiescent)

Typical Current Drain
~3 mA

(active)

Clock Accuracy
8.2 min./month

(@ -40° to +50°C)

Clock Accuracy
1 min./month

(@ +25°C)

Protocols Supported
PakBus (leaf node only), SDI-12
Warranty
3 years
Dimensions
14.0 x 7.6 x 4.8 cm

(5.5 x 3.0 x 1.9 in.)

Weight
242 g

(8.5 oz)

Memory

Final Storage
512 kB of flash memory for approximately 125,000 data points
Operating System
106 kB of flash memory
Intermediate Storage
8 kB of SRAM for communication buffers, calculations, variables, etc.
