ENC16/18

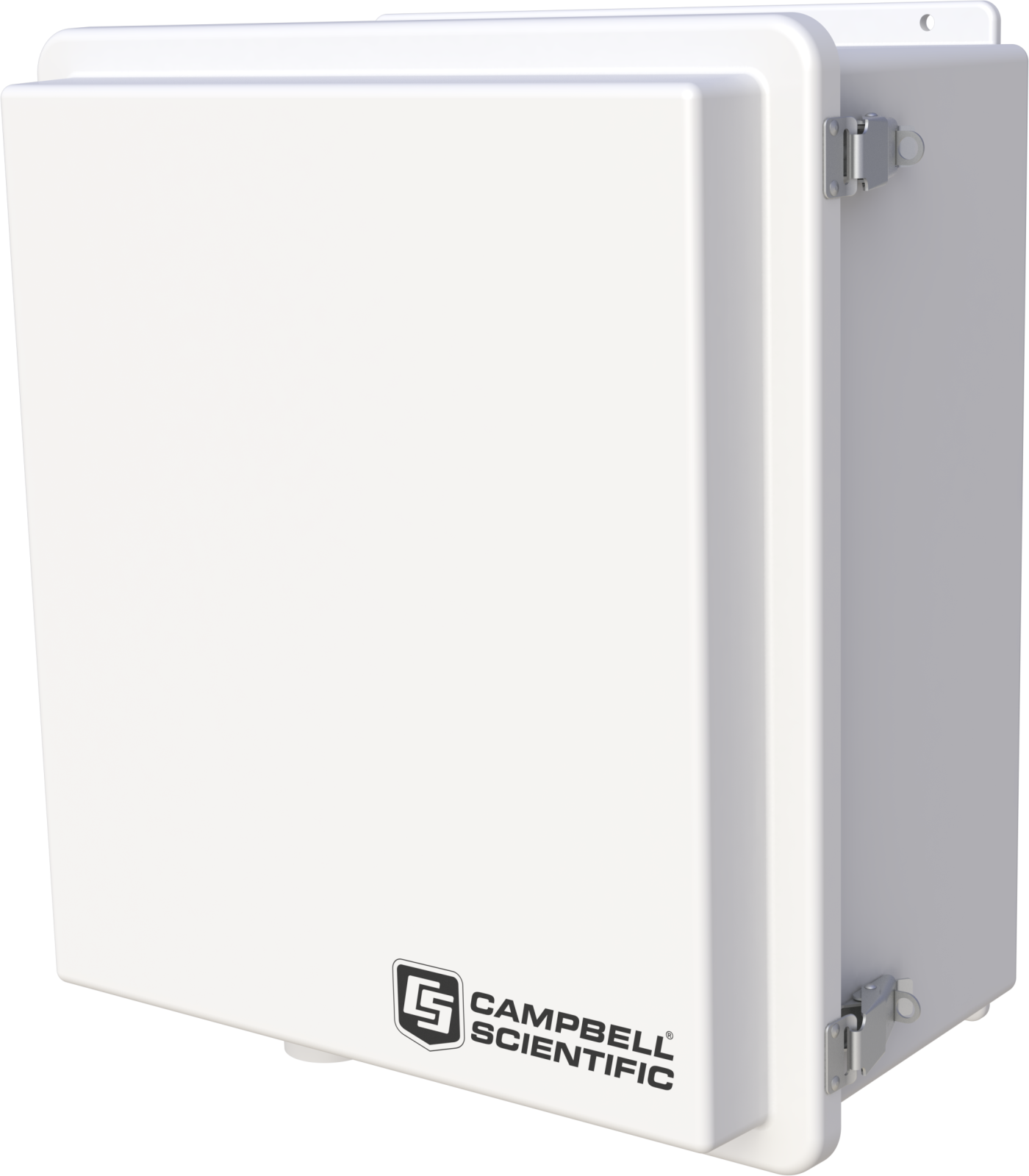

Weather-Resistant Enclosure, 16 x 18 inches
Automated

ENC16/18

OrderableConfigurable

Weather-Resistant Enclosure, 16 x 18 inches

Pricing

Pricing temporarily unavailable.

Configuration

Select a configuration to add to your quote

Model:
ENC16/18
Item Number:
45229
Warranty:
1 year
Lead time:
14 days

Overview

Weather-Resistant 16 x 18 Inch Enclosure

The ENC16/18 is a weather-resistant enclosure that is 16 inches wide and 18 inches tall. It can house a data logger, a power supply, and at least one peripheral. This enclosure is recommended for applications that need to have multiple communication or measurement and control peripherals housed in the same enclosure.

Please note that a grounding wire is not included with the enclosure.

Key Advantages

Rugged, Versatile
Campbell components mount easily and securely

Technical Description

The ENC16/18's backplate is prepunched with half-inch-on-center holes suitable for attaching a data logger, power supply, and a communications or measurement and control peripheral.

This enclosure is shipped with the 7363 enclosure supply kit that consists of desiccant, a humidity indicator card, cable ties, wire tie tabs, putty, grommets, screws, and PVC coupling. Additionally, Campbell Scientific offers a CS210 Enclosure Humidity Sensor for monitoring relative humidity inside of the enclosure. (See Ordering Info on the web page.)

Benefits

  • Weather resistant to protect instruments
  • White, UV-stabilized enclosure reflects solar radiation—reducing temperature gradients inside the enclosure without requiring a separate radiation shield

Specifications

Color
White

(Reflects solar radiation, reducing temperature gradients inside the enclosure without using a separate radiation shield.)

Construction
Fiberglass-reinforced polyester enclosure with door gasket, external grounding lug, stainless-steel hinge, and lockable hasps
Enclosure Classification
NEMA 4X

(before being modified for cable entry)

Number of Cable-Entry Seals
2 large, 2 medium, 2 small
Dimensions
45.7 x 40.6 x 22.9 cm

(18 x 16 x 9 in.) internal

Dimensions
43.82 x 38.74 x 25.22 cm

(17.25 x 15.25 x 9.93 in.) internal under the lid space

Dimensions
49.53 x 44.4 x 26.98 cm

(19.5 x 17.48 x 10.62 in.) external

Weight
7.7 kg

(17 lb)
