22110
1.67 A 24 V Power Supply with Connector for PWENC Enclosures
22110
RetiredConfigurable1.67 A 24 V Power Supply with Connector for PWENC Enclosures
Best for use with PWENC enclosures.
Pricing
- Model:
- 22110
- Item Number:
- 22110
- Warranty:
- 1 year
- Lead time:
- 14 days
Overview
39177-PW-A 39177 Power Supply 24Vdc 1.67A Output, 100-240Vac 1A Input, 1.5m (5ft) Cable -PW w/Pre-Wire Connector -A w/Americas Plug

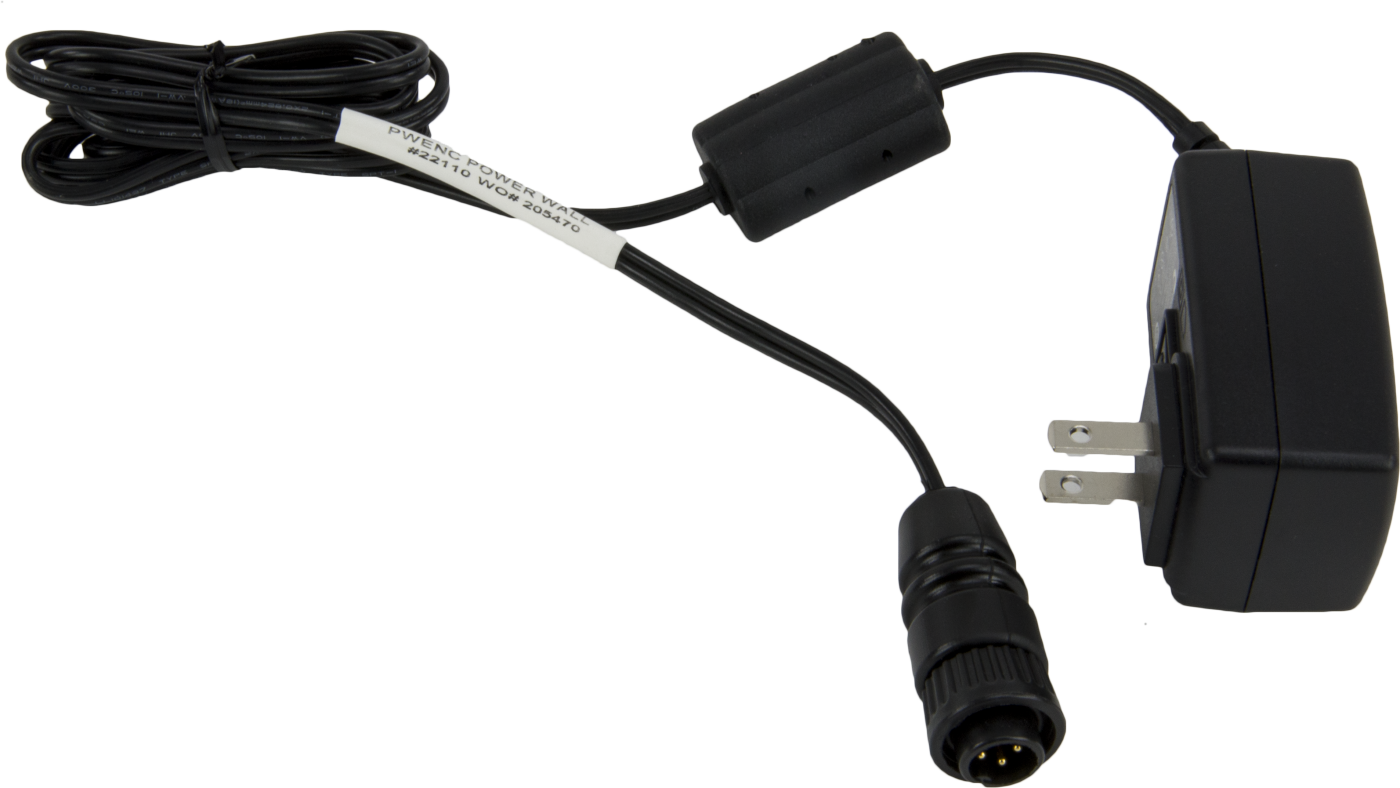

This wall charger is used to charge the batteries in our prewired enclosures. On one end the 22110 has a plug that inserts into a wall socket, and on the other end it has a connector that attaches to the prewired enclosure. The 22110 outputs 24 Vdc at 1.67 A and accepts 100 to 240 Vac, 47 to 63 Hz.
Technical Description
The 22110 is used with a prewired enclosure located in any other country where the ac outlet sources 100 to 240 Vac. It can recharge the sealed rechargeable battery of a PS150, PS200, BP12 (requires CH150 or CH200), BP24 (requires CH150 or CH200), CR3000, or CR5000.
Benefits
- Quick, secure connection to Campbell prewired enclosures for more efficient setup
- Auto-recovery upon removal of fault
Specifications
- Temperature Range
- -40° to +40°C
- Input Voltage
- 100 to 240 Vac
- Input Frequency
- 47 to 63 Hz
- Output Voltage
- 24 Vdc
- Maximum Output Current
- 1.67 A
- Standards
- UL60950-1 2nd Edition
- Weight
- 204.12 g
(0.45 lb)
