REDWING100
REDWING100
End of lifeAirLink CDMA Cellular Digital Modem
Pricing
- Model:
- REDWING100
- Item Number:
- REDWING100
- Lead time:
- 21 days
Overview

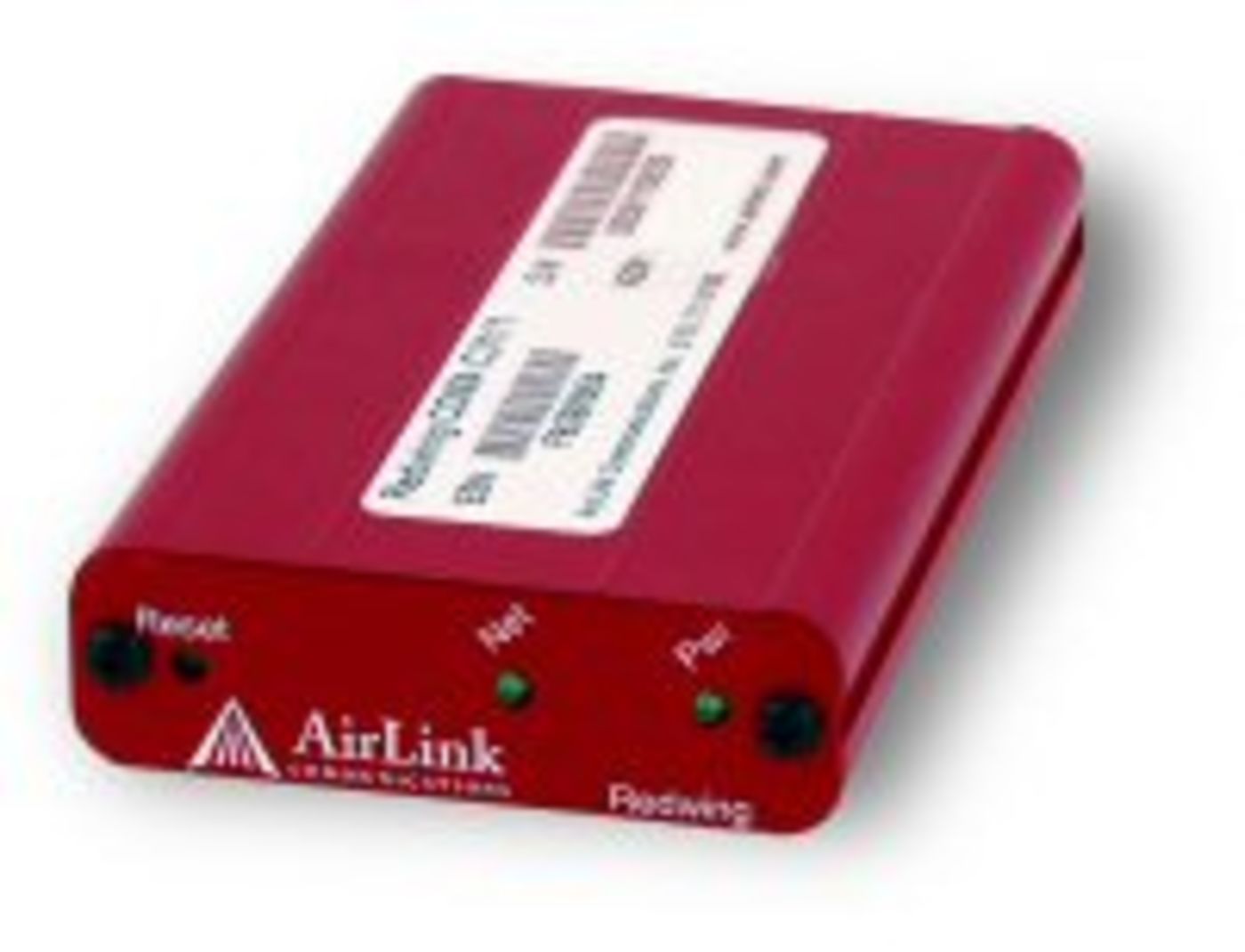

The Redwing100 was an Airlink product intended for Verizon cellular networks. This full-duplex modem transmitted data to the local cellular tower using a Code Division Multiple Access (CDMA) network. The customer's PC retrieved the data from the cellular tower using a telephone modem that accessed the standard telephone land-lines.
Specifications
- Operating Range
- -30° to +75°C
(with transmissions limited to a 10% duty cycle above 60°C)
- Humidity
- 5% to 95%
(non-condensing)
- RF Output
- 224 mW
(+23.5 dBm)
- Data Rates
- 9600 bps to 14.4 kbps
- Dual-band Support
- 800 MHz cellular, 1.9 GHz PCS bands
- IS-95B Circuit-Switched Mode
- G3 facsimile receive and transmit, Quick Net Connect (QNC) support
- Short Message Service
- Send and receive, notification of new messages
- Input Voltage
- 10 to 28 Vdc
- Input Current
- 20 to 350 mA
- Typical Current Drain @ 12 Vdc
- 20 mA dormant connection
(idle for 10 to 20 seconds)
- Typical Current Drain @ 12 Vdc
- 120 mA
(while receiving)
- Typical Current Drain @ 12 Vdc
- 120 mA
(during transmission)
- Serial Interface
- RS-232, DB-9F
- RF Antenna Connector
- 50 ohm TNC female
Accessories
(13)14453
800 MHz, 0 dBd 1/2 Wave Whip Dipole Cellular Antenna with TNC Pin (Male)
End of life10530
800 MHz 9 dBd Directional Antenna with Mounting Hardware
End of life18285
2 dBd Multi-Band Omnidirectional Antenna with Mounting Hardware
End of life20679
800 MHz/0 dBd and 1.9 GHz/3 dBd Omnidirectional Cell Antenna with Mounting Hardware
Retired31128
8 dBd Yagi Wideband Antenna with Mounting Hardware
Retired14468
Antenna Cable, Type N Pin (Male) to TNC Pin (Male), 10 ft
RetiredCM230
Adjustable Inclination Mounting Kit
Orderable21212
Black Cold Shrink Tape
Orderable18663
Null Modem Cable, 9-Pin PIn (Male) to 9-Pin Pin (Male)
OrderableSC932A
RS-232 DCE Interface, CS I/O to 9-Pin
OrderableSC105
CS I/O to 9-Pin RS-232 DCE Synchronous Interface
Orderable14394
Mounting Kit for Redwing and Raven Modems
Retired16987
Peripheral Mounting Kit
Orderable
Ships With
(2)- Airlink Manual
- Power cable from original mfg
