CM230
Adjustable Inclination Mounting Kit
CM230
OrderableGSAAdjustable Inclination Mounting Kit
Pricing
- Model:
- CM230
- Item Number:
- 17908
- Warranty:
- 1 year
- Compliance:
- for antennas & direction-sensitive devices
Overview

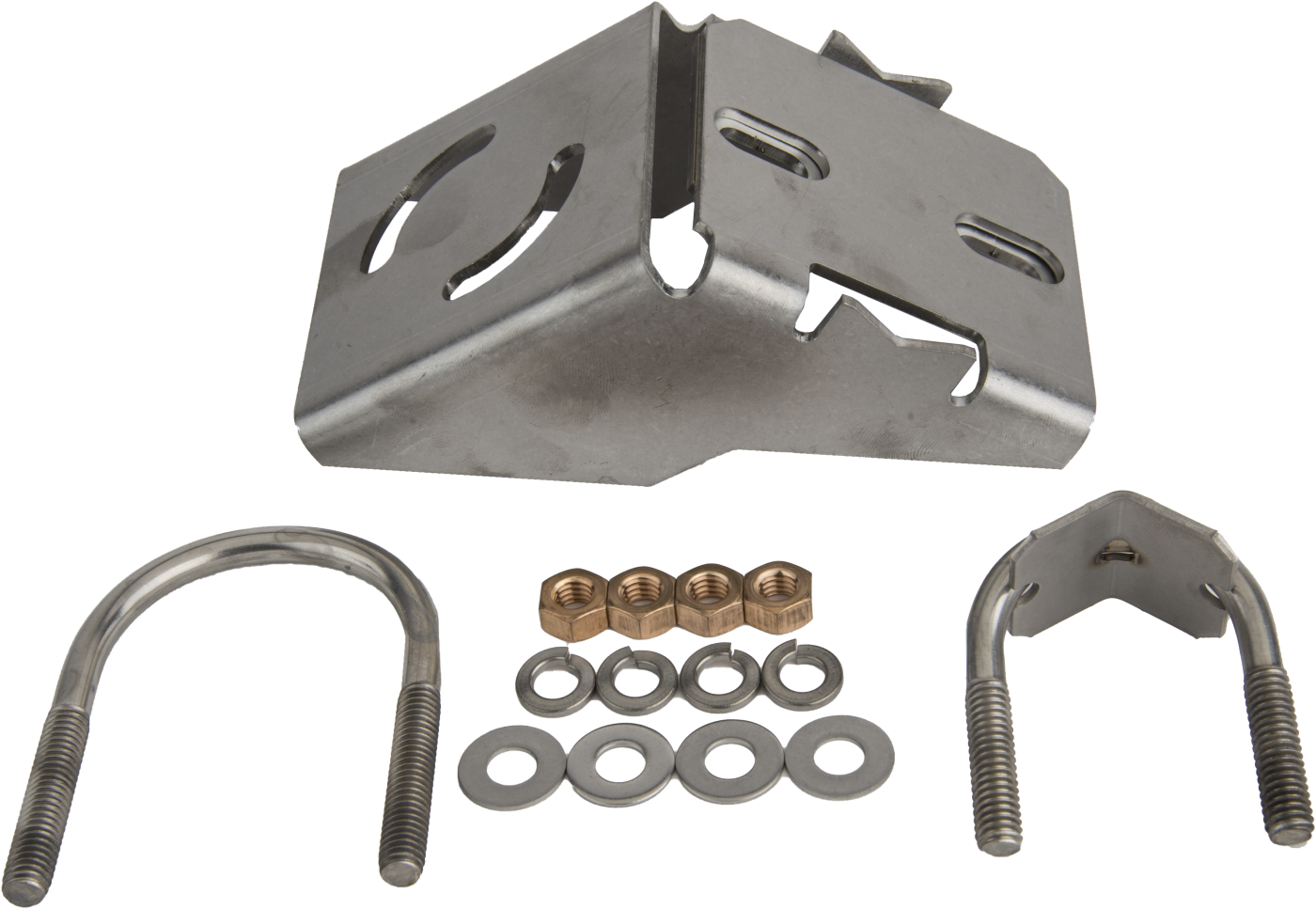

CM230 Adjustable Angle Mounting Kit**
The CM230 is an adjustable mount to point directional antennas or sensors at a specific target. The inclination can be adjusted to any angle from horizontal to vertical, supporting the use of upward-directed antennas or downward-directed infrared thermometers or snow-depth sensors.
Technical Description
The CM230 is typically attached to the mast of one of our tripods or towers, or in some applications to a user-supplied pipe. (See the Compatibility information.)
Specifications
- Material
- 12 gage, 304 stainless steel
- Wind
- Can withstand 241.4 kph (150 mph) wind with ice
- Dimensions
- 7.62 x 9.53 x 8.89 cm
(3.0 x 3.75 x 3.5 in.)
- Weight
- 0.34 kg
(0.75 lb)
