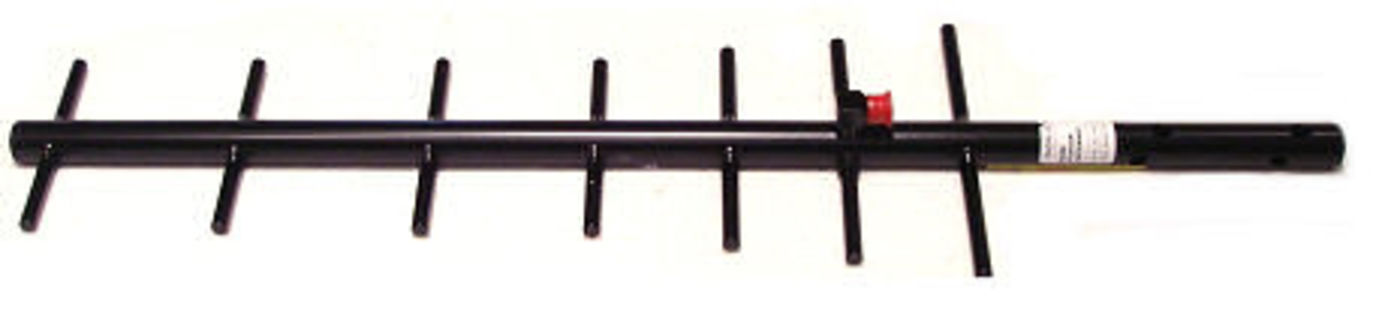

End of life800 MHz 9 dBd Directional Antenna with Mounting Hardware
Pricing
- Model:
- 10530
- Item Number:
- 10530
- Warranty:
- 1 year
- Lead time:
- 21 days
Overview
The 10530 includes a mount/U-bolt assembly that allows the antenna to be secured to a mast, crossarm, or user-supplied pole with a 3.8 cm (1.5 in.) outer diameter.
Technical Description
The 10530 is a high-gain, Yagi antenna for our digital cellular modems. Its narrow beam width requires precise aiming at the service provider's antenna. The antenna typically attaches to a RavenXT-series modem via the 21847 12-foot cable or the COAXSMA-L cable (see Ordering Info and Compatibility tabs).
Yagi antennas are a type of directional antenna that consists of a rod pointed in the direction of the transmission/reception and several cross bars oriented at a 90° angle to the main rod. The rods' length and spacing are optimized to transmit and receive transmission in the desired frequency band.
Specifications
- Antenna Type
- Yagi (directional), outdoor antenna with mounting hardware
- Gain
- 9 dBd
- Frequency Band Supported
- 800 MHz
- Connector
- Type N female
- Dimensions
- 84.3 x 22.9 x 5.8 cm
(33.2 x 9 x 2.3 in.)
- Weight
- 1.1 kg
(2.4 lb)
