RAVEN110
RAVEN110
End of lifeGPRS/EDGE Cellular Digital Modem
Pricing
- Model:
- RAVEN110
- Item Number:
- RAVEN110
- Lead time:
- 21 days
Overview

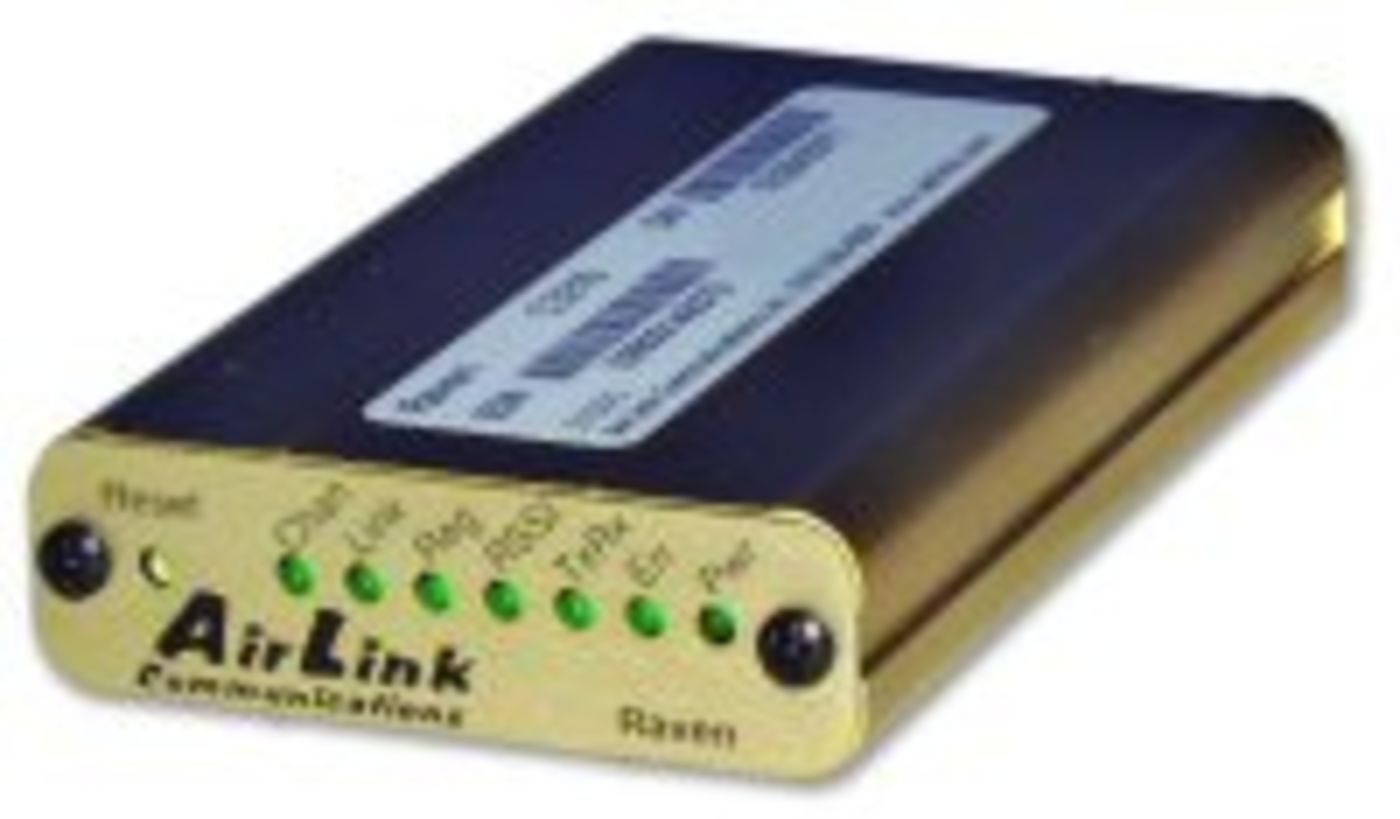

The Raven110 was an Airlink product intended for AT&T digital cellular networks. This full-duplex modem transmitted data to the local cellular tower using either a GPRS or EDGE network. The data was sent from the tower to the base station computer via the Internet. Communicating via Internet provided faster communication rates and eliminates dialing delays and long distance fees.
Specifications
- Description
- Quadband EDGE (MS class 10) with dualband GPRS (MS-12) fallback
- EDGE Quadband
- 1900/850 MHz and 1800/900 MHz
- GPRS Dualband
- 1900/850 MHz
- Transmit Frequency
- 1850 to 1910 MHz and 824 to 849 MHz
- Transmit Power
- 1.0 W for 1900 MHz
- Transmit Power
- 2.0 W for 850 MHz
- Receiver Frequency
- 1930 to 1990 MHz and 869 to 894 MHz
- EDGE Throughput
- Up to 384 kbps
- GPRS Throughput
- Up to 70 kbp
- RS-232 Data Rates
- 1200 bps to 115.2 kbps
- Operating Temperature Range
- -30° to +70°C
(10% duty cycle limit above 60°C)
- Serial Interface
- RS-232
Accessories
(13)14453
800 MHz, 0 dBd 1/2 Wave Whip Dipole Cellular Antenna with TNC Pin (Male)
End of life10530
800 MHz 9 dBd Directional Antenna with Mounting Hardware
End of life18285
2 dBd Multi-Band Omnidirectional Antenna with Mounting Hardware
End of life20679
800 MHz/0 dBd and 1.9 GHz/3 dBd Omnidirectional Cell Antenna with Mounting Hardware
Retired31128
8 dBd Yagi Wideband Antenna with Mounting Hardware
Retired14468
Antenna Cable, Type N Pin (Male) to TNC Pin (Male), 10 ft
RetiredCM230
Adjustable Inclination Mounting Kit
Orderable21212
Black Cold Shrink Tape
Orderable18663
Null Modem Cable, 9-Pin PIn (Male) to 9-Pin Pin (Male)
OrderableSC932A
RS-232 DCE Interface, CS I/O to 9-Pin
OrderableSC105
CS I/O to 9-Pin RS-232 DCE Synchronous Interface
Orderable14394
Mounting Kit for Redwing and Raven Modems
Retired16987
Peripheral Mounting Kit
Orderable
Ships With
(2)- CD of Modem Software and Documentation from Airlink
- Power cable from original mfg
