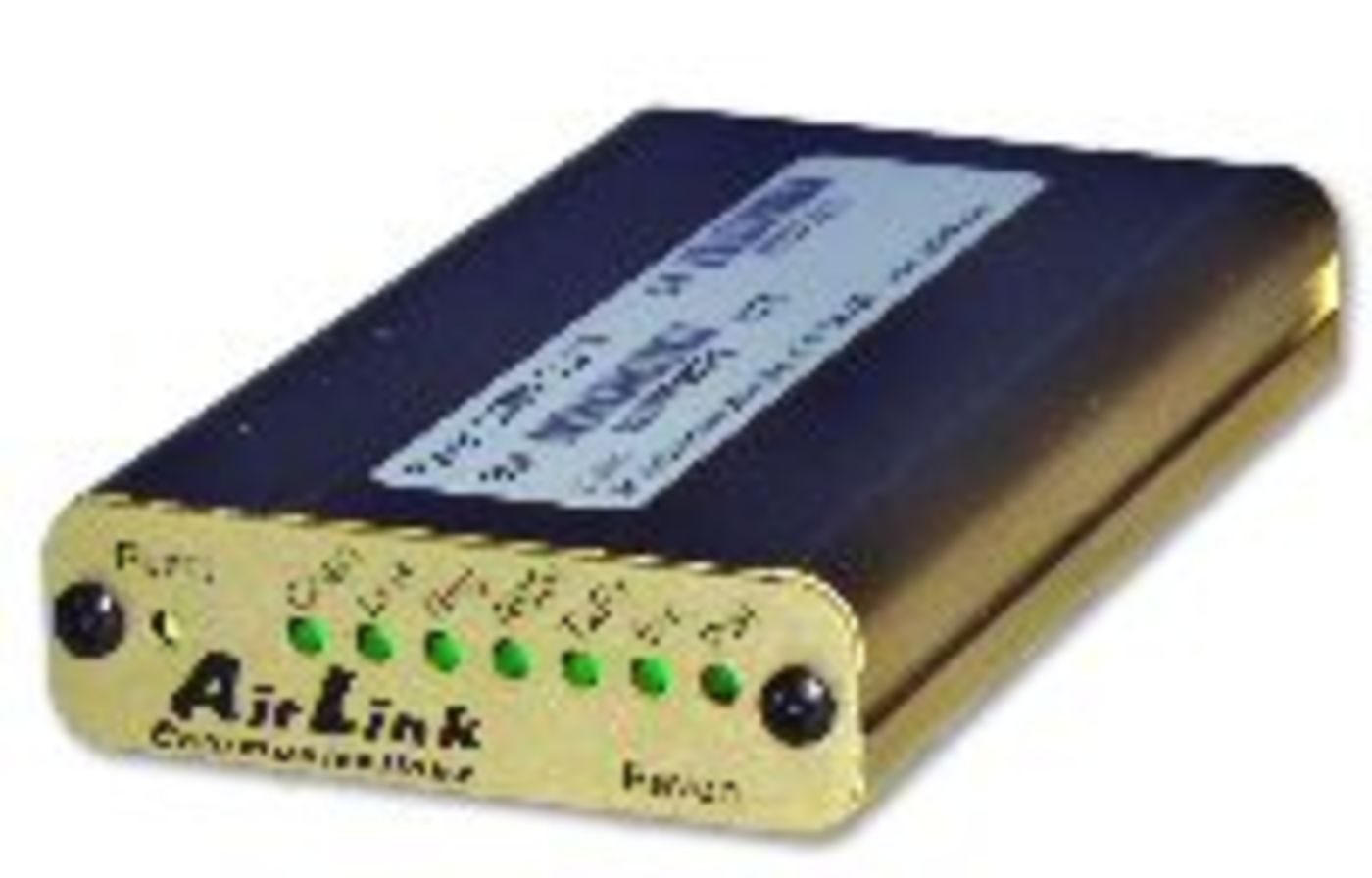

RAVEN100

Name: RAVEN100
Brand: Campbell Scientific
SKU: RAVEN100
Availability: Discontinued

CDMA Airlink Cellular Modem for Verizon

RAVEN100

End of life

CDMA Airlink Cellular Modem for Verizon

Pricing

Model:: RAVEN100
Item Number:: RAVEN100
Lead time:: 21 days

Overview

The Raven100 was an Airlink CDMA modem configured for Verizon cellular networks. This full-duplex modem transmitted data to the local cellular tower using a CDMA network. The data was sent from the tower to the base station computer via the Internet. Communicating via Internet provided faster communication rates and eliminated dialing delays and long distance fees.

Specifications

Operating Humidity: 5% to 95%
(non-condensing)
Operating Temperature Range: -30° to +70°C
Typical Current Drain @ 12 Vdc: 40 mA dormant connection
(idle for 10 to 20 seconds)
Typical Current Drain @ 12 Vdc: 200 mA
(while receiving)
Typical Current Drain @ 12 Vdc: ~200 mA
(during transmission)
RF Output: 224 mW
(+23.5 dBm)
CDMA Modes Supported: CDMA2000 1X, IS-95B Circuit Switched CDMA, and SMS
Dual-band Support: 800 MHz cellular, 1.9 GHz PCS bands
Packet Mode (1xRTT) Data Rates: Up to 153.6 kbps (forward channel), 76.8 kbps (reverse channel)
RS-232 Data Rates: 1200 bps to 115.2 kbps
Input Voltage: 10 to 28 Vdc
Input Current: 40 to 200 mA
Serial Protocols: AT Commands, PPP, SLIP, UDP, TCP
Serial Interface: RS-232, DB-9F
RF Antenna Connector: 50 ohm TNC
Status LEDs: Power, Channel Acquired, Link Status, Network Registration, RSSI, Transmit/Receive, Block Errors
Dimensions: 7.6 x 2.5 x 13 cm
(3 x 1 x 5.1 in.)
Dimensions: 7.6 x 2.5 x 14 cm
(3 x 1 x 5.8 in.) with connectors
Weight: 270 g
(9.5 oz)
