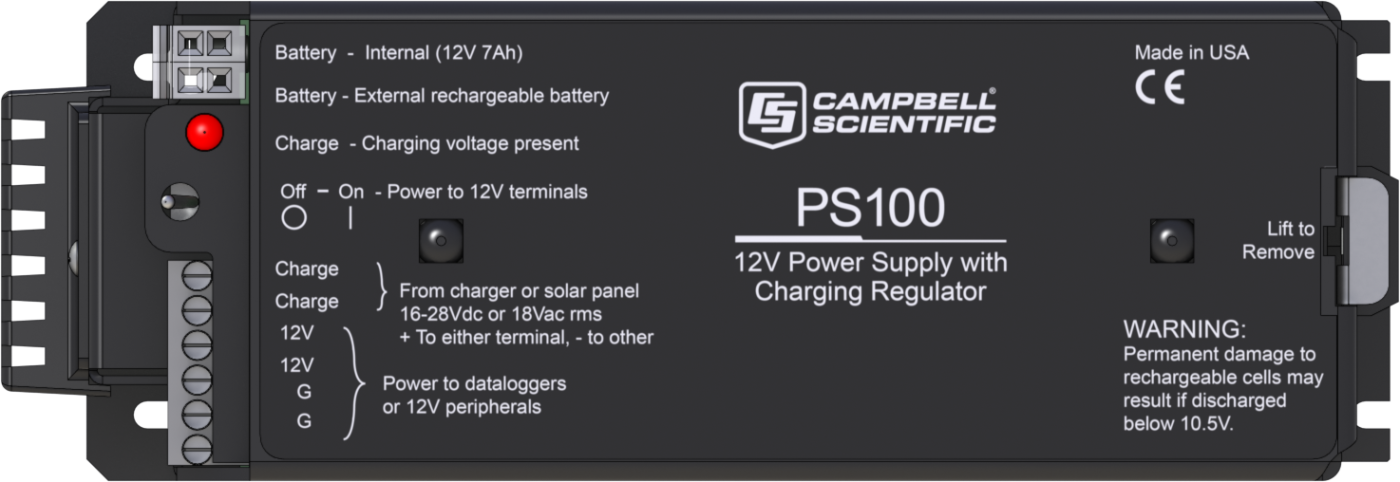

PS100
PS100
End of lifeConfigurable12 V Power Supply with Charging Regulator and 7 Ah Rechargeable Battery
Pricing
- Model:
- PS100
- Item Number:
- 17252
- Warranty:
- 1 year
- Lead time:
- 21 days
Overview
The PS100 provides a 12-Vdc, 7-Ah rechargeable power supply for the CR500, CR510, CR800, CR850, CR10, CR10X, and CR1000 dataloggers and peripherals. The rechargeable battery can be trickle-charged from ac power (requires optional wall charger) or from an external solar panel. The user can add an external rechargeable battery.
Technical Description
The PS100 can also be used as a separate auxiliary 12-V power supply to power remotely located sensors or peripherals, such as a multiplexer located at a distance from the data logger enclosure. However, to avoid errors in analog measurements and ground loops, the power supplies must share a common ground.
Specifications
- input Voltage (CHG Terminals)
- 15 to 28 Vdc or 18 Vac RMS
- Charging Output Voltage
- Temperature compensated float charge
(for 12 V battery)
- Output Limit (12V and G Terminals)
- 3.0 A
(temperature dependent)
- Charging Current Limit
- 1.2 A
(typical)
- Power Out (+12 Terminals) Voltage
- Unregulated 12 V
(from battery)
- Nominal Rating
- 7 Ah
- Dimensions
- 10.5 x 19.3 x 7.1 cm
(4.1 x 7.6 x 2.8 in.) including mounts and connectors
- Weight
- 3.1 kg
(6.9 lb)
- Battery Weight
- 2.7 kg
(5.9 lb)
Quiescent Current
- Charge Source Present
- 3 to 5 mA
- No Charge Source Present
- 0 mA
Accessories
(11)6186
External Battery Cable for CH150, CH200, PS150, or PS200
RetiredSP10
10 W Solar Panel
OrderableSP20
20 W Solar Panel
OrderableSP10-PW
10 W Solar Panel for PWENC
End of lifeSP20-PW
20 W Solar Panel for PWENC
End of lifeA100
Null Modem Adapter for Rechargeable Power Supplies
OrderableA105
12 V Terminal Expansion Adapter for PS1X0/200 or CH1X0/200
Orderable15988
Wall Charger
Orderable29796
1.67 A 24 V Power Supply
Retired22110
1.67 A 24 V Power Supply with Connector for PWENC Enclosures
Retired39177
1.67 A 24 Vdc Power Supply
Orderable
