CRS451V

Name: CRS451V
Brand: Campbell Scientific
SKU: 45037
Availability: InStock

Stainless-Steel Vented Stand-Alone Pressure Transducer

CRS451V

OrderableConfigurableGSA

Stainless-Steel Vented Stand-Alone Pressure Transducer

Stainless-steel recording pressure transducer with a vented cable so barometric pressure corrections aren't needed.

Pricing

Configuration

Sensor Higher 0.05% Accuracy 0-14.5psig (100kPa) –SN w/Standard Nose Cone(0
Sensor-HA Higher 0.05% Accuracy-145 0-145psig (1000kPa) w/Standard Nose Cone(0
Sensor Higher 0.05% Accuracy 0-72.5psig (500kPa) w/Standard Nose Cone(0
Sensor Higher 0.05% Accuracy 0-29psig (200kPa) –SN w/Standard Nose Cone(0
Sensor Standard 0.1% Accuracy 0-145psig (1000kPa) w/Standard Nose Cone(0
Sensor Higher 0.05% Accuracy 0-7.25psig (50kPa) w/Standard Nose Cone(0
Sensor Standard 0.1% Accuracy 0-29psig (200kPa) w/Standard Nose Cone(0
Sensor Standard 0.1% Accuracy 0-14.5psig (100kPa) w/Standard Nose Cone(0
Sensor Standard 0.1% Accuracy 0-72.5psig (500kPa) w/Standard Nose Cone(0
Sensor Standard 0.1% Accuracy 0-2.9psig (20kPa) w/Standard Nose Cone(0

Qty

Select a configuration to add to your quote

Model:: CRS451V
Item Number:: 45037
Warranty:: 1 year
Lead time:: 30 days

Overview

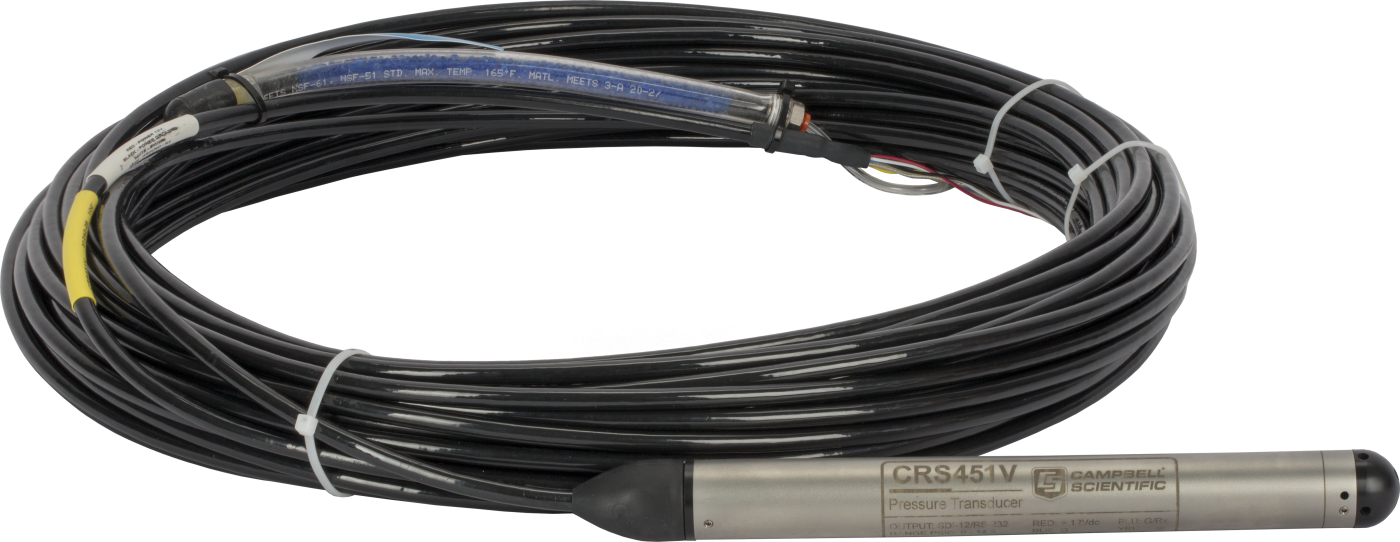

CRS451V Water Level Recording Vented Sensor, Stainless Steel**

The CRS451V consists of a submersible water-level and water-temperature sensor with its own time clock and memory to store the collected data—in a compact stainless-steel case. This data logging capability frees users to place the sensor in remote sites and let it collect data for long periods. HydroSci software is included and elegantly supports test setup, data retrieval, and data display. Long battery life and rugged construction mean you can trust the CRS451V to collect important data. Low cost and ease of use make it a good choice in a variety of applications. The CRS456V is the same as this, but with a titanium case.

Key Advantages

Pressure Transducer Combined with a Recorder
High resolution and accuracy

Technical Description

The CRS451V has several pressure range options.

HydroSci software is available for download. This software simplifies the process of configuring the CRS451V. Users can configure the CRS451V to monitor surface water, ground water, or a standard pump test.

HydroSci software will display the data in tabular or graphical formats.

Benefits

Sensors and data-collection features in one instrument case
Rugged stainless-steel case protects piezoresistive sensor
Quality construction ensures product reliability
Fully temperature-compensated
Fast scan rate
Large data-storage capacity
Long battery life
Easy-to-use software

Specifications

Venting: Vented
Measurement Time: < 1.0 s
Input Voltage: 6 to 16 Vdc
Output Options: micro USB
Internal Data Collection Memory: 4 MB
Logging/Scanning Modes: Standard, Delta, Wave, Logarithmic
Resolution: 0.0035% FS
Dry Storage Temperature Range: -10° to +80°C

WARNING: Sensor could be damaged if encased in frozen ice.
Operating Temperature Range: 0° to 60°C

WARNING: Sensor could be damaged if encased in frozen ice.
Overpressure: 2 x pressure range
Power Requirements: Internal user-replaceable lithium battery
Battery Life: 5 years
(when logging interval is once per hour; approximately 40,000 measurements)
Body Material: 316L stainless steel
Water-Level Accuracy: ±0.1% full-scale-range TEB

Includes the combined errors due to nonlinearity, hysteresis, nonrepeatability, and thermal effects over the compensated temperature range, per ISA S51.1.
Temperature Accuracy: ±0.2°C
Ingress Protection: Exceeds IP68
Diameter: 2.22 cm
(0.875 in.)
Length: 22.23 cm
(8.75 in.)
Weight: 230 g
(0.51 lb)
