25431
Split Mesh Cable Grip, 0.180 to 0.250
25431
OrderableSplit Mesh Cable Grip, 0.180 to 0.250
Overview
CABLE ACC Split Mesh Support Grip 0.457-0.0635cm (0.180-0.250 Inch)

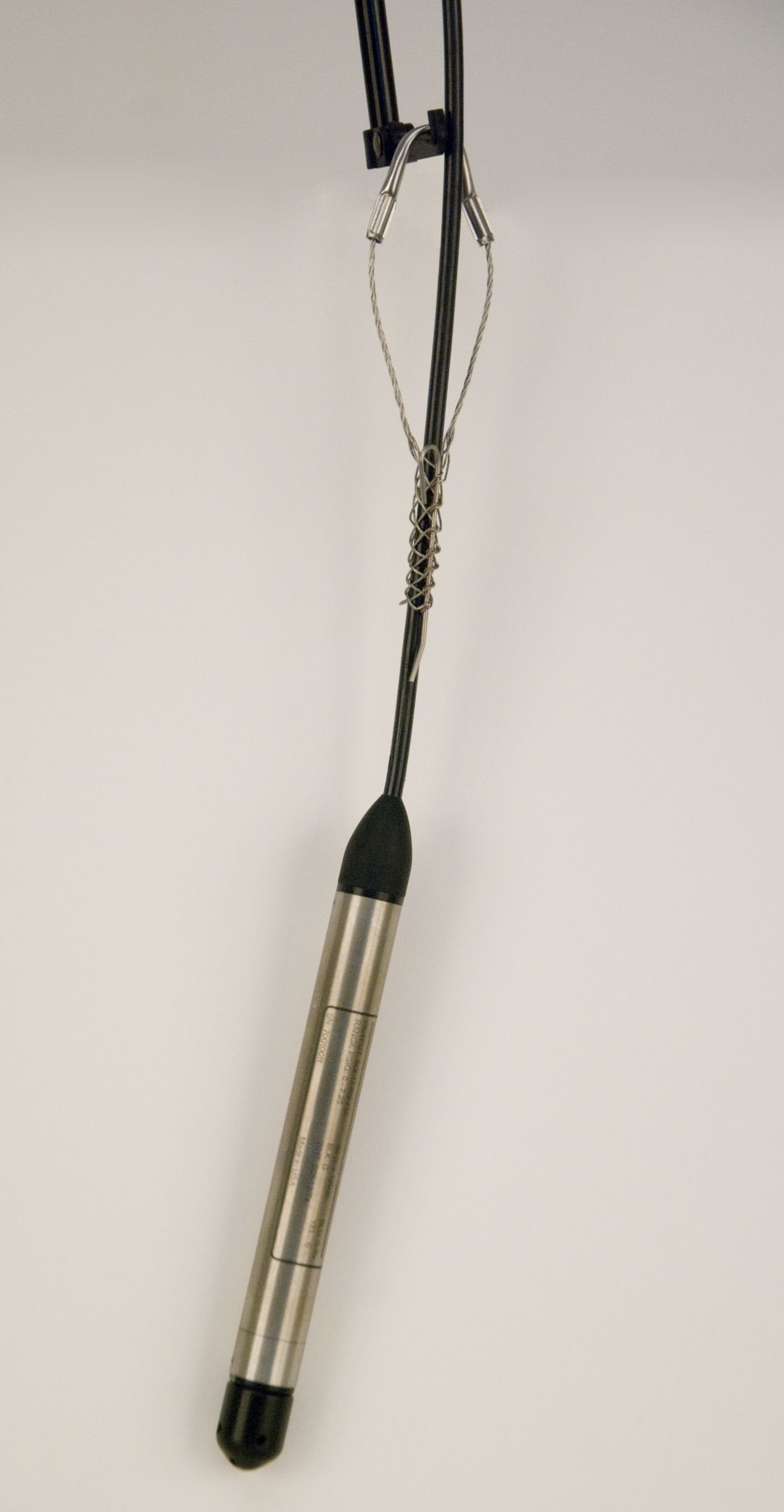

The 25431 is a split mesh cable grip for our pressure transducers. This split mesh grip is recommended for use in wells to center the cable and to provide a method of suspending the cable—reducing cable stretch.
Note: To provide strain relief, locate the cable grip at the point along the cable closest to where it will be suspended.
Specifications
- Breaking Strength
- ~136.08 kg
(~300 lb)
- Cable Outer Diameters
- Accepts 4.57 mm (0.18 in.) to 6.35 mm (0.25 in.).
- Dimensions
- 13.97 x 5.08 x 0.64 cm
(5.5 x 2.0 x 0.25 in.)
- Weight
- 13.61 g
(0.03 lb)
