A150
A150
Limited availabilityConfigurableGSASingle Sensor Terminal Case, Vented with Desiccant
Pricing
Configuration
Sign in for option pricing- w/A150-3m
- wA150-30m
Select a configuration to add to your quote
- Model:
- A150
- Item Number:
- 45020
- Warranty:
- 1 year
- Lead time:
- 14 days
Overview

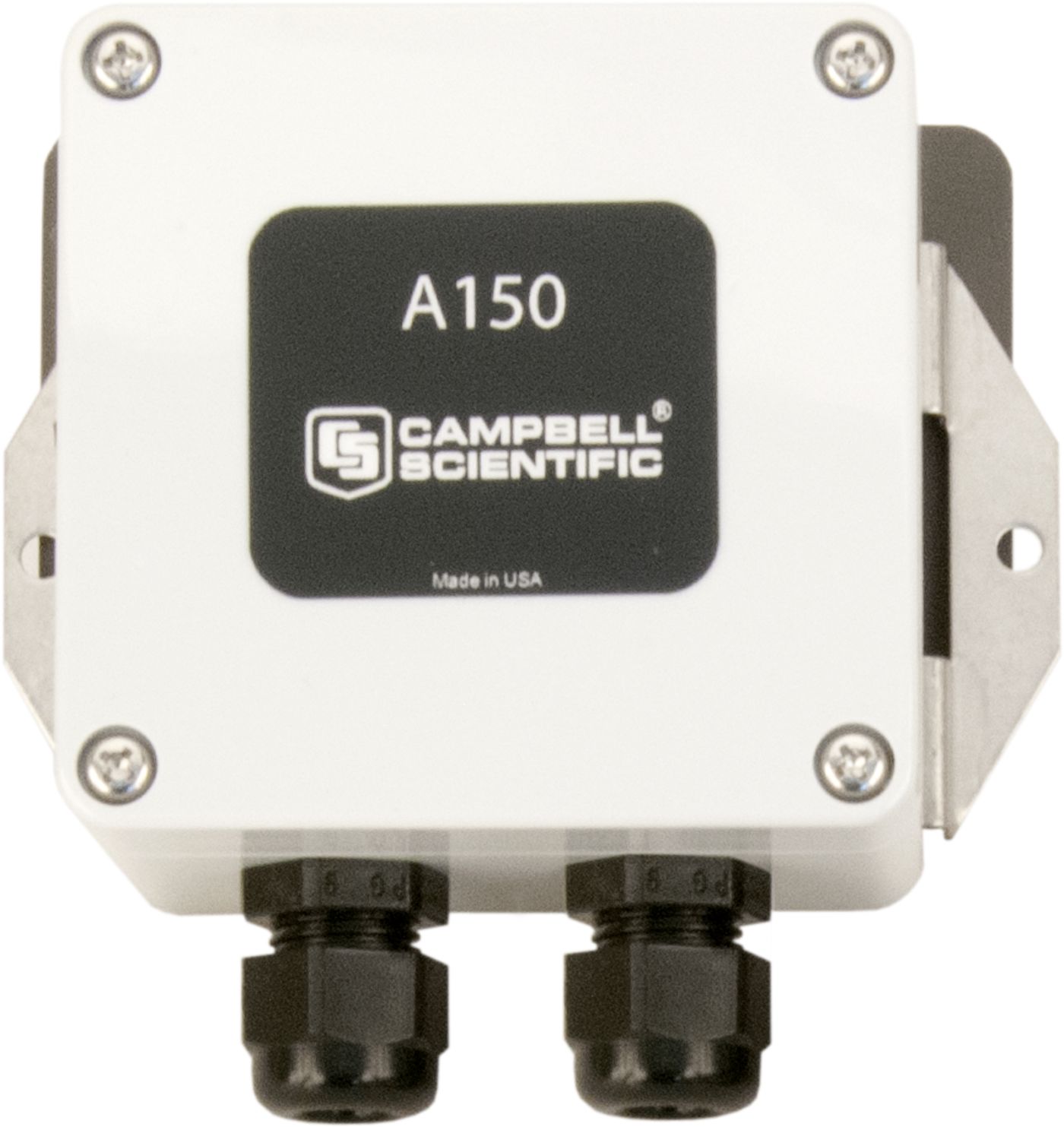

The A150 desiccated case is a small, self-contained junction box that allows a sensor to be connected to a continuation cable, a prewired-enclosure connector, or a CWS900 wireless-sensor connector.
Technical Description
The A150 consists of a terminal block mounted inside of junction box. A small vent is located on the bottom of the box. The vent includes a filter, which prevents moisture and contaminants from entering the unit while equalizing the interior air pressure to the current atmospheric pressure.
The A150 provides a mounting bracket for fastening it to an enclosure backplate. Alternatively a Velcro strap is included for mounting the A150 onto a user-supplied structure.
Benefits
- Enables our CS450 and CS455 pressure transducers or other sensors that have a vented cable to be used in a wireless sensor network
Specifications
- Temperature Range
- -30º to +65ºC
- Internal Protection Rating
- IP 66
(International Standard IEC 60529)
- Terminal Block Wire Gages
- 28 to 12 AWG
- Compression Fitting
- Fits sensor cables with 4.6 to 7.9 mm (0.181 to 0.312 in.) diameters
- Dimensions
- 8.0 x 8.2 x 5.5 cm
(3.15 x 3.228 x 2.171 in.)
