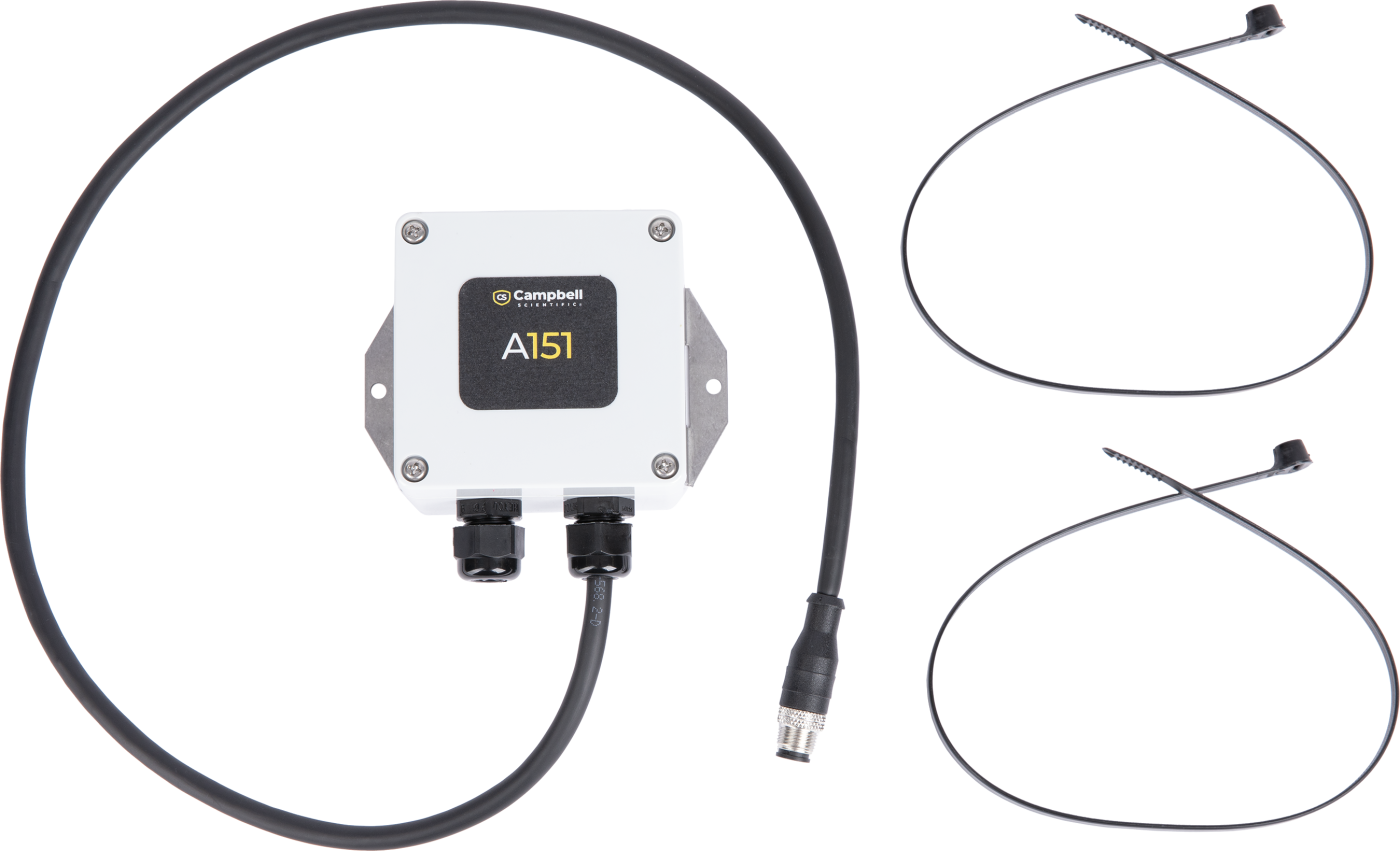

A151

The A151 is a vented junction box with terminal blocks to connect sensors to an M12 eight-pin connector. It has accessories to allow the use of various lengths of cable and termination options.

The A151 allows sensors such as pressure transducers to be used without the need to run a ventilation tube all the way to a data logger enclosure. The sensor cable with a ventilation tube terminates at the A151, which contains a small vent and desiccant, while a second cable without a ventilation tube completes the connection to the Aspen 10 or other data logger.

A mounting bracket is attached to the bottom of the chassis. The bracket is used to fasten the A151 inside an enclosure. Alternatively, a zip tie can be used to fasten the A151 to another location of the user’s choosing.
