End of lifeSurge Suppressor Kit for RF450 Radio or RavenXT-Series Modem
Pricing
- Model:
- 19533
- Item Number:
- 19533
- Warranty:
- 1 year
- Lead time:
- 7 days
Overview
The 19533 surge protection kit is for radios with SMA antenna connectors, such as our cellular modems and RF450 spread-spectrum radios. It contains a PolyPhaser surge arrester (pn 14445), 18 in. coaxial cable, ground wire, and mounting hardware. It is typically used when antennas are mounted outdoors and/or are attached with a long coaxial cable. The outdoor antenna connects with the surge suppressor via the COAXNTN-L cable (purchased separately).
Technical Description

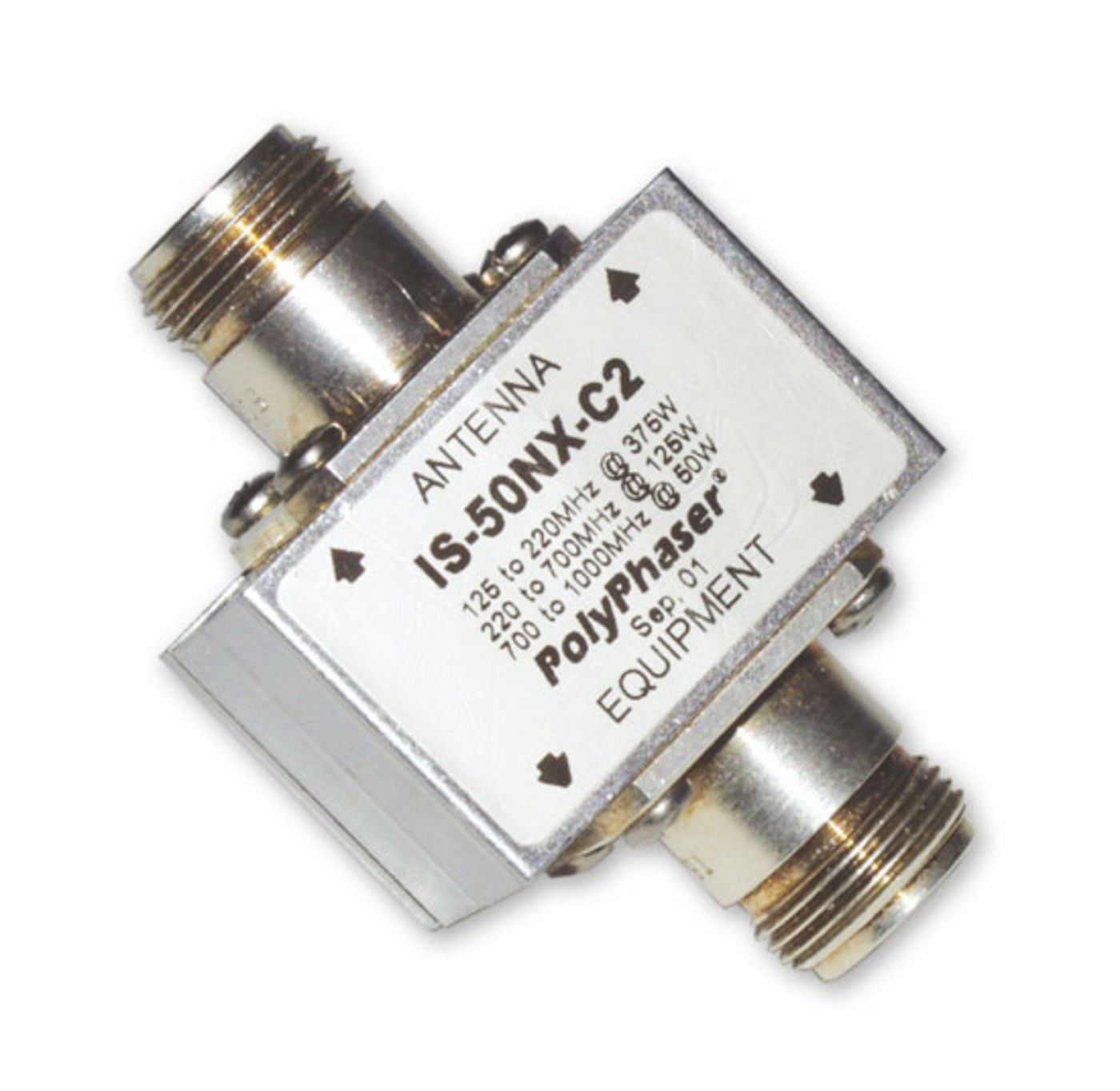

The 19533 PolyPhaser is a dc blocking, general coverage arrester with Type N socket (female) connections on both sides. The kit's 18 in. coaxial cable attaches the radio to the equipment side of the surge protector. The cable is an LMR195 low-loss cable with a Type N pin (male) connector on one end and an SMA pin (male) connector on the other end. The surge suppressor attaches to an outdoor antenna via a COAXNTN-L cable (purchased separately). This kit is typically used to protect cellular modems and RF450 spread-spectrum radios from electrical transients conducted through the antenna cable.
Specifications
- -NOTE-
- The 19533 Surge Suppressor Kit has components that have their own specifications.
To review these specifications, refer to the appropriate products below: 14445 Surge Suppressor COAXSMA LMR195 Antenna Cable 4335 10 AWG Green Copper Stranded Wire Screws and grommets that secure the ground wire and surge suppressor to an enclosure backplate
Ships With
(1)- Orderable
