ENC8/10

Weather-Resistant Enclosure, 8 x 10 inches
ENC8/10

ENC8/10

OrderableConfigurable

Weather-Resistant Enclosure, 8 x 10 inches

Pricing

Sign in for pricing

Configuration

Sign in for option pricing

Select a configuration to add to your quote

Model:
ENC8/10
Item Number:
45235
Warranty:
1 year
Lead time:
14 days

Overview

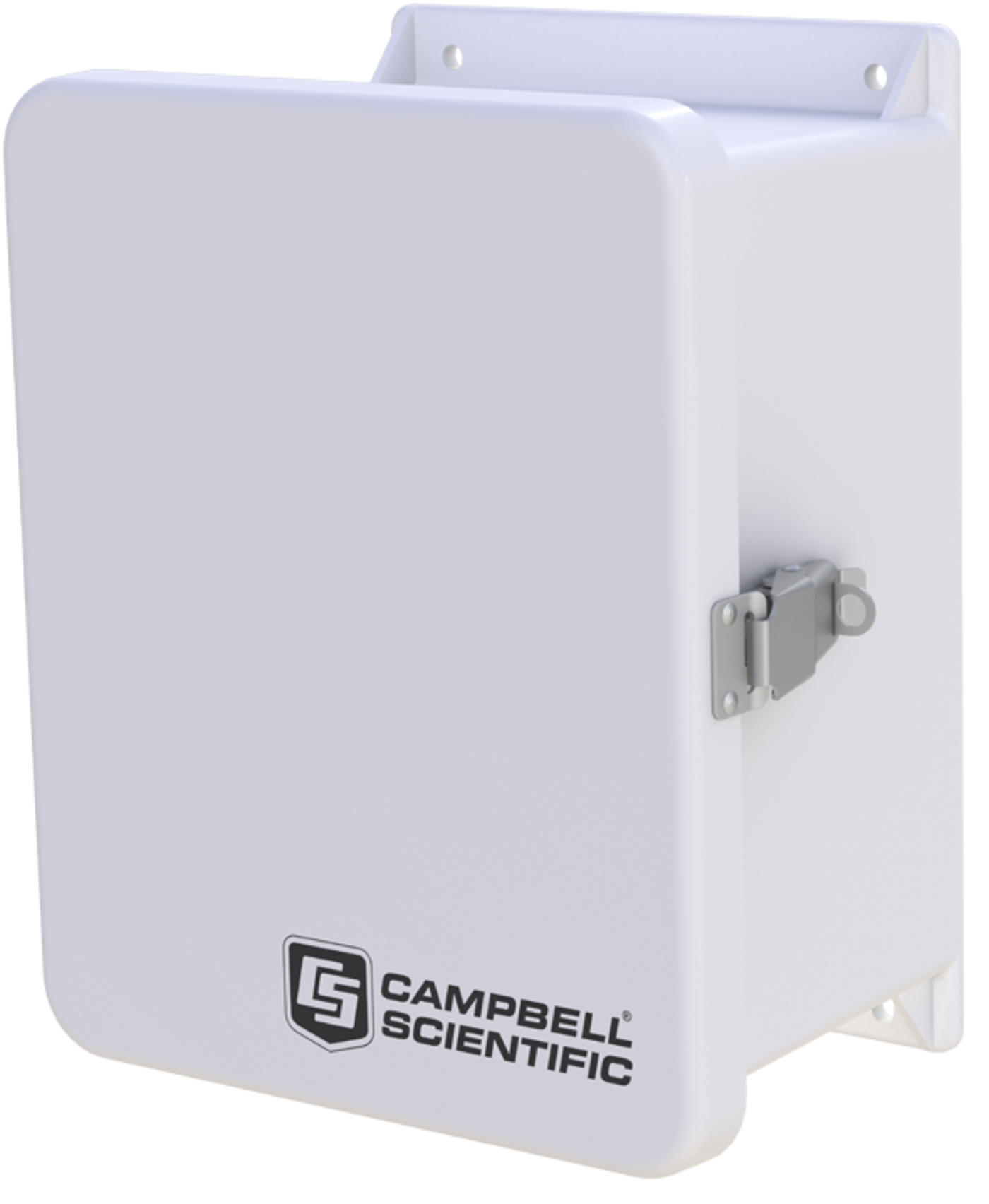

Weather-Resistant 8 x 10 Inch Enclosure

The ENC8/10 is a weather-resistant enclosure that is 8 inches wide and 10 inches tall. It is the smallest of our standard enclosures, yet it is extra deep with a depth of 6 inches. This enclosure is suitable for use with CR300-series or CR200X-series dataloggers. The ENC8/10 can house one of these data loggers and a small power supply. Alternatively, this enclosure can be used to mount a communication or measurement peripheral without a data logger.

Please note that a grounding wire is not included with the enclosure.

Technical Description

The ENC8/10's backplate is prepunched with half-inch-on-center holes.

Specifications

Color
White

(Reflects solar radiation, reducing temperature gradients inside the enclosure without using a separate radiation shield.)

Enclosure Classification
NEMA 4X

(before being modified for cable entry, conduit, or ground lug)

Construction
Fiberglass-reinforced polyester enclosure with door gasket, external grounding lug, stainless-steel hinge, and lockable hasps
Number of Cable-Entry Seals
6 small
Dimensions
24,8 x 19.7 x 15.9 cm

(9.7 x 7.7 x 6.3 in.) internal

Dimensions
30.4 x 23.9 x 16.5 cm

(12.0 x 9.4 x 6.5 in.) external

Weight
2.36 kg

(5.2 lb)
