RetiredCD295 Display Installed in Enclosure Lid
Pricing
- Model:
- 18132
- Item Number:
- 18132
- Warranty:
- 1 year
- Lead time:
- 7 days
Overview

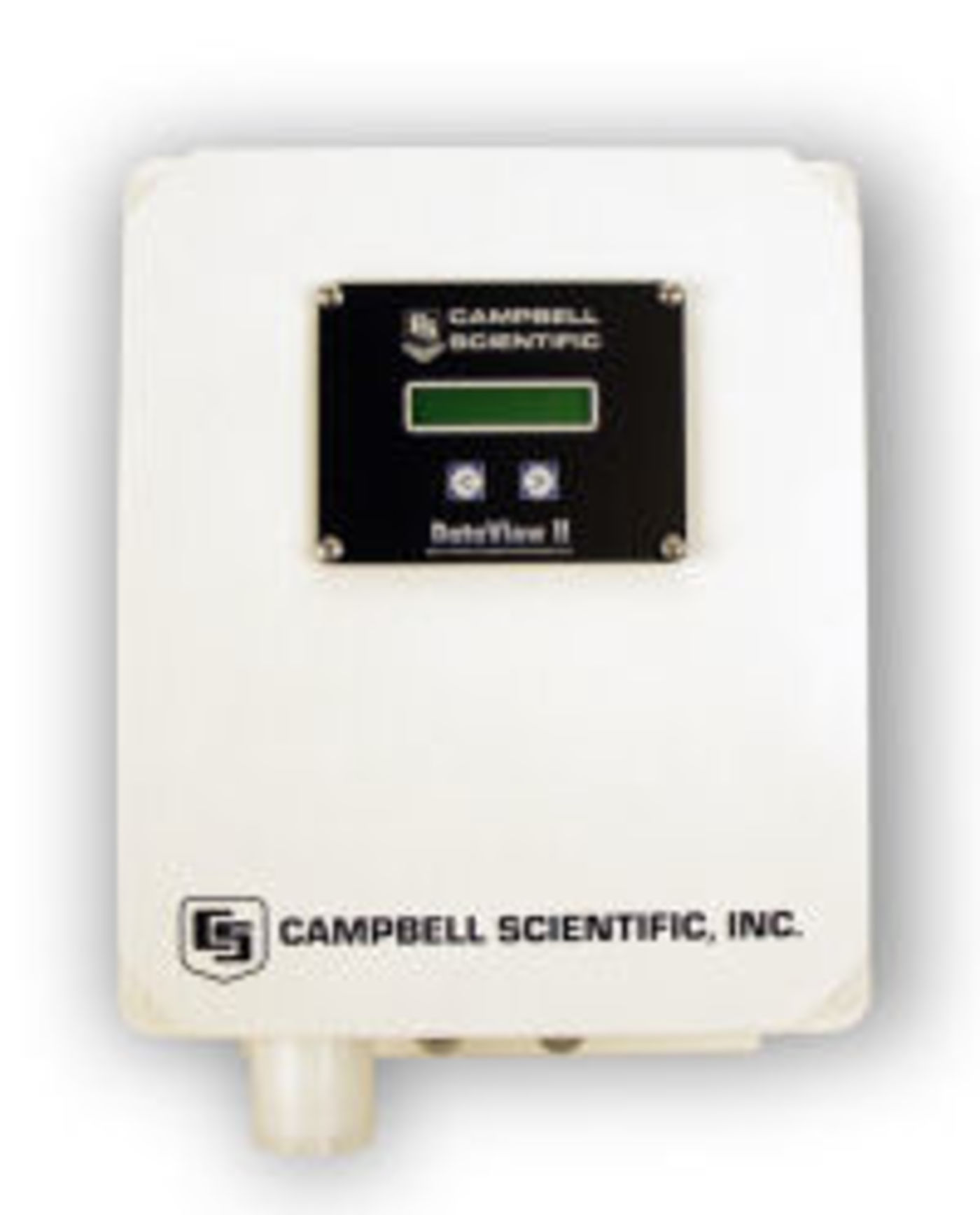

The 18132 is a CD295 display factory-installed in the lid of your enclosure. When you purchase an enclosure and the 18132, Campbell Scientific will install the CD295 in the enclosure lid before the enclosure leaves the factory. The price includes the CD295 DataView II display.
Technical Description
The 18132 must be ordered at the same time as a standard or prewired enclosure. When the 18132 is ordered, Campbell Scientific will install a CD295 DataView II Display in the enclosure lid before the enclosure leaves the factory. The CD295 is a two-line, 32-character LCD that can display real-time data from a PakBus data logger (e.g., CR200X, CR800, CR1000, CR3000). Mounting the CD295 in the enclosure lid allows data to be viewed without opening the enclosure.
Version 1 of the CD295 operating system (OS) and PC295 software supported only the CR200(X)-series dataloggers. Version 2 of the CD295 OS and PC295 added support for the CR1000, CR800, CR850 and CR3000 dataloggers. To use the new capabilities, customers with version 1 need to upgrade both their CD295 OS and PC295 software, which is provided on the downloads page.
Benefits
- Weather resistant to protect instruments
- View real-time data without opening enclosure
Specifications
- Power Requirements
- Powered from the data logger
- Relative Humidity
- IP65
(when using supplied sealant)
- Current Drain
- 1 mA
(asleep)
- Current Drain
- 3 mA
(active without backlight)
- Current Drain
- 30 mA
(active with backlight)
- Weight
- 435.6 g
(1.0 lb)
Ships With
(6)- Screw, nut, washer, & rubber gaskets from original mfgQty 4
- Stainless Steel Cover Kit from original mfg
- CD Containing PC295 Software & PDFs of Manual
- Drilling/Mounting Template
- Power Cable from original mfg
- Programming cable from original mfg
