CS210
Enclosure Humidity Sensor
CS210
RetiredEnclosure Humidity Sensor
Pricing
- Model:
- CS210
- Item Number:
- 10162
- Warranty:
- 1 year
Overview

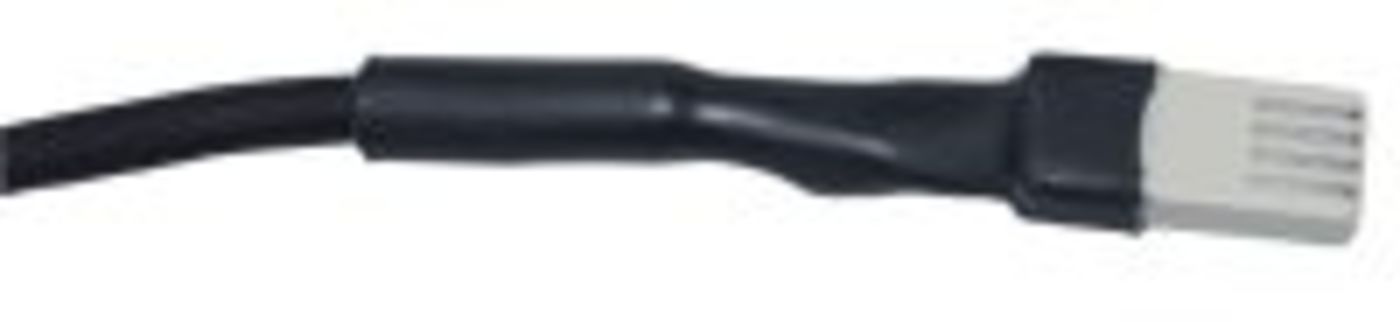

CS210 Enclosure Humidity Sensor 27cm (11 Inch) Cable (0 to +50C)
The CS210 enclosure humidity sensor measures relative humidity levels inside environmental enclosures. The sensor is housed inside the enclosure. A Campbell Scientific data logger measures this sensor and stores its data.
Key Advantages
Remote Monitor
Ensure ideal conditions in enclosures
Ensure ideal conditions in enclosures
Technical Description
When CS210's measurements indicates that the RH level inside the enclosure is 40% or more, the desiccant should be replaced with another packet.
By having the data logger measure the sensor, the measured values can be incorporated into the transmitted data stream of remotely located data loggers. The probe has an 11-in. (28 cm) cable length, which should be adequate to place the probe near the enclosure conduits.
Benefits
- Allows enclosure RH to be monitored remotely
- Used to schedule desiccant replacement
Specifications
- Sensor
- Elan HM2000 series precision bulk-polymer
- Relative Humidity Measurement Range
- 0 to 100%
(non-condensing)
- RH Output Signal Range
- 0 to 1.0 Vdc
- Accuracy
- ±3% RH (10 to 90% RH)
(at 25°C)
- Typical Long-Term Stability
- Better than 3% RH per year
- Response Time
- 10 seconds for a 30% to 90% RH step change
(at 25°C, 90% response)
- Current Consumption
- < 0.5 mA
- Supply Voltage
- 5 ± 0.25 Vdc
- Settling Time
- 10 s
- Operating Temperature Range
- 0° to 50°C
- Cable Length
- 27.9 cm
(11 in.)
- Sensor Head Dimensions
- 2.5 x 1.3 x 0.8 cm
(1.0 x 0.5 x 0.3 in.)
- Weight
- 9 g
(0.3 oz)
