Retired5 W Solar Panel Installed in ENC8/10 Enclosure Lid (enclosure sold separately)
Pricing
- Model:
- 32788
- Item Number:
- 32788
- Warranty:
- 1 Year
Overview

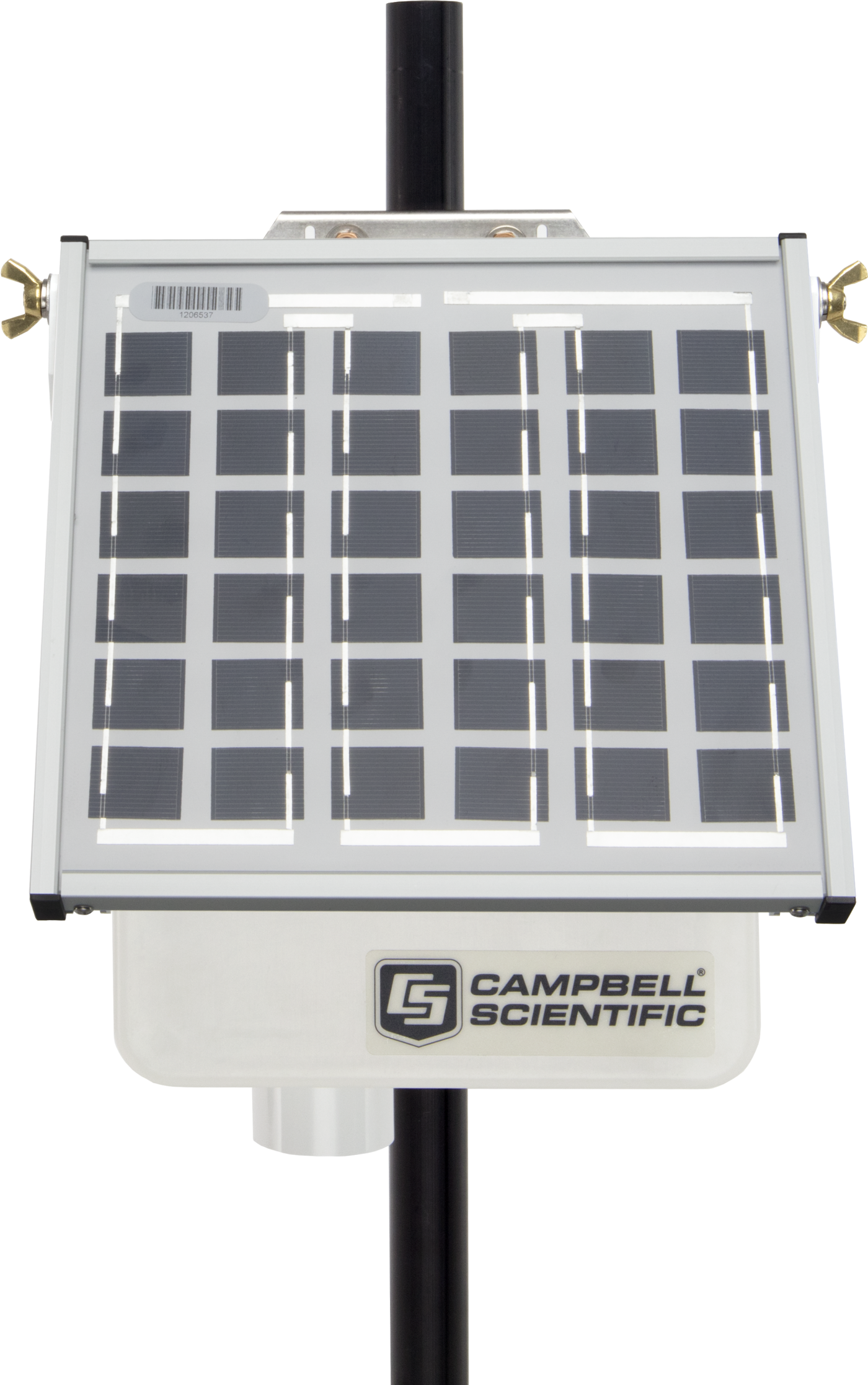

When you purchase the 32788, you are ordering a 5 W solar panel factory-installed in the lid of an ENC8/10 enclosure. The 32788 must be ordered at the same time as the ENC8/10. When you purchase the ENC8/10 and the 32788, Campbell Scientific will install the 32788 in the enclosure lid before the enclosure leaves the factory.
Note: The enclosure is not included with the 32788 and must be ordered separately.
The cable for the solar panel is routed through a cable-entry seal that's been added to the lid of the enclosure. The 32788 includes an adjustable bracket that allows the solar panel to be placed at the optimal angle for receiving maximum insolation.
Key Advantages
Specifications
- Maximum Power
- 4.5 W
- Current at Peak
- 0.27 A
- Voltage at Peak
- 16.5 V
- Cable Termination
- Pigtails
- Cable Length
- 0.8 m
(2.5 ft)
- Dimensions
- 25.1 x 26.9 x 2.3 cm
(9.9 x 10.6 x 0.9 in.)
- Weight
- 0.9 kg
(2 lb)
